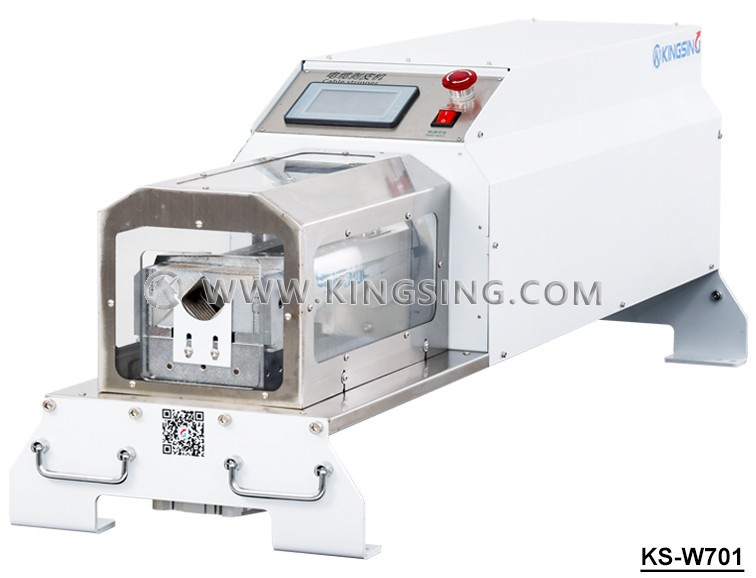

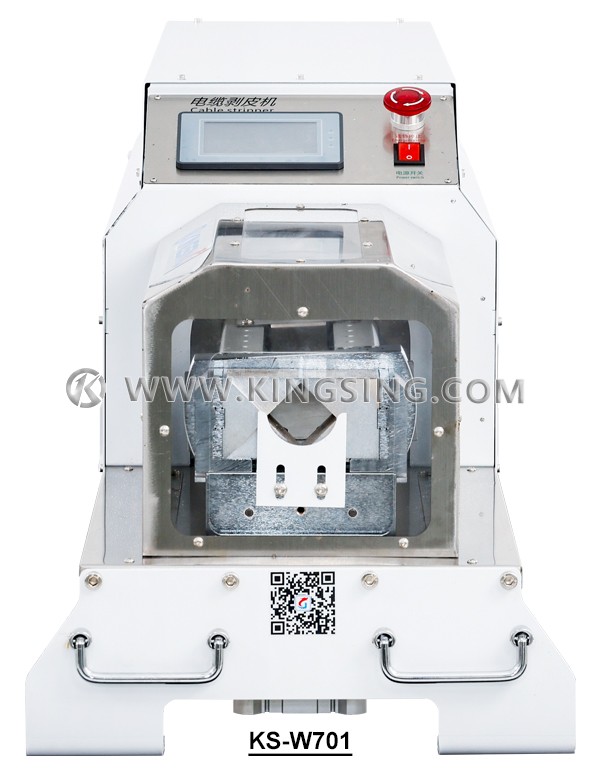

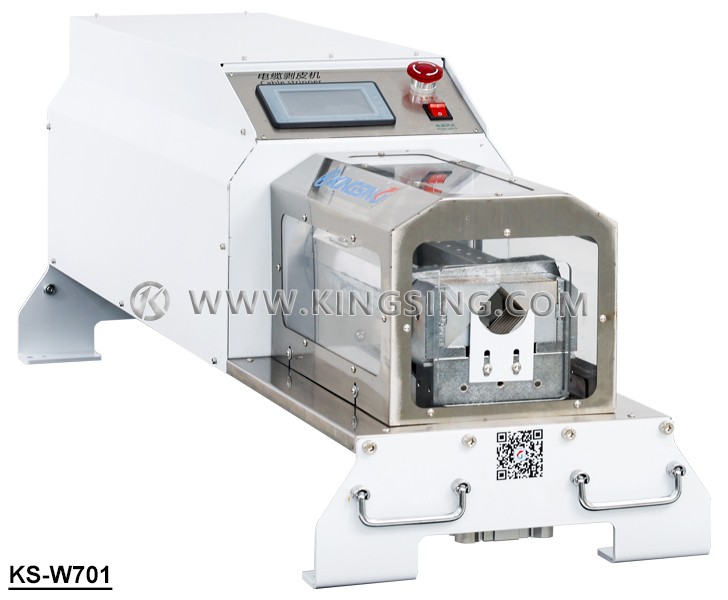

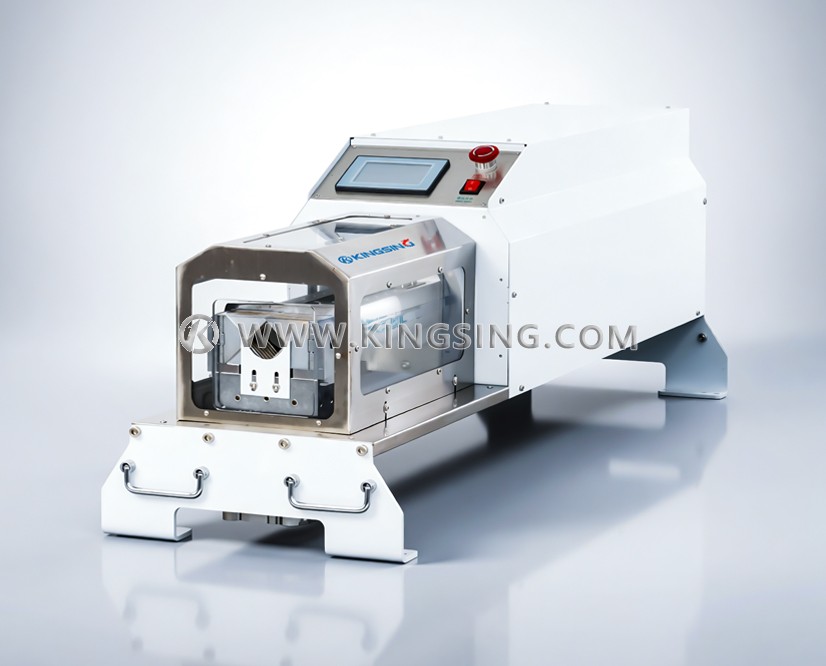

Rotary Blade Cable Stripping Machine

  • Model：KS-W70 Series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

Rotary Blade Cable Stripping Machine KS-W70 Series belongs to the latest generation of automatic cutting and stripping machines. This model is compelling in the extremely broad range of processing they cover. With the simple, flexible touch screen, affordable price and minimal material used during setup, KS-W70 Series has quickly become a very popular type of stripping machines worldwide.

Download: (1)
Model KS-W701 KS-W702 KS-W703
Stripping Diameter 10~45mm 10~20mm 4~20mm
Stroke 0~300mm 0~200mm 0~120mm
Stripping MethodRotary Blade
Control SystemPLC and Touch Screen
Program StorageMax.68 groups
Power Supply220V/60Hz      110V/60Hz
Air Supply0.5~0.7Mpa
Power Rating200W
Stripping Accuracy0.1mm×Stripping Length
Speed1200~3000 pcs/hour
Net. Weight110Kg
Dimension1400*330*420mm



Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
