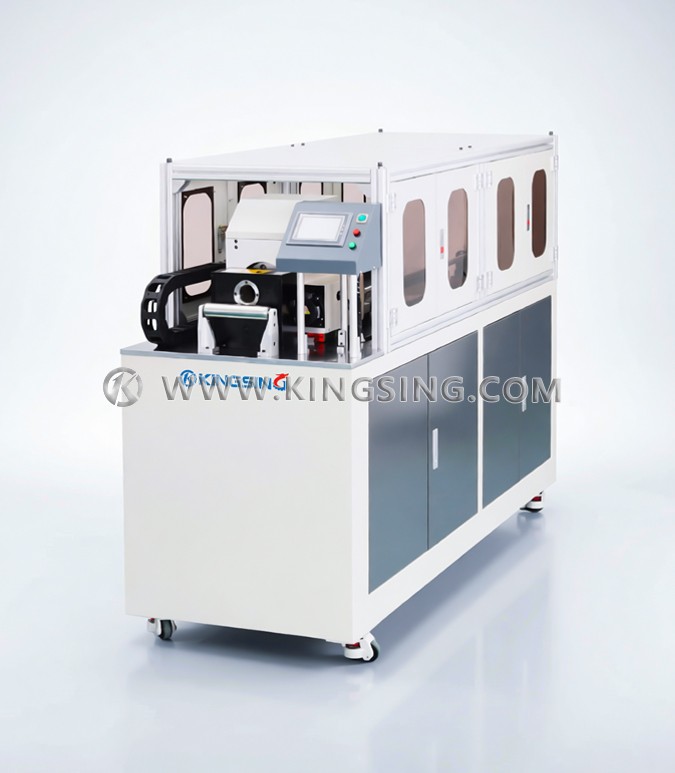

Rotary Cable Stripping Machine for Long Stripping Length

  • Model：KS-W665
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

The rotary blade large cable stripping machine is especailly designed for processing up to 40mm diameter cables, the Max. stripping length can reach one meter!


Download: (1) (2)

Wire Size: Φ20 ~ 40mm
Stripping Length: 10 ~ 1000mm
Air Pressure: 0.5 ~ 0.8Mpa
Power Supply: 220V 50/60Hz
Net. Weight:360Kg
Dimension:670×1650×1280mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
