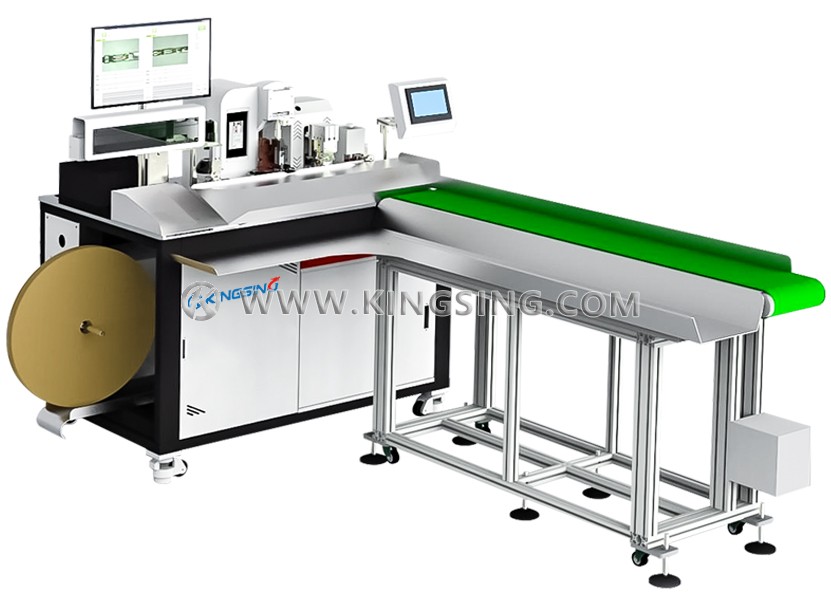

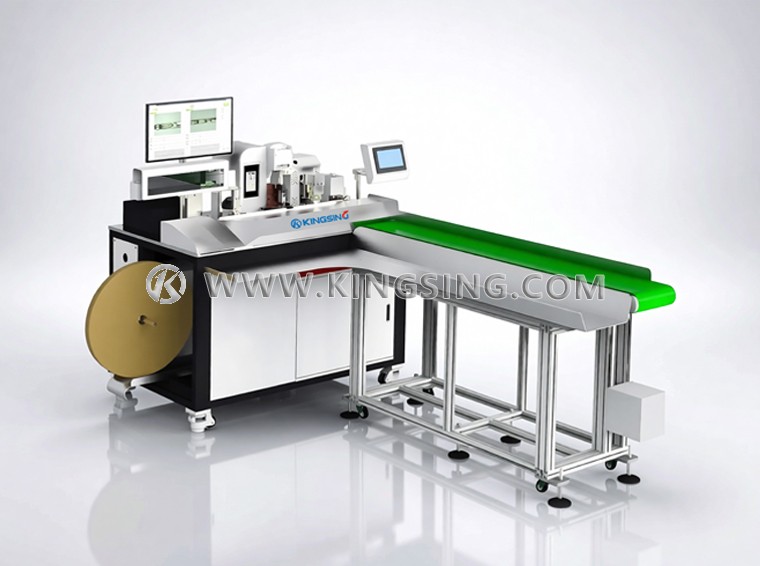

Photovoltaic Wire Automatic Feeding and Crimping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Automatically feed photovoltaic wires, half-stripping end A, and automatically crimping terminals on end B;

  • Counterweight single-axis pay-off machine (used for shaft installation) or equipped with pay-off reel (used for small reels);

  • Optional terminal crimping pressure monitoring and CCD image detection;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).


Power supply: AC220V 50HZ single phase

Wire diameter: 2.5mm2, 4.0mm2, 6.0mm2 photovoltaic wire

Wire length: 80mm~2000mm

Stripping length: double ends, 0~15mm

Terminal type: chain strap or single pin socket terminal

Production efficiency: ≥20 pcs/minute (wire length 1000mm)

Air pressure: 0.5~0.7Mpa

Overall dimensions: 1500*1300*1800mm

Detection device: Detection of wire presence and presence of terminals (CCD image detection and terminal pressure management device are optional)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
