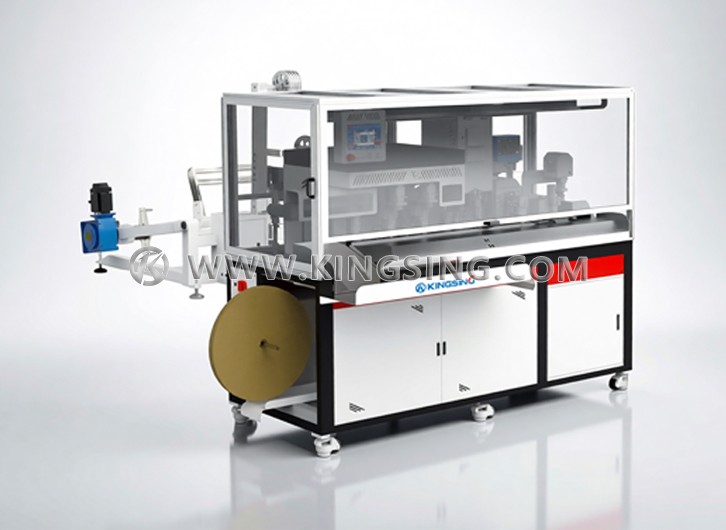

Photovoltaic Wire Automatic Wire Feeding, Crimping, and Connector Insertion Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • The photovoltaic wire is automatically feeding wire, the A end is half-stripped or tinned, the B end is inserted into the connector and the nut is tightened;

  • Counterweight single-axis pay-off machine (used for shaft installation) or equipped with pay-off reel (used for small reels);

  • There are two control methods to choose from for connector nut tightening, one is the nut tightening torque type and the other is the nut tightening position type;

  • Optional terminal crimping pressure monitoring and CCD image detection;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.)


Power supply: AC220V 50HZ single phase

Wire diameter: 2.5mm2, 4.0mm2, 6.0mm2 photovoltaic wire

Wire length: 80mm~2000mm

Stripping length: double ends, 0~15mm

Terminal type: chain strap or single pin socket terminal

Connectors: pre-assembled positive and negative connectors

Production efficiency: ≥18 sets/minute

Air pressure: 0.5~0.7Mpa

Overall dimensions: 2200*1500*1800mm

Detection device: wire presence detection, terminal presence detection, pin sleeve insertion into place detection, connector presence detection, nut tightening torque monitoring, nut tightening position detection (CCD image detection and terminal pressure management device optional)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
