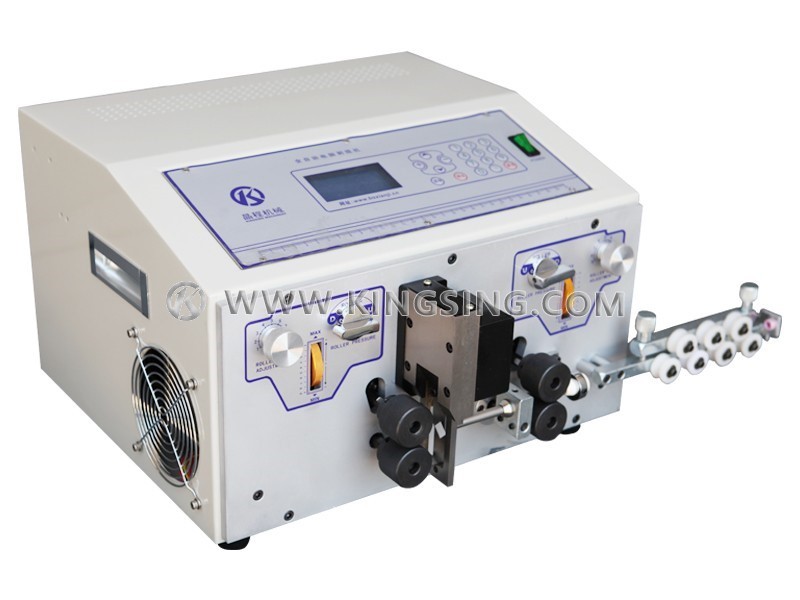

Wire Stripping Machine

  • Model：KS-09H
  • Net. Weight：
  • Dimension：
Online Inquiry

Manual processes take time. Automatic Round Jacket Wire Stripping Machine KS-09H reduces manual work to a minimum. It processes all required wire/cable automatically and provides them fully equipped in the correct order and length. Fully automatic production assures reproducible, continuous quality. Automated data transfer eliminates error sources because no manual entries are required to be made on the machine.This stripping machine can store 99 sets of program in the touch screen, which you can retrieve anytime while needed. In addition, special blades for flat cable can be installed as an optional choice, and the customer has his choice of rubber rollers or iron rollers depending on his requirements.

Download: (1) (2)

Available Core Cross-Section Range: 0.1 ~ 10.0mm² (AWG7 ~ AWG32)
Max. Conduit Diameter: Φ10mm
Cutting Length: 5 ~ 9999mm
Stripping Length: Head 0~99mm, Tail 0~70mm
Memory Function: Max. 99 group of programs
Max. Middle Stripping Section: 11 Sections
Stripping Accuracy：± (0.002mm× Stripping Length)
Cutting Accuracy：± (0.002mm× Cutting Length)
Speed: 3000~7000pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 300W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 38Kg
Dimension: 390 × 350 × 255mm
