Cable Injection Moulding Machine

  • Model：KS-J45T
  • Net. Weight：2100kg
  • Dimension：1700×1300×2700mm
Online Inquiry

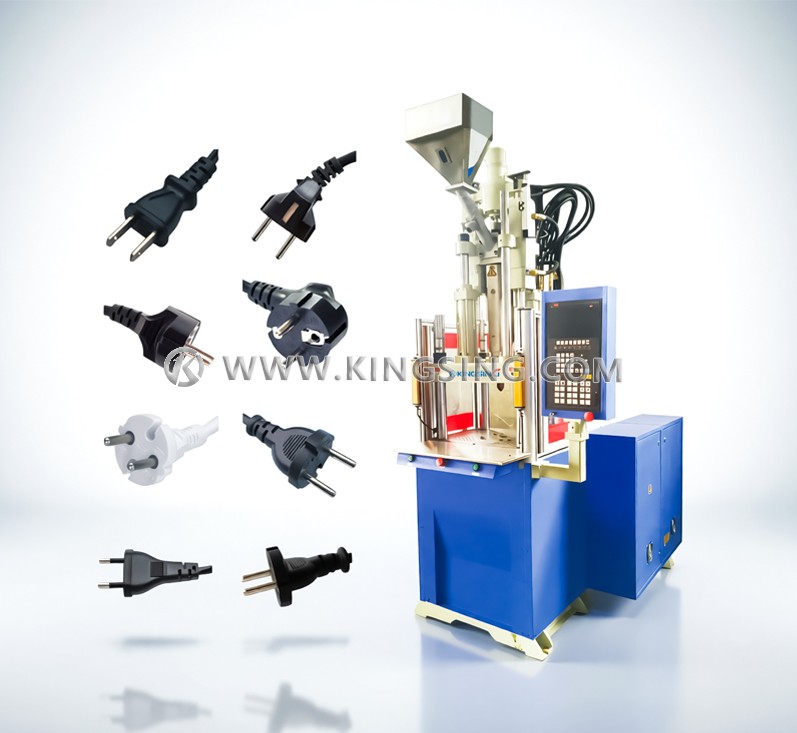

This is a power cord plug injection molding machine, suitable for injection molding of power plugs, data cables, USB, audio cables, chargers, connectors and other products. The injection mold needs to be customized according to the product, and the quantity that can be injected at a time depends on the size of the product.

It is suitable for various thermoplastics: PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon , polypropylene, polystyrene, etc.

KINGSING

Download: (1)
Screw DiameterΦ25mmΦ28mmΦ32mm
Injection Pressure192Mpa (1960kgf/cm2)153Mpa (1563kgf/cm2)117Mpa (1195kgf/cm2)
Theoretical Shot Volume63.8cm380cm3104cm3
Max. Shot Weight59.3g (2.1oz)74.4g (2.6oz)
96.7g (3.4oz)
Injection Rate53cm3/s67cm3/s87cm3/s
Injection Speed110mm/s

Screw Ration Speed: 0~240rpm

Nozzle Out From Platens: ≥45mm

Clamping Force: 45ton (441KN)

Clamping Stroke: 200mm

Min. Mould Thickness: 150mm

Max. Opening: 350mm

Distance Between Columns: 410*250mm

Max. Mould Size: 400*350mm

Ejector Distance: 40mm

Ejector Force: 2.7Ton (26.5KN)

System Pressure: 13.7Mpa (140kgf/cm)

Oil Tank Capacity: 200L

Motor Power: 7.5KW (10HP)

Net. Weight: 2100kg

Dimension: 1700×1300×2700mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
