Shark Tooth Terminal Crimping Machine

  • Model：KS-P215S
  • Net. Weight：325kg
  • Dimension：1170×560×1470mm
Online Inquiry

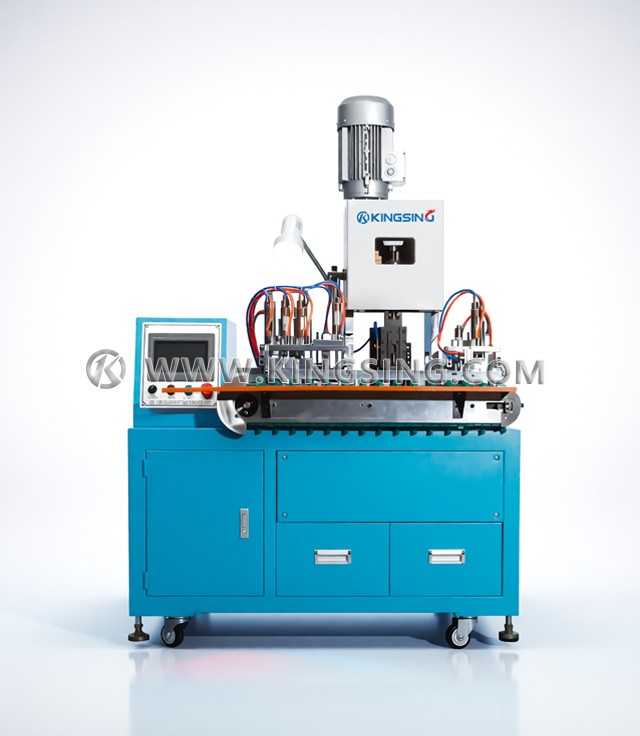

This is an automatic shark-tooth terminal crimping machine, which is designed for processing parallel twin cable and 2-core sheathed cable. When processing double parallel cable, it can automatically split, strip, and crimp terminals. When processing 2-core sheathed cable, it can automatically strip the outer jacket, strip the core wire, and crimp the terminals.

The machine can also be customized according to special needs, such as cutting two core wires into different lengths, and then crimping the terminals.

KINGSINGKINGSING
Download: (1)

Available Cable Type: 2-core sheathed cable, parallel twin cable

Core Wire Stripping Length: 4~12mm

Jacket Stripping Length: can be customized

Capacity: 2300~2500pcs/hour

Crimping Force: 4Ton

Good Rate: >99%

Air Source: 0.5~0.8Mpa

Power Rating: 1000W

Power Supply: 220V 50/60Hz

Net. Weight: 325kg

Dimension: 1170×560×1470mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
