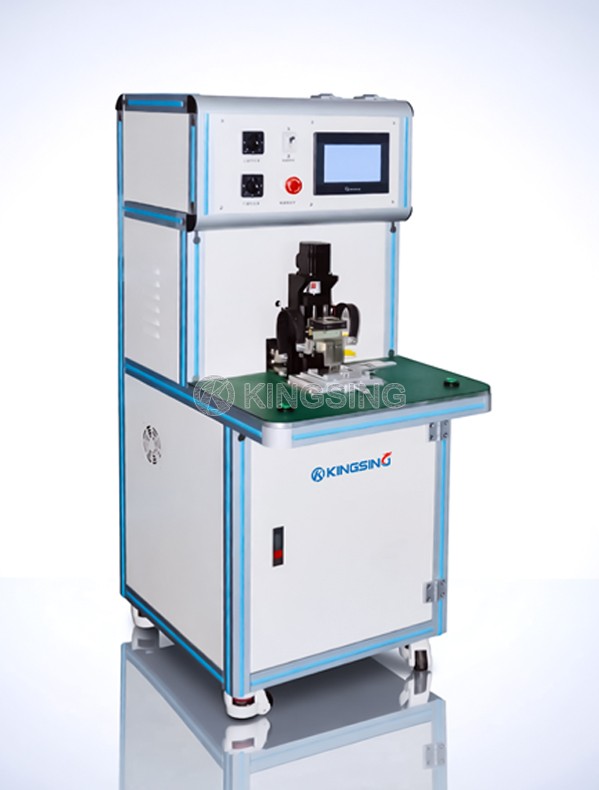

USB3.0 Connector Hot Press Welding Machine

  • Model：KS-W22F
  • Net. Weight：230kg
  • Dimension：800×690×1450mm
Online Inquiry

This machine is widely used for double-sided hot-press welding of Type-C 3.0, DP, Mini DP, Mini SAS, C48/C94, HDMI A/D, PCB boards, etc.  Each cycle takes about 5-8 seconds, and you can process 2 cables at a time.

Color touch screen operating interface can accurately control parameters such as temperature and welding time. It supports both double-sided welding and single-sided welding, you can turn off each side welding function in the program freely. In order to meet different welding requirements, in order to meet different welding requirements, temperature and welding time can be divided into multiple sections for control. The program can save welding parameters for easy changing products.

KINGSING

Download: (1)

Temperature: RT~500℃

Welding Pressure: 2.5~4kg

Capacity: 700pcs/hour

Air Source: 0.4~0.6Mpa

Welding Power: 300W×2 = 600W

Power Supply: 220V 50/60Hz

Net. Weight: 230kg

Dimension: 800×690×1450mm
