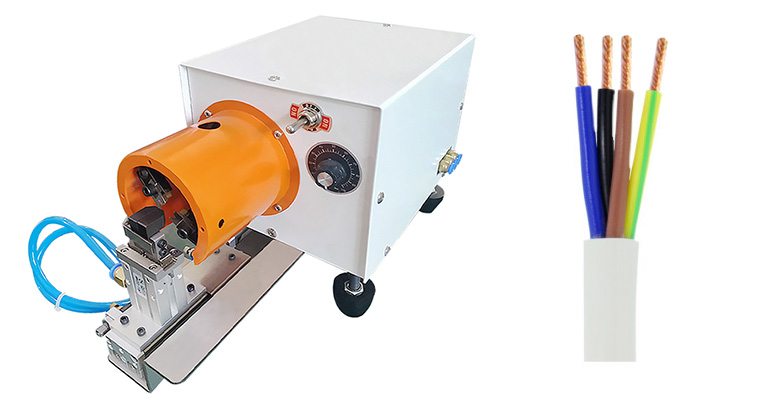

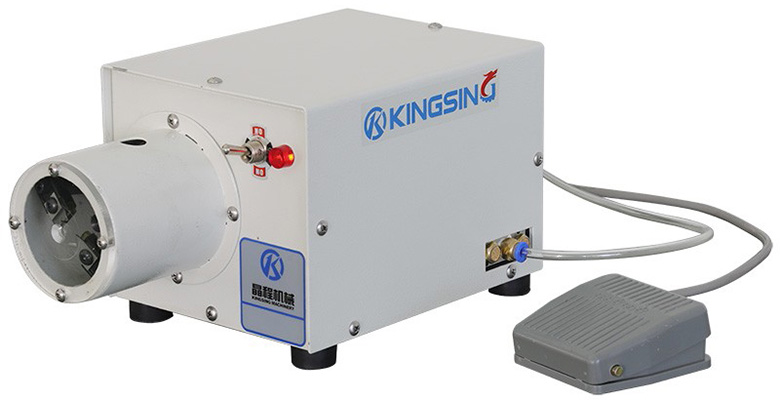

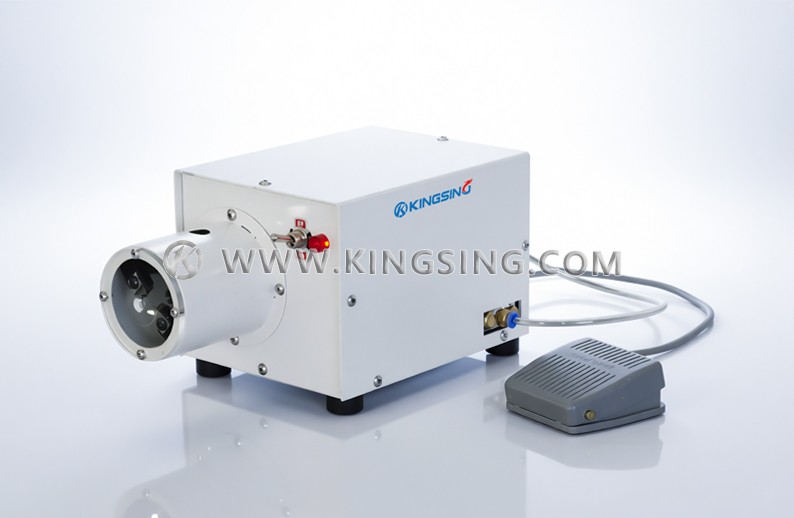

Rotary Blade Wire Stripping and Twisting Machine

  • Model：KS-W414 series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Light and portable;

  • Small size, save space;

  • Excellent price/performance ratio;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Easy operation and low technical requirements for operators;

  • Forward and reverse switching function.

  • The cutting depth can be adjusted according to the wire size without replacing the blades.

Download: (1)
Picture钜鹿机械钜鹿机械
ModelKS-W414NKS-W414A
Stripping methodManual wire pullingWire clamp for pulling wire
Net weight10kg12kg
Dimension300*180*170mm320*180*170mm

Wire diameter: Φ1~4mm

Stripping length: 5~30mm

Twisting direction: clockwise, counterclockwise

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50Hz

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
