Solid Pin Terminal Crimping Tool

  • Model：KS-T803
  • Net. Weight：
  • Dimension：
Online Inquiry

The machine is driven by dual-action standard cylinder, which has advantage of high efficiency and quality in crimping force and speed. The machine fits for many kinds of terminals. The die sets are interchangeable with our manual crimping tools, we provide all kinds of die sets according to your terminals.


Operation Steps:

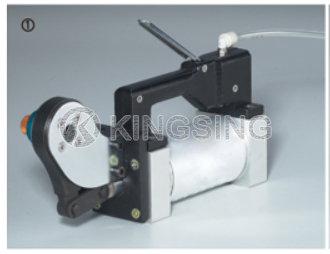

  1. Make sure air supply is correctly connected.
    KINGSING

  2. Choose suitable die set for different types of AirTerminals.
    KINGSING

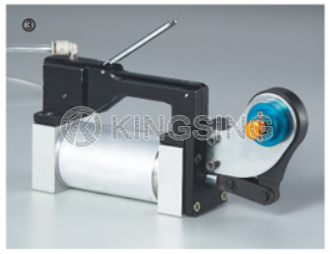

  3. Adjust the depth of interface pressure according to your required crimping length.
    KINGSING

Range of application: 0.1~ 6mm2 (Air Terminals)
Output force: 0.9 ~ 1.3KN
Air pressure: 0.5 ~ 0.7Mpa
Dimension: 230mm x 120mm x 85mm
Weight: 1.8Kg
