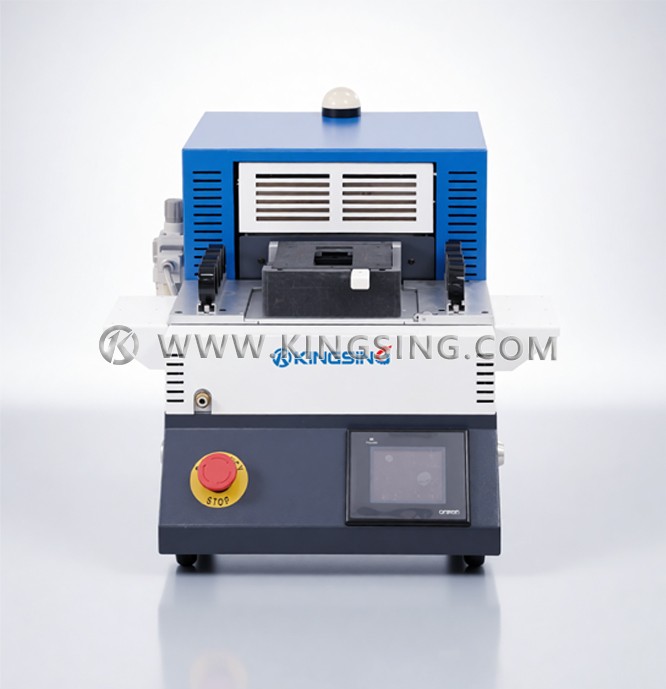

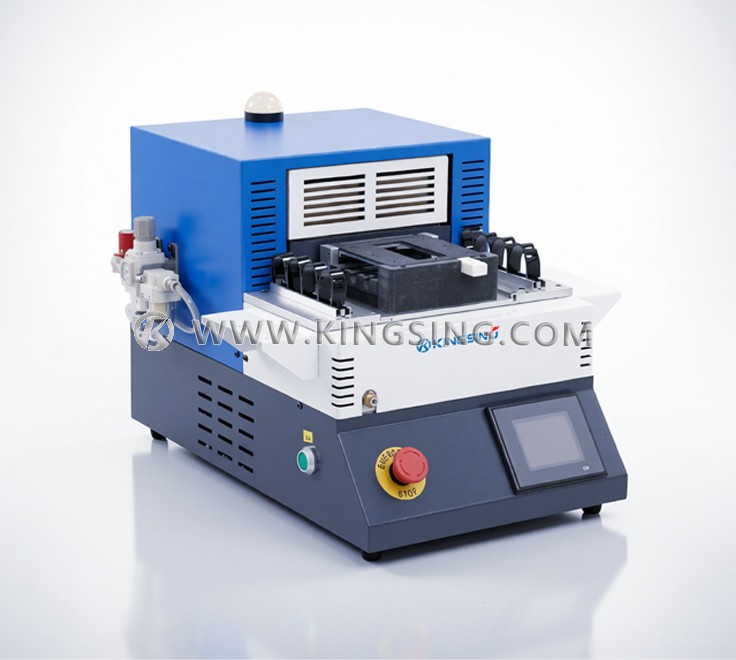

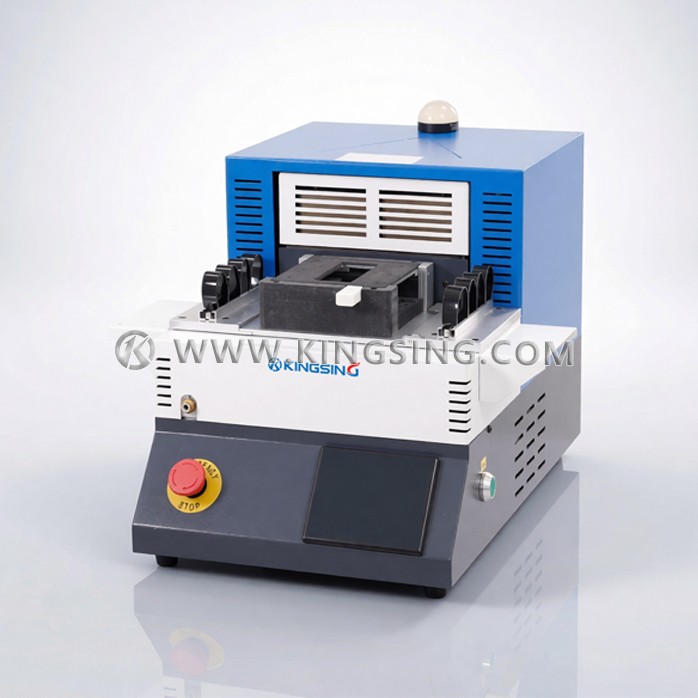

Desktop Heat Shrink Tubing Heating Machine

  • Model:KS-H808
  • Net. Weight:
  • Dimension:
  • Infrared ring heating is adopted, heat shrinking is uniform, and the set temperature can be reached quickly;

  • Built-in cooling system can quickly cool the heating parts after heat shrinking;

  • Adjustable parameters: process temperature, heat shrinking time, cooling time, etc.;

  • The heat shrinking chamber can be easily and quickly replaced, suitable for different heat shrink tube sizes and product shapes;

  • Dozens of product heat shrinking parameters can be recorded and saved, and can be directly called when needed;

  • Internal automatic cooling cycle can extend the service life of components and ensure low temperature operation of the equipment shell;

  • The touch screen displays temperature, heat shrink cooling time, temperature curve, production data, etc. in real time;


Download: (1)

Thermocouple: K-type thermocouple

Tube diameter: Max.50mm

Working temperature: 250°C~550°C

Power supply: 220V 50HZ

Power rating: 2000W

Air source: 0.6 Mpa

Net weight: 35kg

Heat shrink chamber (max): 120*120*74mm

Dimensions (L*W*H): 530mm*500mm*400mm
