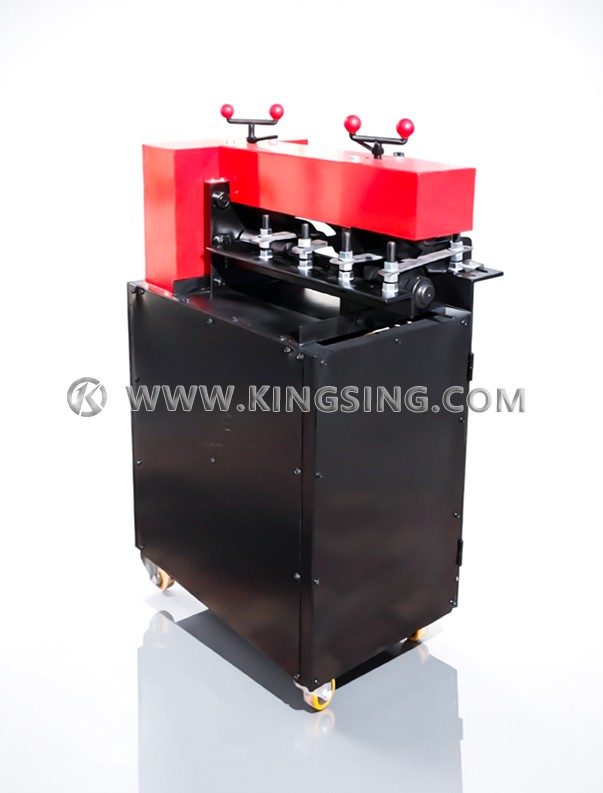

Heavy Duty Scrap Cable Stripper

  • Model：KS-S500 Series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

This series of waste wire dismantling and recycling machine is specially designed for various large cables. It can quickly and efficiently separate the sheath and copper core of various large square wires. For details, please refer to the technical parameters or contact our sales staff.

Download: (1)

ModelKS-S501KS-S502KS-S503KS-S504KS-S505
Available Cable SizeФ1.5~98mmФ1.5~150mmФ1.5~150mmФ10~Ф200mmФ65~150mm
Daily Output200~5000KG200~10000KG1000~8000KG1200~10000KG
1200~10000KG
Power

220V/3.0KW

380V/3.0KW

380V/4.0KW

380V/4KW

Net Weight240KG285KG270KG300KG360kg
Dimension850*600*1250mm930*550*1320mm860*550*1280mm900*580*1500mm600*790*1300mm
PictureKINGSINGKINGSING
KINGSINGKINGSINGKINGSING

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
