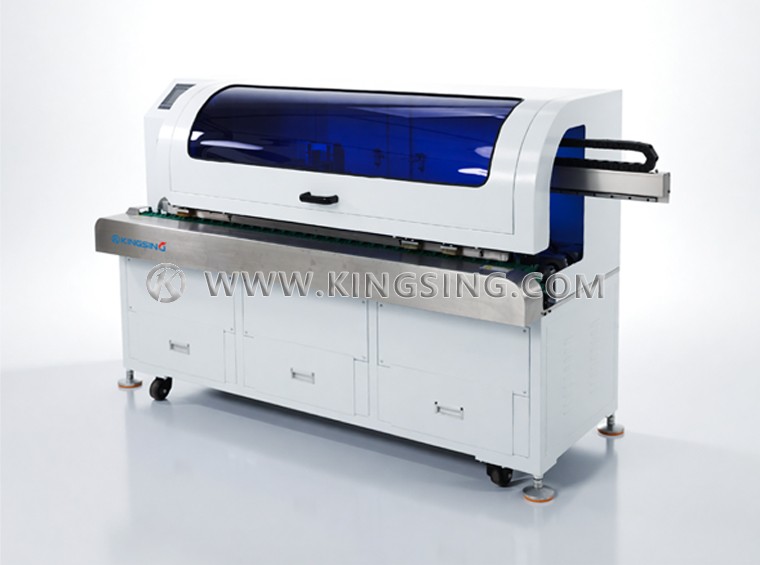

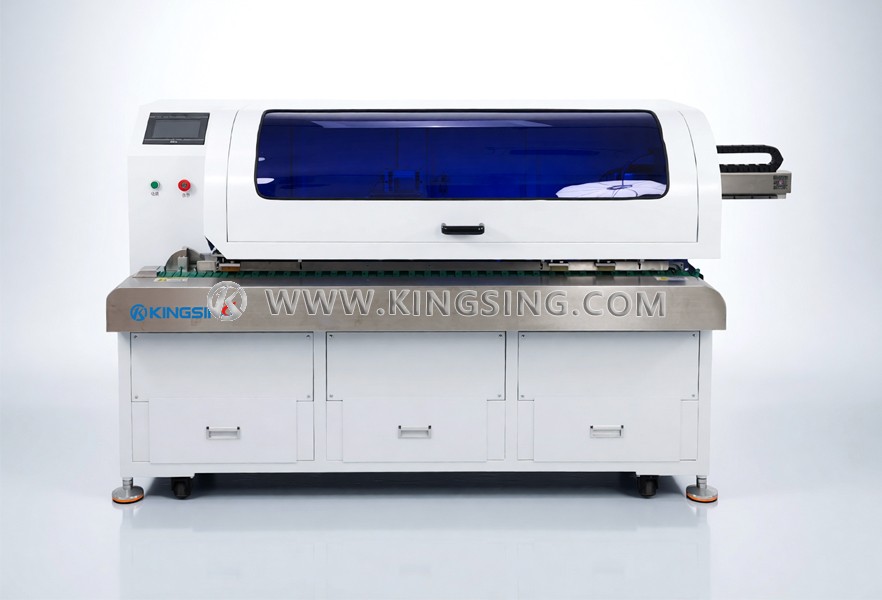

Cable Stripping and Braided Shield Brushing Twisting Machine

  • Model:KS-S007
  • Net. Weight:
  • Dimension:

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, braided shield tip cutting, aluminum foil mylar removing. Just put the wire to be processed on the conveyor chain, the machine will complete all the processes automatically.

  • Excellent price/performance ratio;

  • Easy to operate, the operator can get started quickly without any training;

  • Designed by human structural mechanics to reduce fatigue strength;

  • It integrates wire jacket stripping, braided shield brushing and twisting, braided shield tip trimming, aluminum foil mylar cutting and removing, automatically finished product collecting, etc.

  • It adopts touch screen and PLC control mode, the processing parameters (such as cylinder delay, speed, motor position, etc.) can be set in the screen;

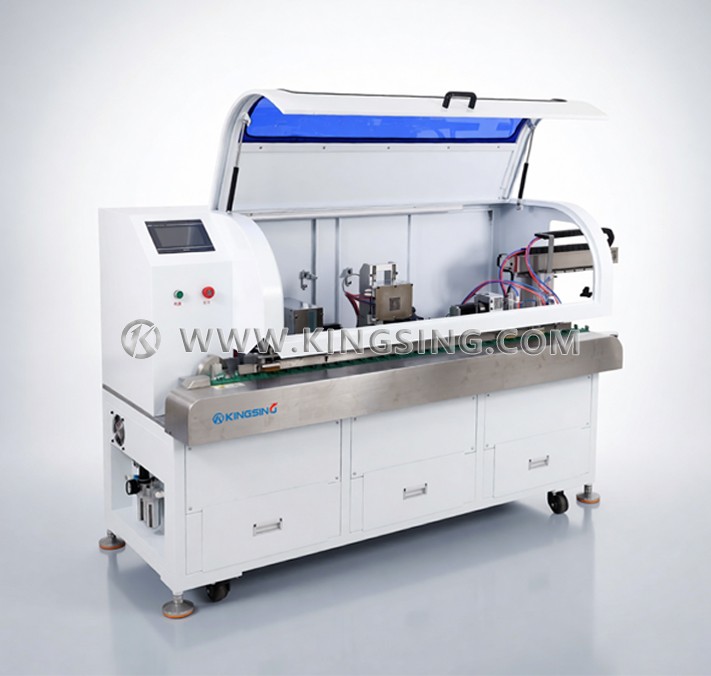

  • Equipped with an openable safety cover and pneumatic support rod open method, safe and beautiful;

  • It has two working modes of single cycle and continuous cycle, which can be switched as needed to facilitate the operation and debugging of the machine.


Download: (1) (2)

Diameter of Wire: Φ2~8mm (can be customized)

Jacket Stripping Length: 10~60mm (can be customized)

Capacity: 1200~1500pcs/hour

Rated Power: 600W

Power Supply: AC220V 50HZ

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Dimension (L×W×H): 2350×880×1500mm

Weight: 500Kg
