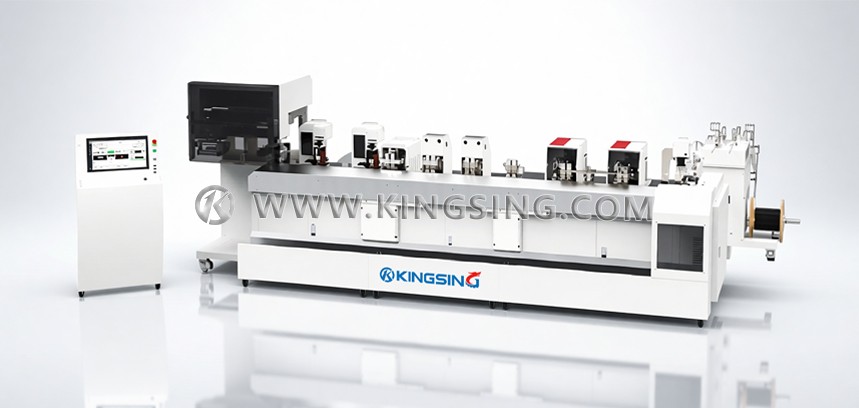

Automatic Insertion of Number Tubes, Auxiliary Switches, and Crimping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Multi-specification auxiliary switch production;

  • Equipped with single wire feeding machine and single axis pay-off machine;

  • Equipped with two sets of single-tube coding machines, which can automatically feed, print, cut and insert tubes, and are also equipped with a wire number tube heating device;

  • Equipped with multiple sets of crimping units, all terminals can be online at the same time, and all terminals are crimped without changing molds. Use a servo crimping machine to automatically switch all crimping parameters and monitor the crimping quality in real time; use a three-axis robotic arm + circular vibration automatic feeding terminal (no direct vibration), and circular vibration glue spraying to avoid damaging the terminal coating;

  • Straight-in hard-sheathed terminals and 90-degree elbow hard-sheathed terminals are online at the same time, and auxiliary switches can be mixed and inserted. To meet the needs of a variety of products; single-specification auxiliary switches are mass-produced, and the wire length, wire number, terminals, and plug-in pin positions are determined according to the production work order;

  • The supporting data conversion software is seamlessly connected to the production work orders generated by third-party automatic wiring software. Work orders can be dispatched remotely through the internal network and automatically and quickly converted into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).


Power supply: AC220V 50HZ single phase

Processing range: 0.5mm2~4.0mm2; BVR, RV and other types of wires

Production efficiency: ≥500 pieces/hour (wire length 1000mm)

Wire length: 220-1500mm (the shortest wire length for double-ended crimping is 220mm)

Stripping length: double ends, 0-15mm

Number tube specifications: 0.52~4.02

Number tube length: 15-35mm

Air pressure: about 0.5-07Mpa

Dimensions: 5500 X4000 X1600mm

Number management identification: realize conventional half-width identification within 36 characters

Terminal types: straight plug with hard sheath terminal, 90 degree elbow with hard sheath terminal, other types of terminals

Detection device: Detection of presence of wires, detection of presence of number tube, error reporting when characters are too long and out of bounds, detection of presence or absence of ribbon, detection of ribbon breakage, terminal crimping detection

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
