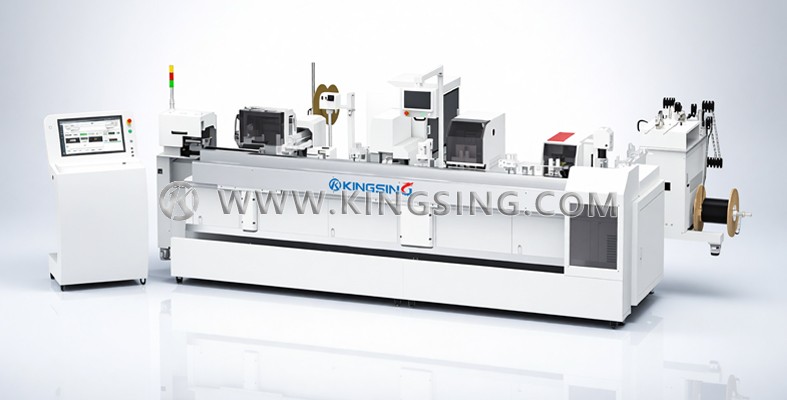

Automatic Number Tube Insertion, Crimping and Soldering Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Single-specification handlebars are mass-produced, and the wire length, wire number, terminals, and welding pin positions are determined according to the production work order;

  • The wire pins are welded using the Luotie tin method, which can be upgraded to laser welding;

  • The supporting data conversion software is seamlessly connected to the production work orders generated by third-party automatic wiring software. Work orders can be dispatched remotely through the internal network and automatically and quickly converted into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).


Power supply: AC220V 50HZ single phase

Stripping length: double ends, 0-15mm

Wire number tube specifications: 1.02~1.52, suitable for 1.0mm2 and 1.5mm2 wire diameters

Number tube identification: regular half-width characters within 36 characters

Yellow wax tube specifications: Ф3.0, Ф3.5

Yellow wax tube length: fixed tube length 12mm

Production efficiency: ≥10 solder points/minute (wire length 500mm)

Air pressure: 0.5~0.7Mpa

Dimensions (L×W×H): 5500*4500*1600mm

Wire diameter: 1.0mm2, 1.5mm2, BVR, RV, low smoke halogen-free and other types of wires

Wire length: 350-4500mm (the shortest wire length for double-ended crimping terminals is 350mm）

Detection device: Detection of presence of wire, presence detection of wire number tube, presence detection of ribbon, ribbon breakage detection, terminal crimping monitoring

Terminal types: semi-insulated single-piece terminals (OT, UT, IT (tube type)); fully insulated single-piece terminals (187/250 straight plug and elbow plug; 4.0 bullet male and female terminals); fully bare single-piece terminals (OT, UT, pin type, DBN); Aviation pins (all kinds of aviation pins and sockets); Chain ends: all kinds of chain ends

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
