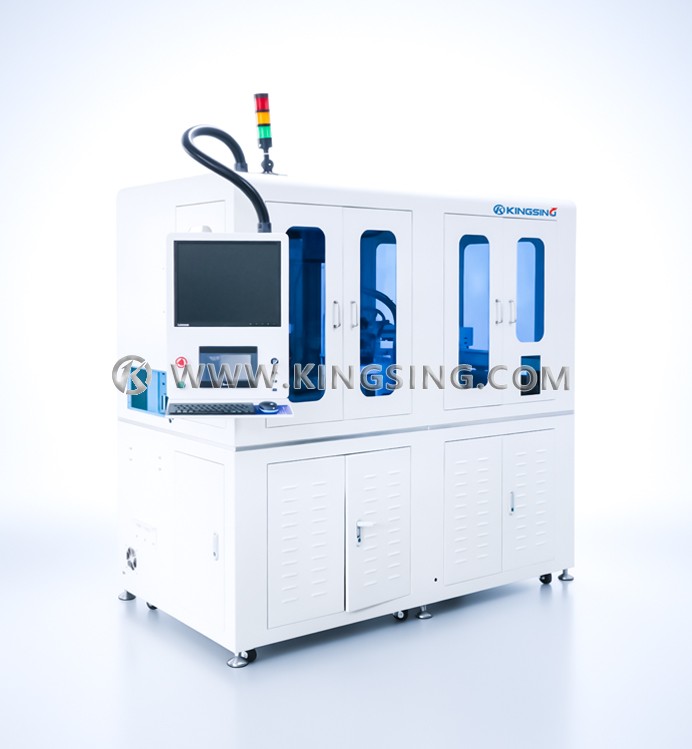

Automatic Coaxial Cable Crimping and Soldering Machine (short-wire type)

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

The equipment can be fully automated to realize the entire process of automatic wire stripping-automatic detection-automatic terminal crimping-automatic tin soldering-automatic electrical testing-automatic receiving, and can meet the docking of production process equipment such as back-end welding boards.

Cutting capacity: 25mm-200mm (the stripping size of the dipped tin end of 25mm products does not exceed 5mm)

Processing diameter: 0.81-1.78mm

Cutting depth setting unit: 0.01mm

Equipment utilization rate: ≥95%

Finished product yield: ≥99%

Working pressure: not less than 0.5Mpa

Processing accuracy: Tolerance of stripping at both ends ±0.1mm Total length tolerance ±0.2mm

Working power supply: AC220V±10V

Dimensions: 2300*1500*2200mm

Power: 3kW

Weight: 1200kg

Production efficiency: 700-1000PCS/H (depending on the stripping length)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
