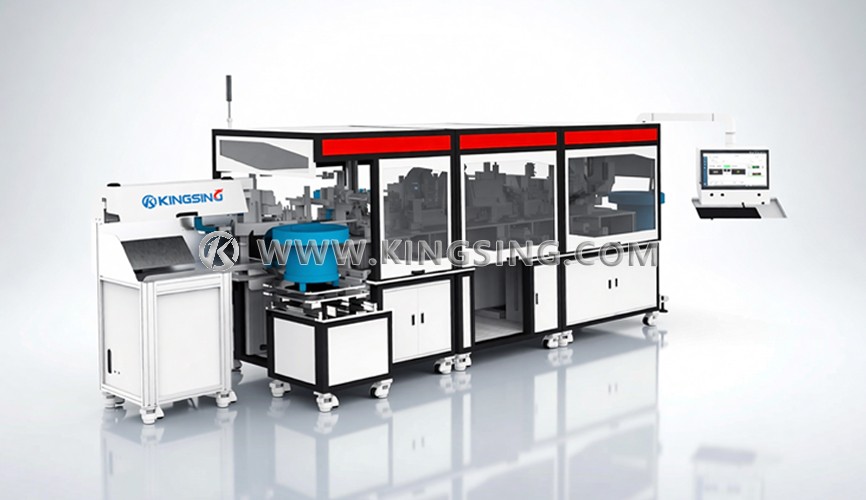

Cable Double-end Piercing and Crimping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • 10~30PIN, 40~50PIN cables and piercing connectors are automatically crimped, with automatic continuity detection after crimping;

  • 10~30PIN cables and 40~50PIN cables can be produced by one machine;

  • Double-ended piercing connectors can be crimped in the same direction, forward and reverse, or reversely crimped;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).

Power supply: AC220V 50HZ single phase

Processing range: 10~30PIN, 40~50PIN, 28AWG~20AWG wire

Production efficiency: 8~10 sets/minute (when the wire length is 200mm)

Terminal type: piercing connector

Wire length: 100mm~1000mm

Connector loading: automatic loading of vibrating plate

Detection device: wire presence detection, continuity detection

Air pressure: about 0.5~0.7Mpa

Dimensions: 2000mm×1800mm×1800mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
