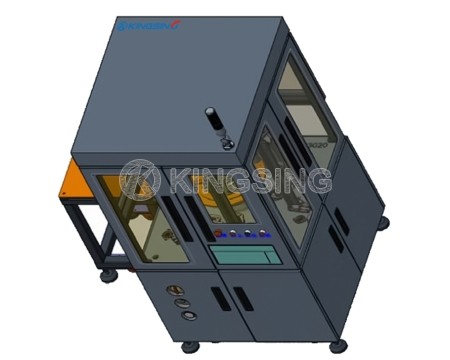

Single Wire Single Tube Automatic Number Tube Insertion Machine (double-ended flattening)

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • A single type of conductor and a single type of wire number tube are online at the same time, automatically produced according to the production work order, and automatically grouped. Each group of conductor production is completed and a label is printed and attached in real time (indicate the purpose of the cabinet number) to facilitate subsequent cabinet production;

  • Equipped with single wire feeding machine and single axis pay-off machine;

  • Equipped with two sets of single-tube coding machines, which can automatically feed, print, cut and insert tubes, and are also equipped with a wire number tube heating device;

  • There is no crimping unit, and both ends are flattened or bent;

  • Equipped with a dedicated label printer for labeling each work order and each group of wires;

  • The supporting data conversion software is seamlessly connected to the production work orders generated by third-party automatic wiring software. Work orders can be dispatched remotely through the internal network and automatically and quickly converted into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).


Power supply: AC220V 50HZ single phase

Stripping length: no stripping function

Wire number tube specifications: 0.52~4.02, suitable for 0.30mm2 ~ 4.0mm2 wire diameters

Number tube identification: regular half-width characters within 36 characters

Number tube length: 10~38mm, special length can be customized

Production efficiency: ≥720 pcs/minute (single wire production) ≥600 pcs/hour(group production)

Air pressure: 0.5~0.7Mpa

Dimensions (L×W×H): 5000*3000*2000mm

Wire diameter: 0.30mm2~6.0mm2, BVR, RV, low smoke halogen-free and other types of wires

Wire length: 100~10000mm

Detection device: Detection of presence of wire, presence detection of wire number tube, presence detection of ribbon, ribbon breakage detection, terminal crimping monitoring

Terminal type: no terminal, flattened or bent at both sides

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
