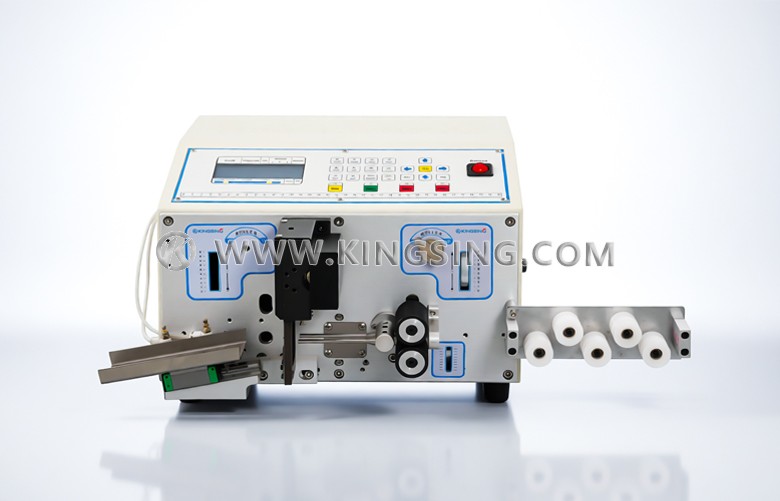

This is a professional wire stripping machine for processing ultra-short wires. It is mainly used for processing wires with a total length of less than 100mm. It supports stripping wires at both ends with a minimum total length of 5mm, and can automatically separate waste wire sheaths from finished wires. The program interface is intuitive and easy to understand. Parameters such as cutting length, stripping length, cutting depth, retracting and output can be set freely in the program.
Applicable core area: 0.1 ~ 4.0mm² (AWG28~11)
Simultaneous processing quantity: 2 (models that can process 4 wires at the same time can be customized)
Maximum catheter diameter: Φ5.0mm
Cutting length range: 0~100m
Cutting length accuracy: ±0.002×L (L means cutting length)
Stripping length range: 0~100mm
Minimum glue length: 2mm
Program memory function: up to 100 groups of programs can be saved
Working voltage: 220V/50Hz
Rated power: 430W
Air pressure: 0.4~0.6Mpa
Net weight: 30kg
Dimensions: 400x410x280mm
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
