Wire Strip and Bend Machine With MES System

  • Model：KS-W011C
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

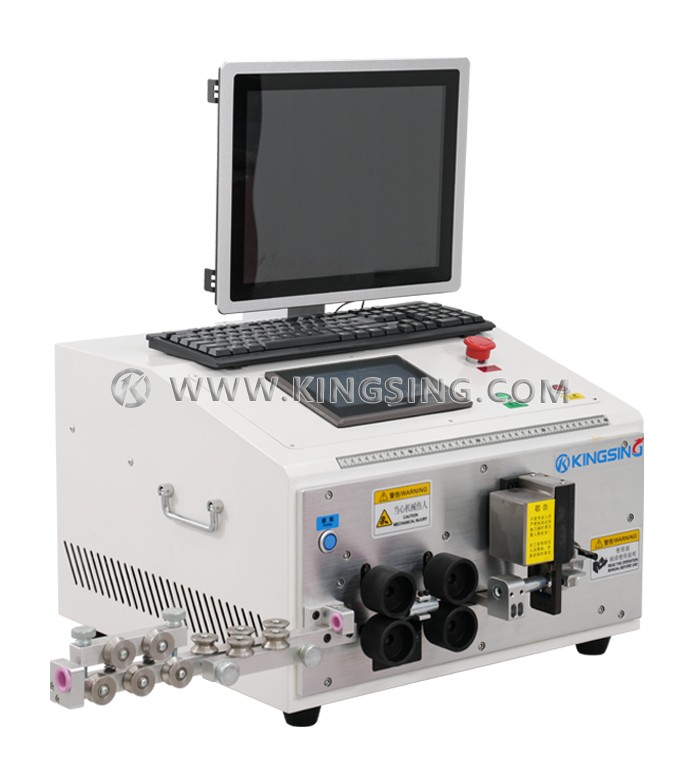

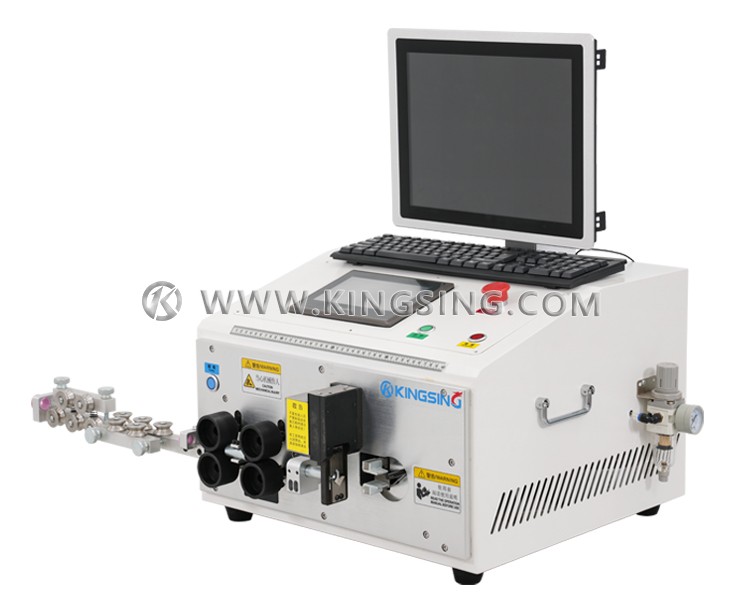

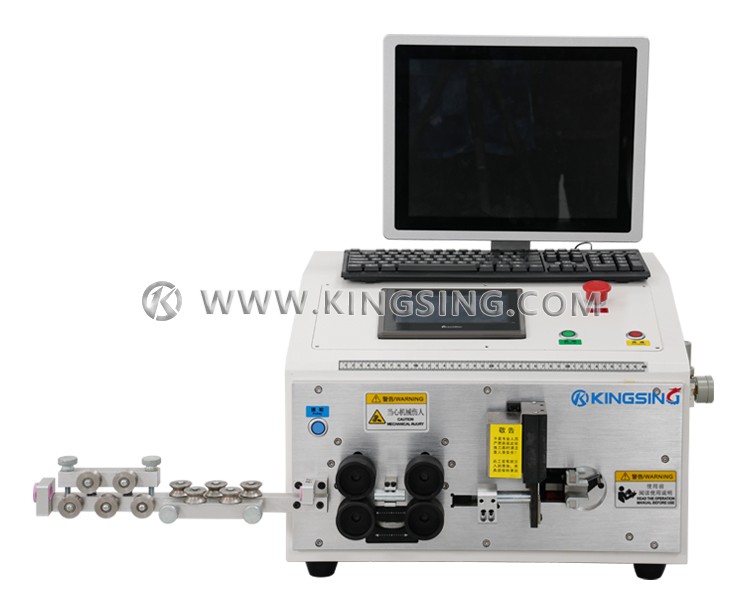

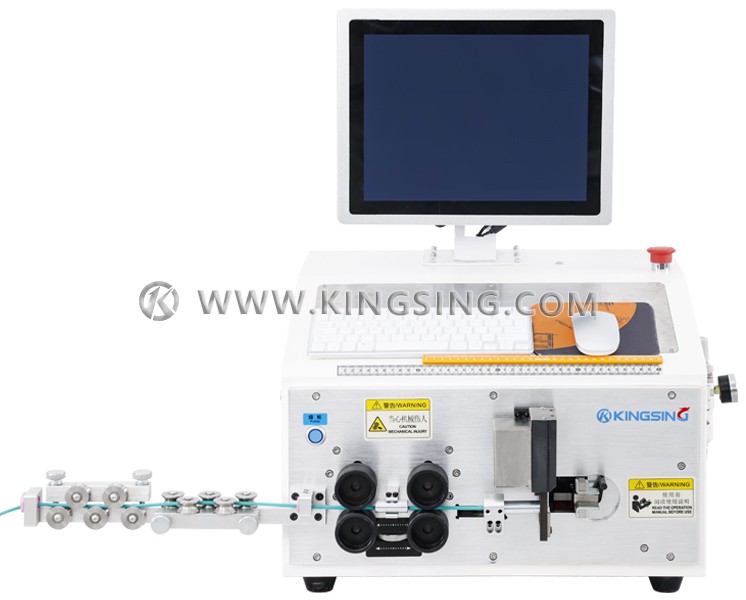

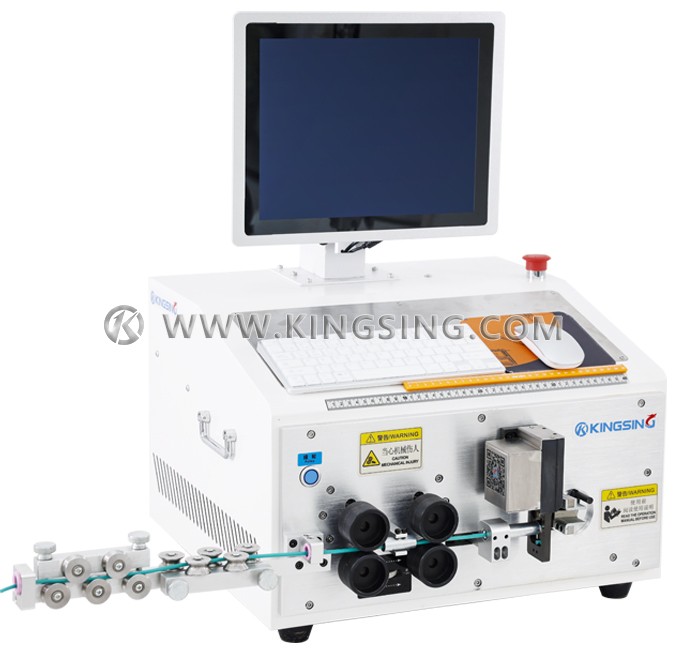

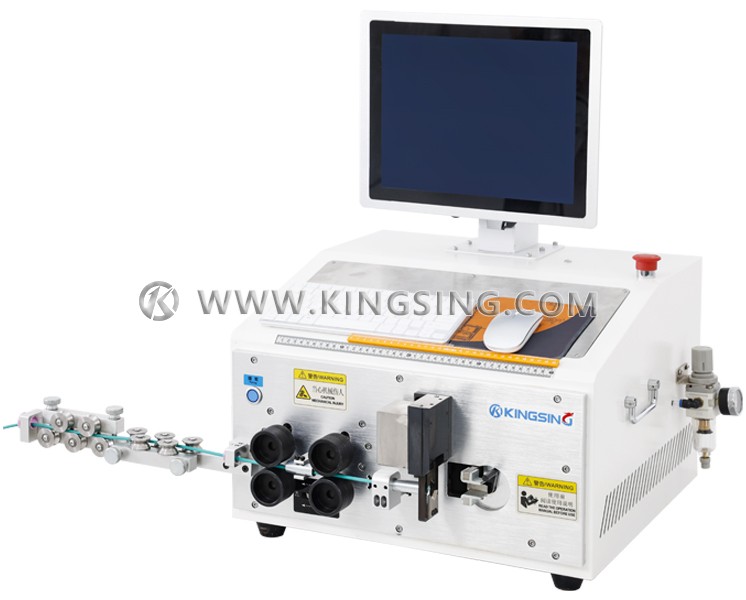

  1. This is an intelligent control system that supports MES. The picture shows a 16-square automatic bending and stripping machine. This system can also be transplanted to any other automatic stripping machine of our company. It adopts Windows operating system, supports MES, and can issue production tasks through network dispatch. It integrates the functions of cutting wires, stripping wires, spraying codes, paying off wires, taking up wires, scanning code guns, and printing receipts. The software is powerful, and supports batch import of production data from Excel tables, and can mass-produce wires with different lengths and different coding contents at one time.

  2. The inkjet printer adopts the brand imported from France, with stable and reliable quality, and there are two models of white ink and black ink to choose from. One inkjet printer can only be used for one color of ink. If you need to print both white and black characters, you need to be equipped with 2 inkjet printers. The inkjet printer is directly controlled by the industrial control system, and the inkjet content can be defined directly in the software or in the Excel table, without inputting the printing content through the inkjet printer's own screen. The communication protocol of this system is designed according to the imes inkjet printer, so it does not support other brands of inkjet printers.

  3. It can be equipped with a small ticket printer and a code scanning gun, which supports scanning the code to call out the processing parameters. The small ticket printer can automatically print the information data of the current processing wire, and also supports the printing of QR codes. The printing format and content can be customized according to customer needs.

The wire stripping machine can choose any model according to the processing requirements. This model is just a demonstration of the intelligent control system, and it can be applied to any wire stripping machine of our company.

KINGSING

KINGSING


Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
