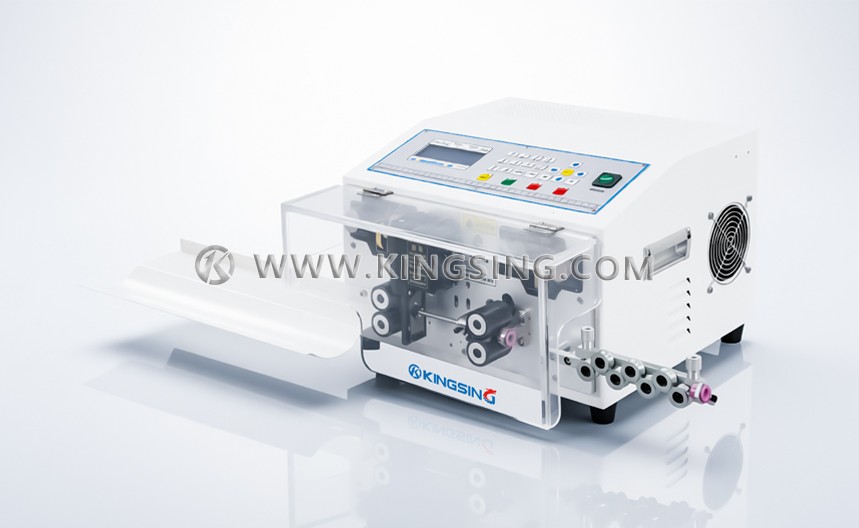

This is an economical four-wheel drive wire stripping machine with 3 sub-models (see technical parameters for details). Wire feeding wheel can choose rubber wheel or iron wheel, which is suitable for processing various BVR electronic wires, BV hard wires, sheathed wires, etc. The processing parameters of different wires can be saved in different program numbers, and the corresponding processing parameters can be called out with one key when switching wires.
This series of models has the function of automatically jumping the conduit, that is, when the wire tail is stripped, the wire inlet conduit will automatically lift up to avoid it, so the stripping length range of the wire tail is greatly expanded. The pressure of the wire feeding wheel can be adjusted through the knob, and it is also equipped with a wire feeding wheel gap adjustment knob and a wire straightening device, which has comprehensive functions and is affordable.
The program interface is intuitive and easy to understand. Parameters such as cutting length, stripping length, feed depth, retraction, and output can be freely set in the program. Programs and other functions can be switched at will, and one machine supports many different processing methods, which is highly versatile.
Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:
Install a safety shield, and automatically alarm and stop after opening the shield.
Customized blades and conduits with special shapes are used to process flat sheathed wires, double wires, flat cables and other wires. Flat sheathed wires can be stripped from the inner and outer layers.
Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.
The device for arranging wires and splitting wires can be added to separate the two ends of the wires while cutting and stripping the wires.
| Model | Applicable Core Area | Stripping Length Range | Minimum Glue Length |
|---|---|---|---|
KS-W61210 | 0.1 ~ 10.0mm² AWG28~7 | 0~35mm | 38mm |
KS-W61216 | 1.0 ~ 16.0mm² AWG18~6 | 0~35mm | 38mm |
KS-W6125 | 1.0 ~ 25.0mm² AWG18~3 | 0~35mm | 38mm |
Cutting length: 0~99999.99mm
Cutting tolerance: 0.002*L (L means cutting length)
Working voltage: 220V/50Hz
Program memory function: save up to 100 sets of data
Additional Information：
Stripping length range: The stripping length range in the above parameters refers to the stripping length range when the long-wire program is used for full stripping. Half-stripping is not limited by the above parameters. For example, when the wire tail is half-stripped, the stripping length can usually reach more than 80mm (whether it can be stripped or not depends on the tightness of the wire sheath).
Minimum glue length: This parameter refers to the total length of the wire minus the stripping length at both ends, that is, the length of the part with rubber in the middle after stripping. This parameter is mainly used to refer to the length of the shortest wire that can be processed. The minimum length of glue remaining in the above parameters refers to the minimum length when using the long wire program to strip both ends. If you use the ultra-short wire program, it is not limited by the above parameters, and you can even strip 1mm at both ends of the total length of 5mm. The working principle of the ultra-short wire program is different from that of the long wire program.
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
