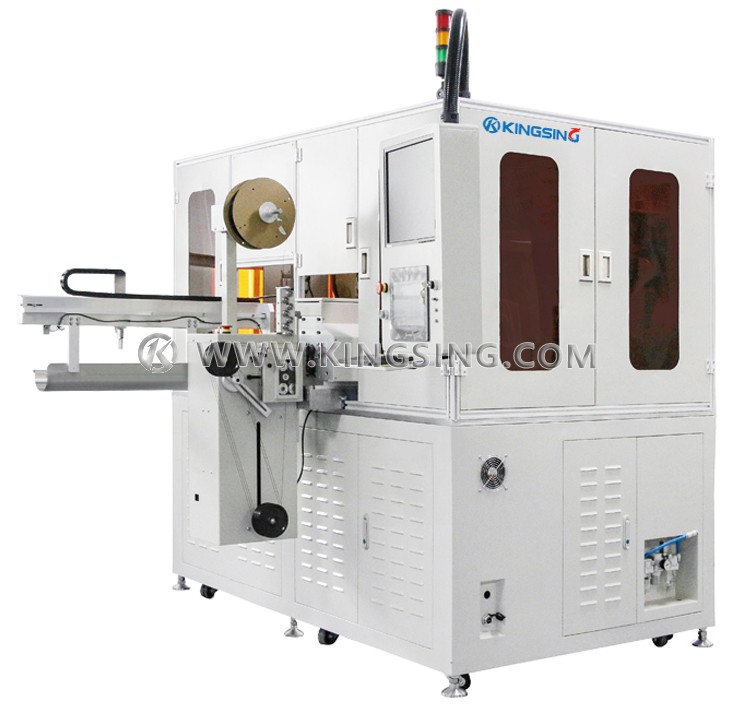

Coaxial Cable Stripping Tinning and Crimping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

The equipment can fully automatically realize the whole process of wire cutting-stripping-automatic detection-twisting core wire (optional)-core tinning (optional)-printing terminals-electrical testing-finished products and defective products respectively.

Cutting capacity: 35-380mm

Processing diameter: 0.64-1.78mm

Cutting depth setting unit: 0.01mm

Equipment utilization rate: ≥95%

Working pressure: 0.5Pa

Yield: finished product yield ≥ 99%

Dimensions: 2300*2800*2200mm

Total power of equipment: 4.5KW

Weight: 1600kg

Production efficiency: 900--1200 PCS/H (depending on the stripping length)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
