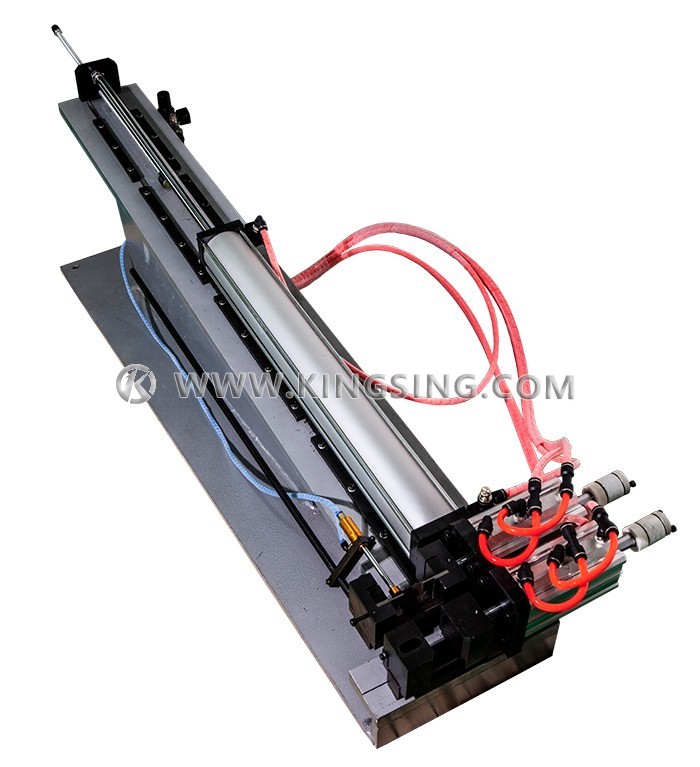

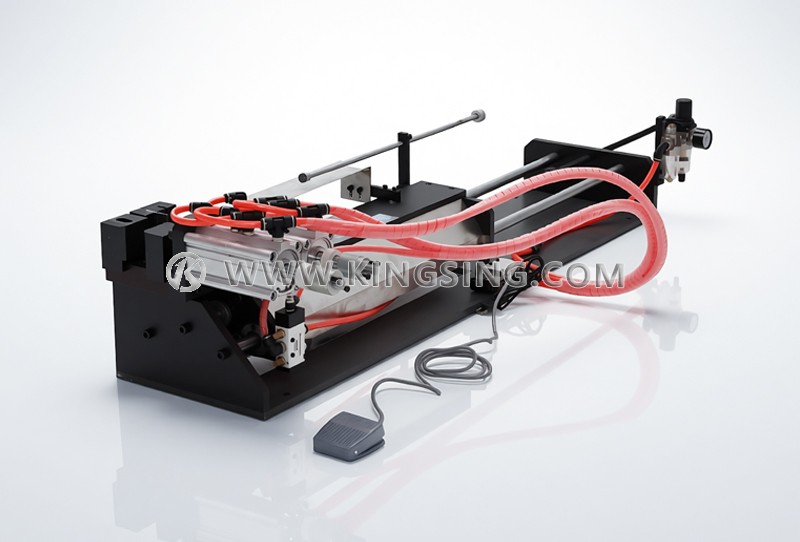

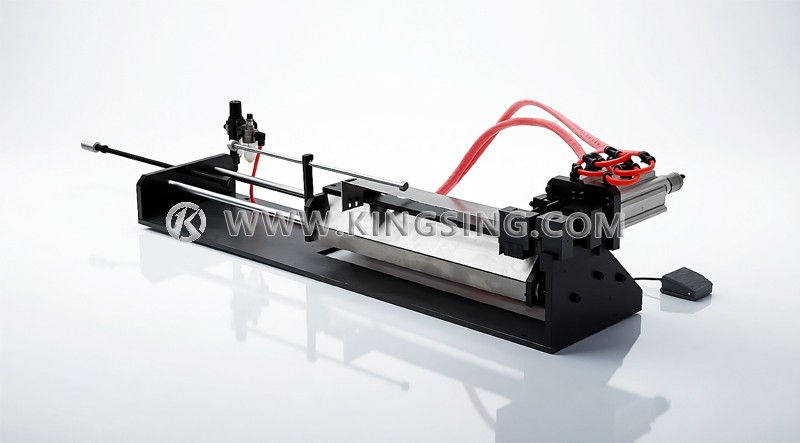

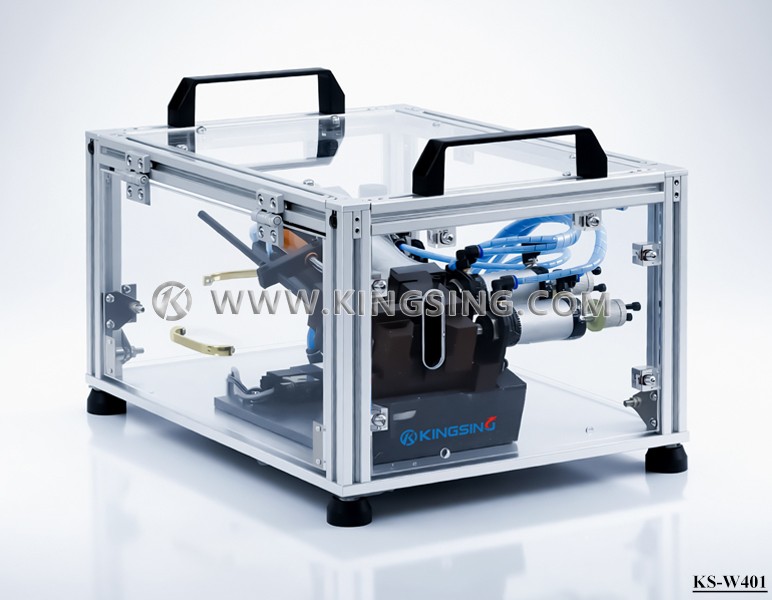

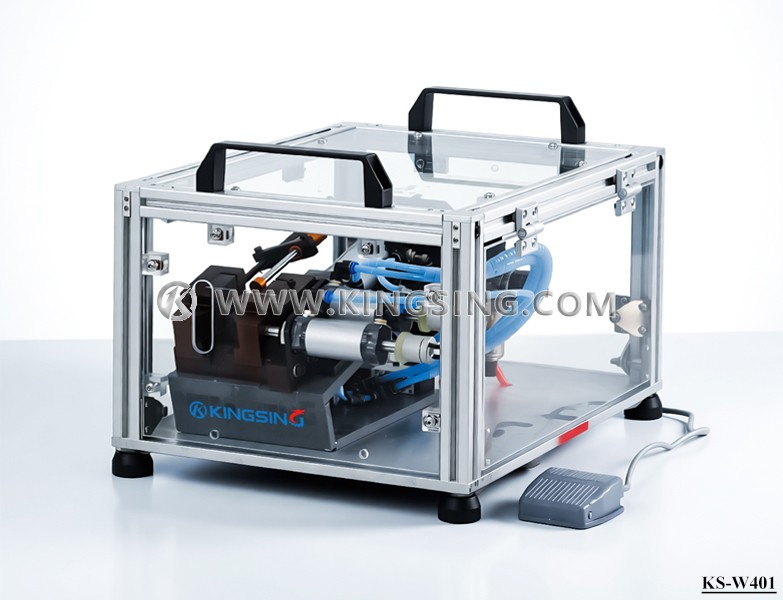

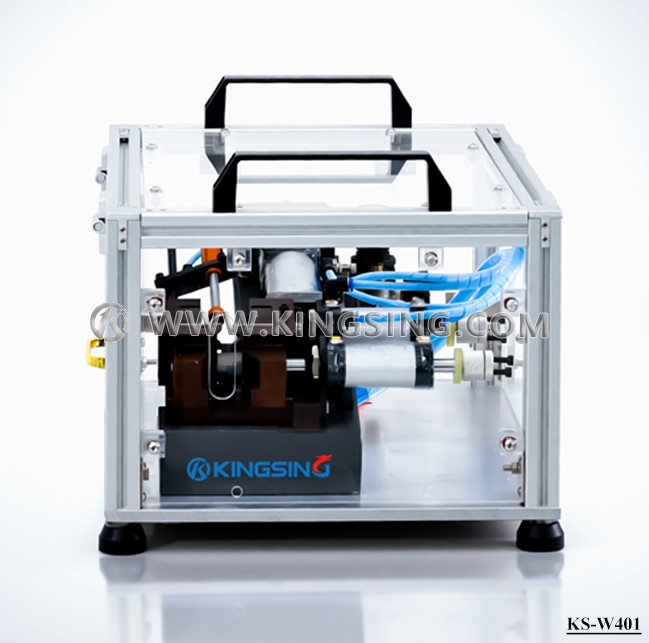

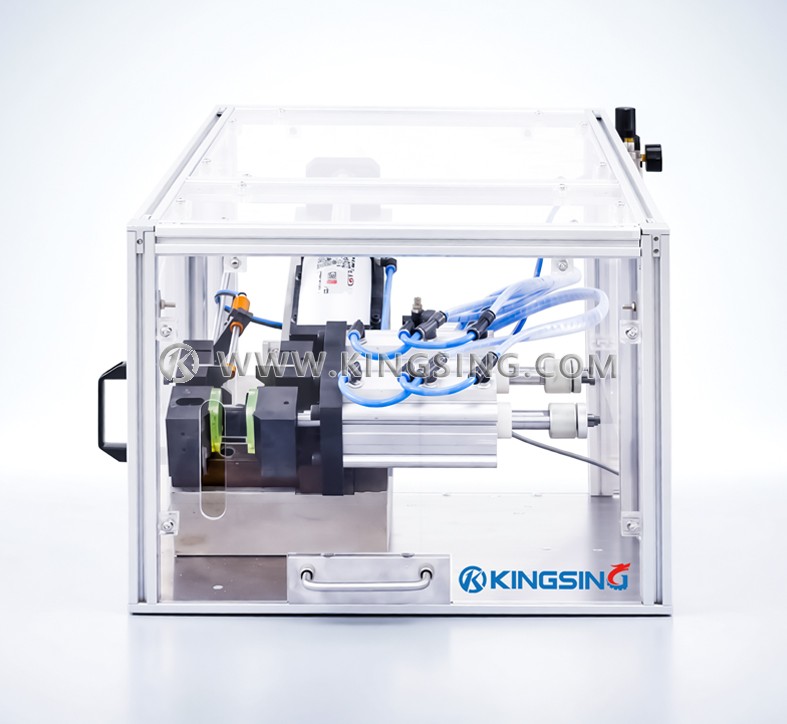

The pneumatic cable stripping machine KS-W40 series are especially designed for heavy duty processing of large cables up to 50mm diameter, the Max. stripping length can reach 700mm, it's usually used for processing multi conductor cables and power cables, different cable sizes need different blades.
Download: (1)
| Model | Wire Size | Stripping Length | Force | Net. Weight | Dimension |
|---|---|---|---|---|---|

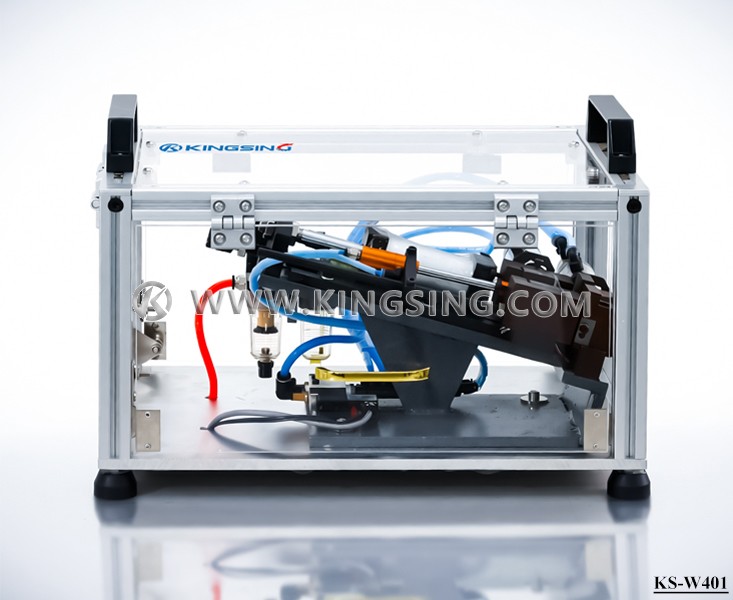

| KS-W401 | 1 - 5mm | 3 - 50mm | 37Kg | 20Kg | 40×30×27cm |
| KS-W402 | 1 -10mm | 3 - 100mm | 115Kg | 25Kgv | 48×33×28cm |
| KS-W403 | 1 - 15mm | 3 -150mm | 196Kg | 35Kg | 60×42×36cm |
| KS-W404 | 1 - 15mm | 3 - 330mm | 196Kg | 65Kg | 110×55×45cm |
| KS-W405 | 1 - 20mm | 3 - 400mm | 196Kg | 80Kg | 120×55×45cm |
| KS-W406 | 1 - 20mm | 3 - 500mm | 196Kg | 80Kg | 120×55×45cm |
| KS-W407 | 1 - 30mm | 3 - 150mm | 300Kg | 50Kg | 80×62×55cm |

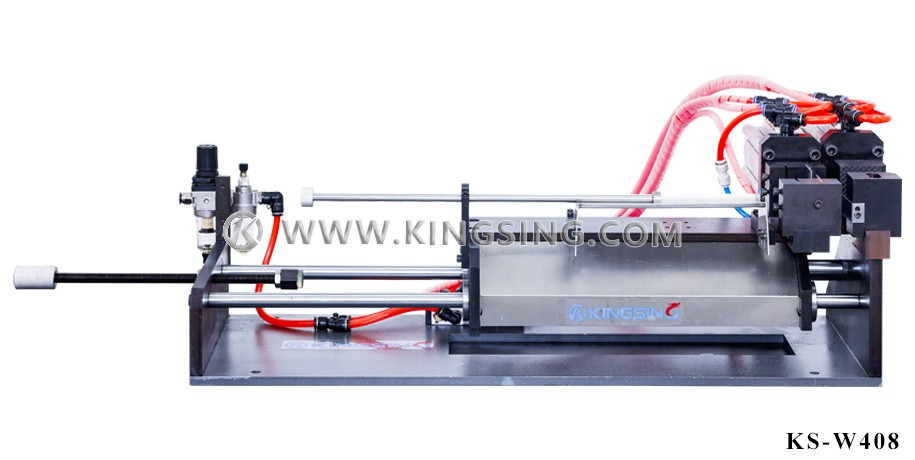

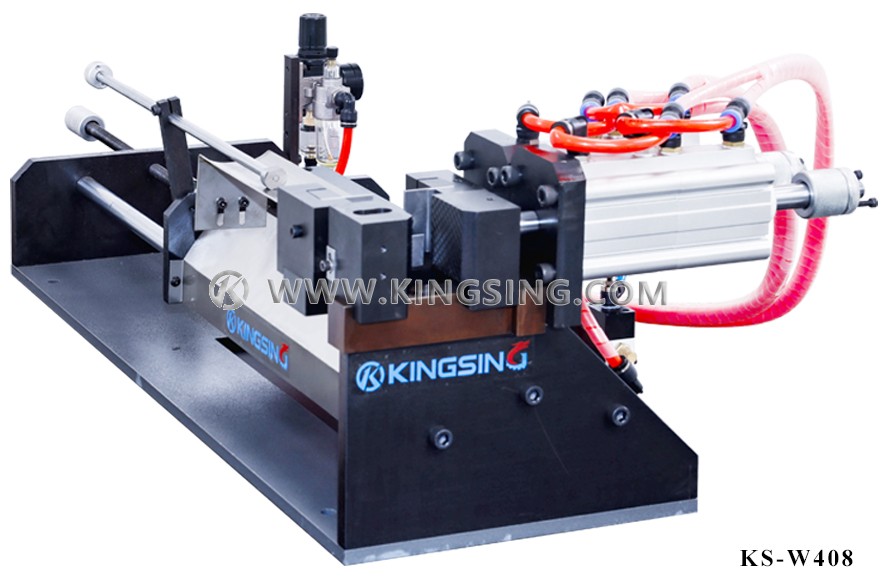

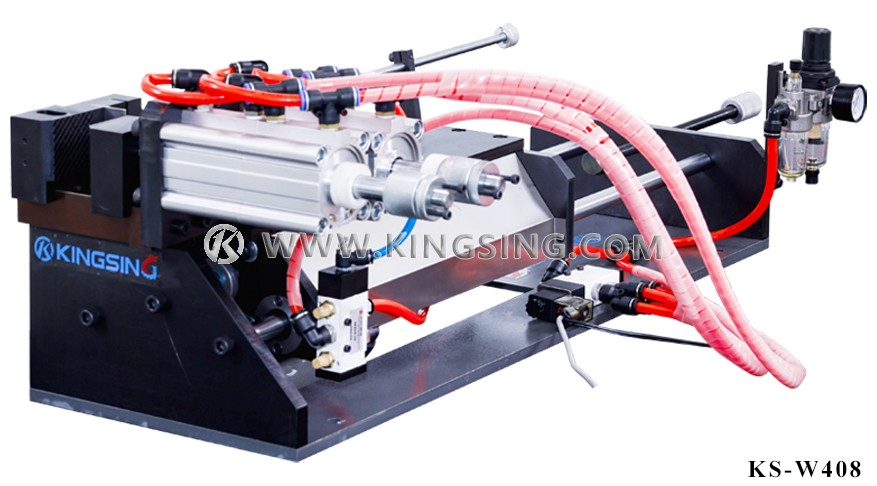

| KS-W408 | 1 - 30mm | 3 - 300mm | 300Kg | 80Kg | 80×62×55cm |
| KS-W409 | 1 - 30mm | 3 - 700mm | 300Kg | 150Kg | 180×66×58cm |
| KS-W410 | 1 - 50mm | 3 - 200mm | 500Kg | 120Kg | 80×66×46cm |
| KS-W411 | 1 - 50mm | 3 - 400mm | 400Kg | 150Kg | 135×65×45cm |
| KS-W412 | 1 - 50mm | 3 - 600mm | 500Kg | 180Kg | 170×65×50cm |
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
