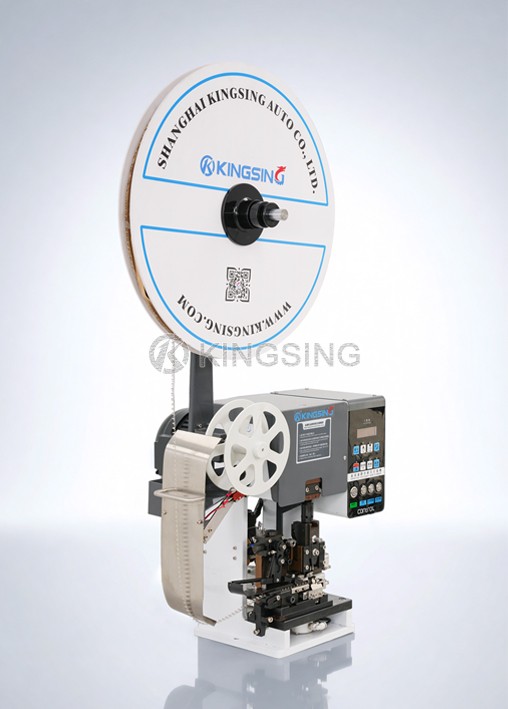

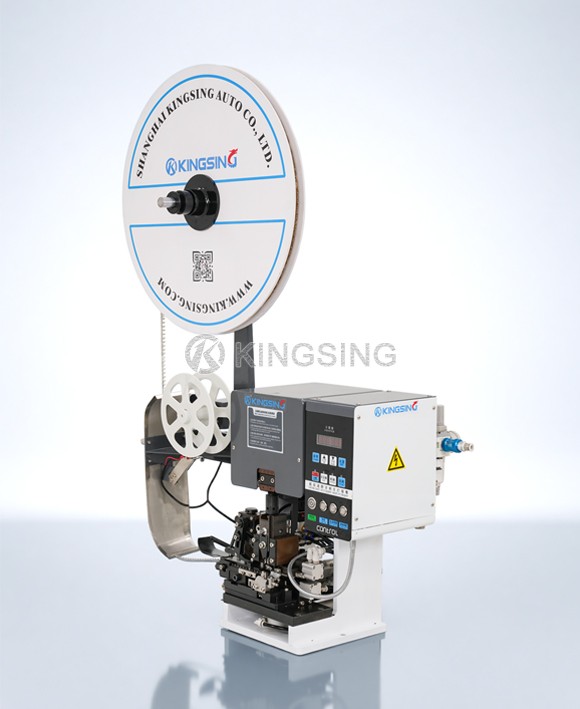

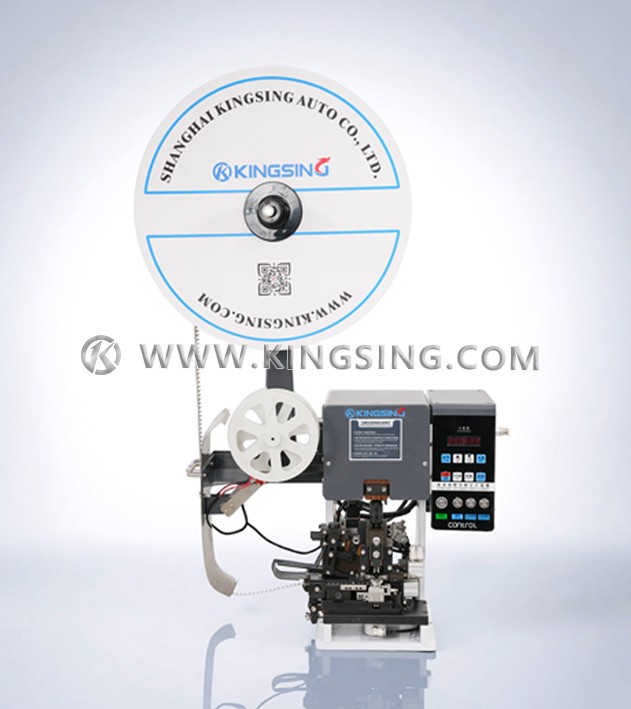

Cross-feed Wire Stripping and Crimping Machine

  • Model：KS-T152A
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Modularized structure design and mature controlling system;

  • Usage of high precision stepper motor and professional electrical and gas circuit design shift this machine towards high-efficient and modern production mode;

  • The pneumatic components are SMC, Airtac and other well-known brands, to ensure the machine stability and the parts service life;

  • It integrates wire stripping and terminal crimping, the operator only needs to put the wire into the crimping position, and the machine will automatically strip and then crimp the terminal;

  • One machine can crimp a variety of cross-feed terminals, just replace the corresponding crimping blades, and the crimping height and crimping depth are easy to adjust;

  • The crimping die of this machine can be replaced quickly, and the crimping die can also be replaced directly when crimping various terminals, which is more efficient and saves the debugging time;

  • This machine adopts frequency conversion motor for precision control, and has the characteristics of low noise, low power consumption, fast speed and high precision;

  • The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise;

  • The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean;

  • Equipped with air blowing device, it can blow away the waste insulation attached on the stripping blade to ensure the stripping effect.


Download: (1)

Applicable wire diameter: AWG18~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Terminal machine output: 1.5T (2.0T is optional)

Mold stroke: 30mm

Opening height: 215mm

Applicable terminals: cross-feed terminals (double tape terminals, terminals with tape in the middle can be customized)

Production efficiency: 1000~2000 pieces/hour

Air pressure requirement: 0.4~0.6Mpa

Working voltage: 200~240V 50/60Hz

Rated power: 400W

Net weight: 70kg

Dimensions: 500*500*550mm

Optional features:

  1. Wire end cutting: Automatically cutting the wire end, the stripping length is more accurate, and the error of manual placing wire is eliminated;

  2. Inductive start: The machine will start automatically after putting the wire into the crimping position to trigger the sensor, no need to press the foot switch.

  3. Two-wire crimping: Designed for 2-core sheathed wires, for some small terminals, it can crimp two terminals at one time;

  4. Special terminals: Such as double-band terminals, terminals with band in the middle and other types of terminals can be customized;

  5. Power enhancement: The standard model is 1.5Ton, 2Ton can be customized, the cylinder and slide table can also be customized to larger models.

  6. Crimping force monitor: Real-time monitoring the pressure curve after each crimping process, the machine will alarm automatically when the pressure is abnormal.

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
