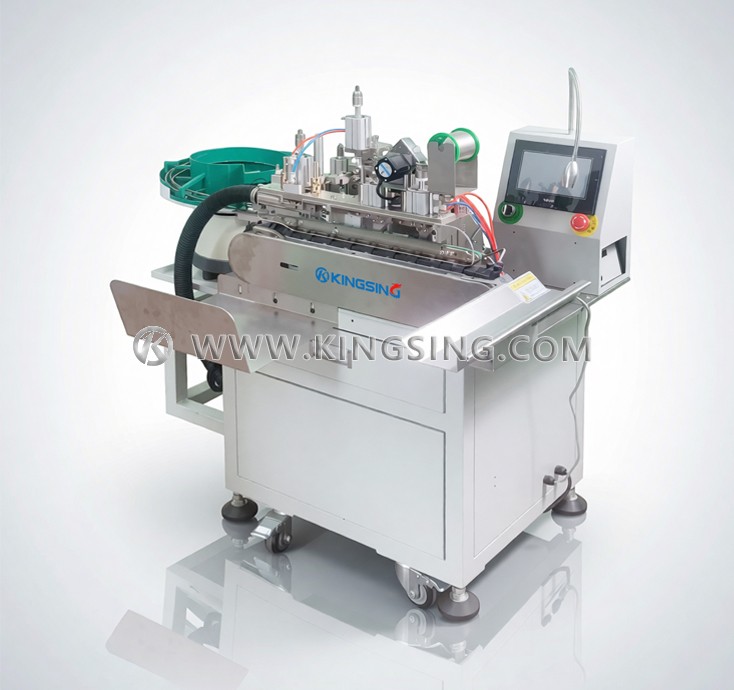

RJ45 Connector Soldering Machine

  • Model：KS-RJ45W
  • Net. Weight：150kg
  • Dimension：850×650×1250mm
Online Inquiry

This is an automatic RJ45 connector soldering machine, the connectors are fed by vibration plate, the operator only needs to manually put the network cable into the fixture, and arrange the core wires in the order of the specified color, then the machine can automatically complete the action of stripping and welding.

Color touch screen operation interface, all parameters are intuitive and easy to understand. Use this machine to save labor and improve work efficiency, and the product consistency is good.

KINGSING

Download: (1)

Available Core Wire Size: Φ0.5~1.2mm

Capacity: 1000pcs/hour

Air Source: 0.4~0.6Mpa

Power Rating: 800W

Power Supply: 220V 50/60Hz

Net. Weight: 150kg

Dimension: 850×650×1250mm

label: rj45 crimping machine
