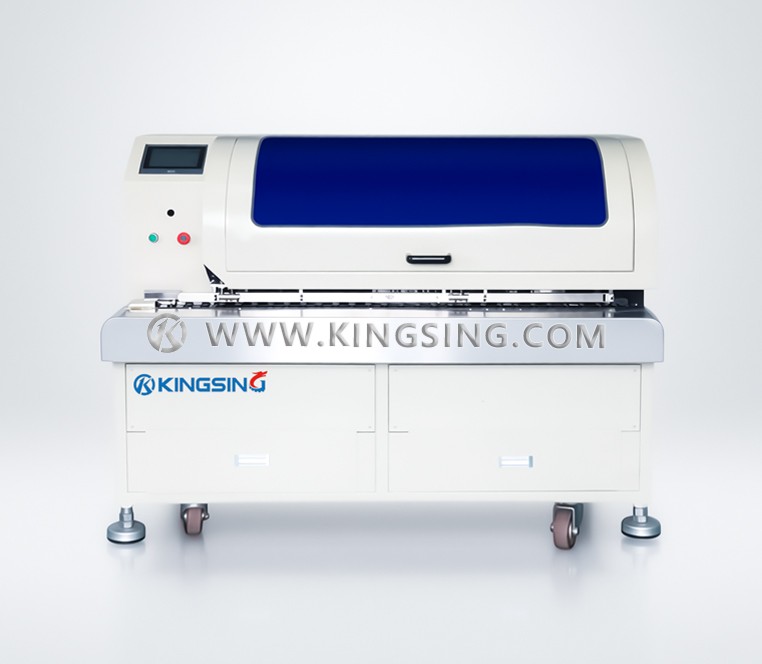

Cable Shield Brushing Twisting and Core Wire Stripping Machine

  • Model：KS-S002
  • Net. Weight：280kg
  • Dimension：1540×680×1250mm
Online Inquiry

This machine is specially designed for processing cables with braided shielding. It integrates various functions: cable jacket stripping, shield brushing and twisting, aluminium foil mylar removing, core wire stripping and twisting. It is often used to process the following wires: USB data cable, 1185 DC cable, car connection cable, microphone cable, etc.

Download: (1) (2)

Availabel Wire Size: Φ2~8mm (Can be customized)

Jacket Stripping Length: 10~40mm (Can be customized)

Capacity: 2200~2400pcs/hour

Power Supply: 220V 50/60Hz

Net. Weight: 280kg

Dimension: 1540×680×1250mm

ModelKS-S002AKS-S002BKS-S002C
Jacket Stripping√√√
Shield Brushing√√√
Shield Twisting√√√
Core Wire Stripping√√optional
Core Wire Twisting×√×
Core Wire Trimmingoptionaloptional×
Mylar Removing××√
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
