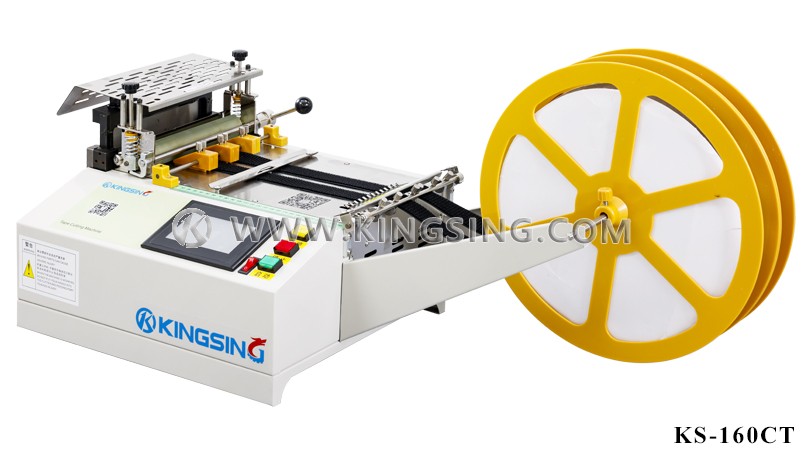

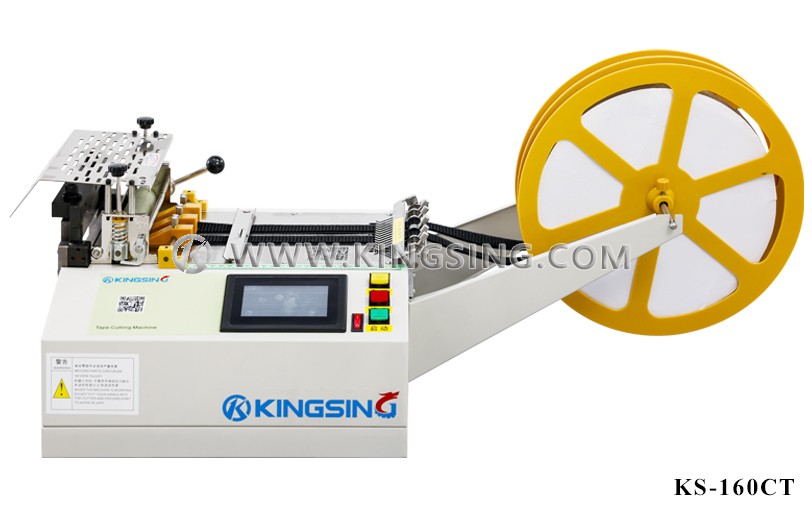

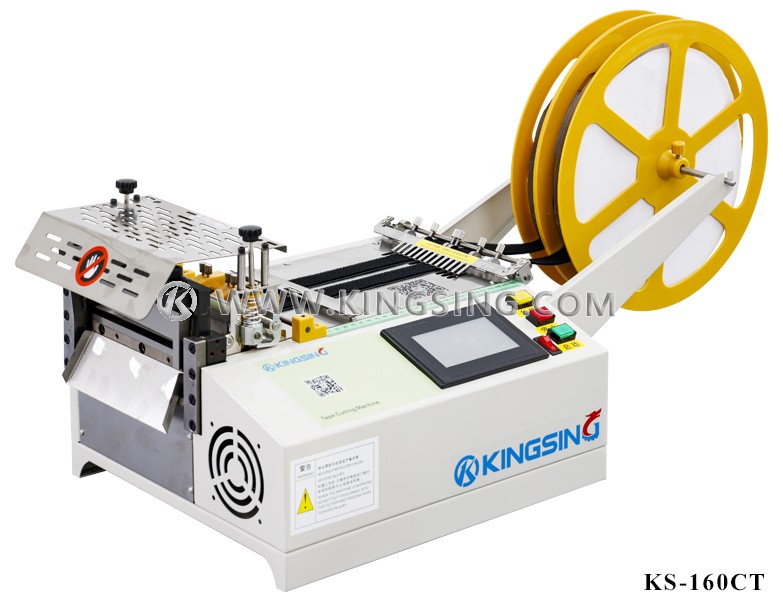

Cold Knife Belt Cutting Machine

  • Model：KS-160C
  • Max. Width：160mm
  • Blade Type：Cold Knife
  • Net. Weight：
  • Dimension：
Online Inquiry

This is a universal cold-knife tape cutting machine with a maximum tape width of 160mm. When the width of the tape is small, it can also cut multiple rolls of material at the same time, which can greatly increase the production capacity.

Sometimes we need rounded corners when cutting hook and loop tape, at this time, we can customize a special-shaped cutting die according to your needs to achieve special-shaped cutting, as shown in the picture below.

Straight Cutvelcro tape cutting machine
Round & Straightvelcro tape cutting machine
Round Cornervelcro tape cutting machine
Round Endsvelcro tape cutting machine

Max. Cutting Width:160mm

Rated Power:250W

Capacity:60~100pcs/min(depends on the cutting length)

Knife Type:Cold knife

Cutting Length:1~99999mm

Operation Temperature:0~40℃

Environment Humidity:30%~80%RH(No condensation at 40℃)

Power Supply:AC220V 50Hz(110V can be customized)

Weight:28KG

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


label: tape cutting machine cold knife tape cutting machine velcro tape cutting machine
