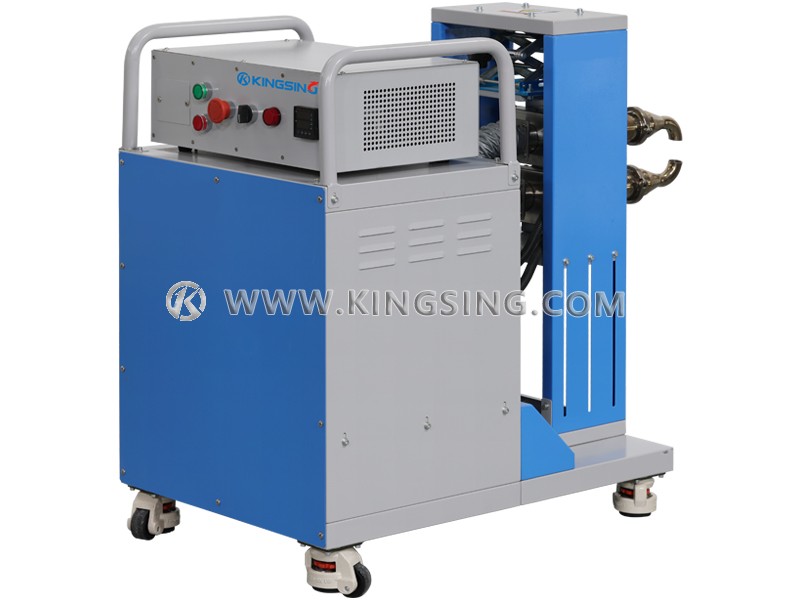

Double Vents Heat Gun

  • Model:KS-H50
  • Net. Weight:47kg
  • Dimension:910×520×850mm
  1. This is an automatic heat gun with double vents, the 2 air outlets are facing up and down, which can make the heat shrinkable tube evenly heated. The rugged design allows it to work 24 hours a day!

  2. The distance between the upper and lower air outlets can be adjusted manually to suit different products.

  3. The temperature sensors are installed on the side of the 2 air outlets, so the hot air temperature can be precisely adjusted.

  4. High-power heater makes hot air temperature can reach 350℃, so it has the ability to heat large-thickness double-wall heat-shrinkable tubes and Teflon heat-shrinkable tubes.

hot air gunhot air gun


Download: (1) (2)

Air Outlets Diameter: 50mm (25mm is optional)

Hot Air Temperature:<350℃

Temperature Accuracy: ±2℃

Actual Air Volume: 98m3/hour

Static Pressure: 198Pa

Power Rating: 4.1KW

Power Supply: 220v 50/60Hz

Net. Weight: 47kg

Dimension: 910×520×850mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
