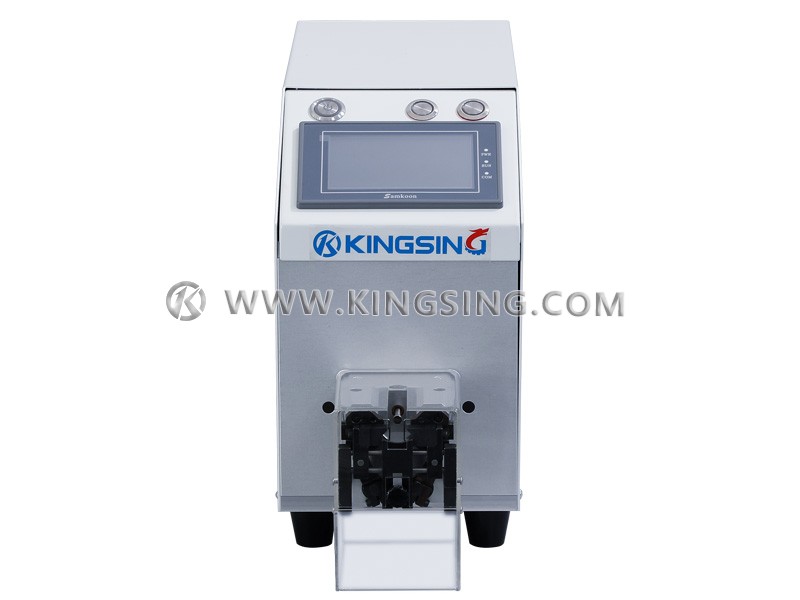

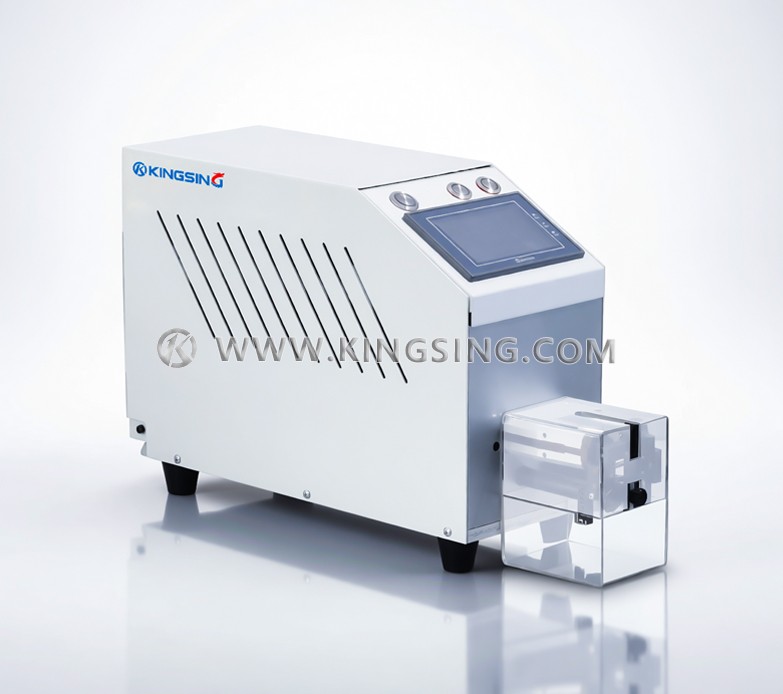

Electric Multi-core Wire Stripper Without Tool Change

  • Model：KS-W3371
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Light and portable;

  • Small size, save space;

  • Excellent price/performance ratio;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Easy operation and low technical requirements for operators;

  • The stripping parameters can be set directly in the screen;

  • lt has a multi-layer stripping function, up to 5 layers of stripping can be performed at the sametime;

  • Equipped the ejector rod induction type start mode, there is no need to connect the foot switch, which is convenient for the operation;

  • With a program memory function, you only need to switch to the corresponding program number when changing different wires, greatly save debugging time and improve work efficiency.

Download: (1)

Main Functions:Single wire stripping,multi-core wire stripping

Stripping Length:0.2~39.9mm(base on the type of wire and insulation)

Applicable Wire Size:AWG5~AWG26

Controller:Micro-computer

Drive Mode:Step Motor

Power Supply:AC 220V±10% 50/60Hz

Program Storage:Max.20 groups

Net Weight:19Kg

Power Rate:＜350W

Dimension:530*170*300mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
