Automatic Cable Cutting and Stripping Machine

  • Model：KS-W6230
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

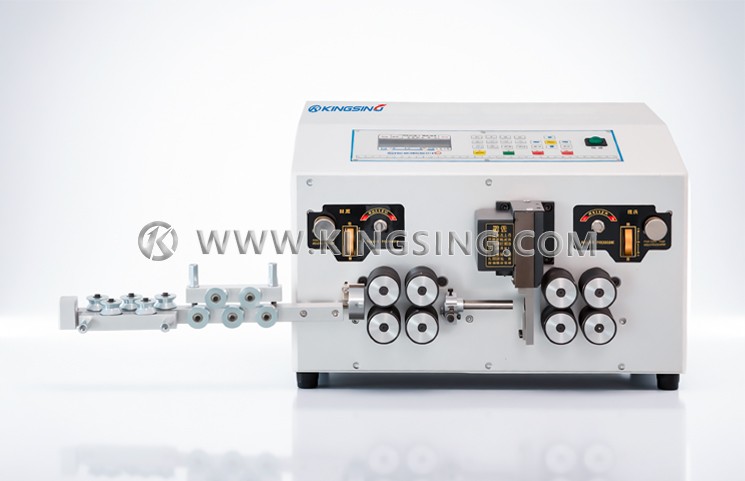

  1. This is an 8-wheel drive wire stripping machine with left-side entry, which can cut and strip BVR multi-strand copper wires up to 35mm². It uses 8 wire feeding rollers to feed the material, which improves the stripping force and feeding accuracy, and prevents the wire from slipping between the wire feeding rollers during stripping.

  2. This machine has the functions of automatic jumping catheter and automatic lifting wheel. That is, when stripping the end of the wire, the inlet guide will automatically lift up to avoid it, and when the wire end is stripped, the outlet wheel will automatically lift up to avoid it, thus greatly expanding the range of stripping length. The pressure of the wire feeding wheel can be adjusted through the knob, and it is also equipped with a wire feeding wheel gap adjustment knob and a wire straightening device, which has comprehensive functions and is affordable.

  3. The program interface is intuitive and easy to understand. Parameters such as wire cutting length, wire stripping length, depth of feed, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle program, sheath wire program, and flat wire splitting program can be switched at will. One machine supports a variety of different processing methods and is highly versatile.

  4. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • Install a safety shield, and automatically alarm and stop after opening the shield.

  • Customized blades and conduits with special shapes are used to process flat sheathed wires, double wires, flat wires and other wires. Flat sheathed wires can be stripped from the inner and outer layers.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.

Download: (1) (2)

Applicable wire core section: 2.0 ~ 35.0mm²(AWG14~2)

Cutting length : 0~99999mm

Cutting tolerance: +0.002xL (L means cutting length)

Stripping length : wire head 0~160mm, wire tail 0~80mm

Minimum glue length: 50mm

Guiding tube jumping function: Yes

Roller lifting function：Yes

Display mode: 7-inch color touch screen

Memory function: up to 99 groups of programs can be saved

Power Supply：220V/50Hz

Air pressure: 0.4~0.6Mpa

Net weight: 54kg

Dimensions: 530x530x530mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
