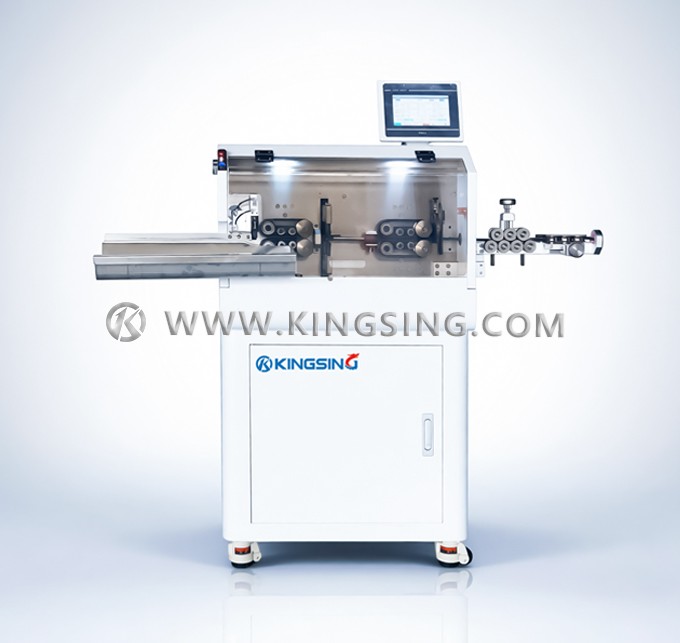

This series of wire stripping machines includes 5 sub-models (see technical parameters for details), which are specially designed for processing multi-core sheathed wires. After the outer sheath is stripped, the core wire can be stripped, and some models also support the core wire twisting function. The blade holder adopts a double-blade structure. The round blade is used for stripping the outer sheath, and the flat blade is used for stripping the core wire. The blade holder automatically shifts to switch the appropriate blade. There is a workbench at the bottom of the machine and it is equipped with universal casters for easy movement.
The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade frame is driven by a high-precision servo motor, which is fast and powerful.
The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time, when processing wires of different thicknesses. The position of the center line of the wire can always be kept unchanged, and the wire is always aligned with the center of the blade opening, which can effectively prevent the stripping from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.
This machine also has the function of automatic pulley and jump guide. The automatic pulley means that the outlet pulley can automatically open for avoidance when stripping the wire end. The jump guide function means that when the wire tail is stripped, the wire inlet conduit is automatically lifted to avoid it, which greatly increases the stripping length range.
The program memory function can store the processing parameters of different wires into different program numbers, and can save up to 100 groups of programs. When processing the wire again, the corresponding program can be called out with one key. One machine can complete the processing of various types of wires, which is very versatile.
Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:
A slitting jig can be added. For wires with a long stripping length and a tight sheath, the slitting jig can be used to split the wire sheath on both sides to reduce the stripping resistance.
Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.
Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.
Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.
Note: The take-up conveyor belt in the picture is an optional configuration, the following models do not include the conveyor belt, and the length of the conveyor belt needs to be customized according to the processing length of the wire. For example, when processing wires with a total length of less than 2 meters, a conveyor belt with a length of 2 meters can be configured. The main function of the conveyor belt is to put the finished wires straight and neatly into the receiving tray when processing long wires, so as to prevent them from falling directly on the ground and making a mess.
| Model | Applicable core area | Features |
|---|---|---|
KS-W1020A （Standard model） | 1.0 ~ 30.0mm² AWG18~2 | The inner and outer layers of the multi-core sheathed wire are stripped, excluding the conveyor belt |
KS-W1020B （High-end servo ） | 1.0 ~ 30.0mm² AWG18~2 | Both the blade holder and the feeding wheel are driven by servo motors |
KS-W1020C （Built-in manipulator） | 1.0 ~ 30.0mm² AWG18~2 | Built-in take-up manipulator, easy to install conveyor belt |
KS-W1020M （Middle stripping and scribing） | 1.0 ~ 30.0mm² AWG18~2 | With central window stripping function, also suitable for extra-long stripping |
KS-W1020T （Twisted core wire ） | 1.0 ~ 30.0mm² AWG18~2 | Support core wire twisting function |
KS-W1020S （Twisted wire + manipulator） | 1.0 ~ 30.0mm² AWG18~2 | Twisted core wire, equipped with a wire take-up manipulator, convenient for adding a conveyor belt |
KS-W1020H （50mm² enlarged） | 1.0 ~ 50.0mm² AWG18~1/0 | The function is enlarged, the maximum can strip 50mm² wire |
Full stripping length range: wire head 0~120mm, wire tail 0~80mm
Maximum half-stripped length: wire head 1000mm, wire tail 350mm (according to wire material)
Maximum cutting length: 100m (longer can be customized)
Operation interface: 7-inch color touch screen
Program saving: up to 100 groups of programs can be stored
Machine Appearance: Multiple options (same function, but different appearance)
Cutting accuracy: 0.002*L (L refers to the cutting length)
Working voltage: 220V 50Hz
Rated power: 1000W
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
