Terminal Crimping Machine

  • Model：KS-T555
  • Net. Weight：
  • Dimension：
Online Inquiry

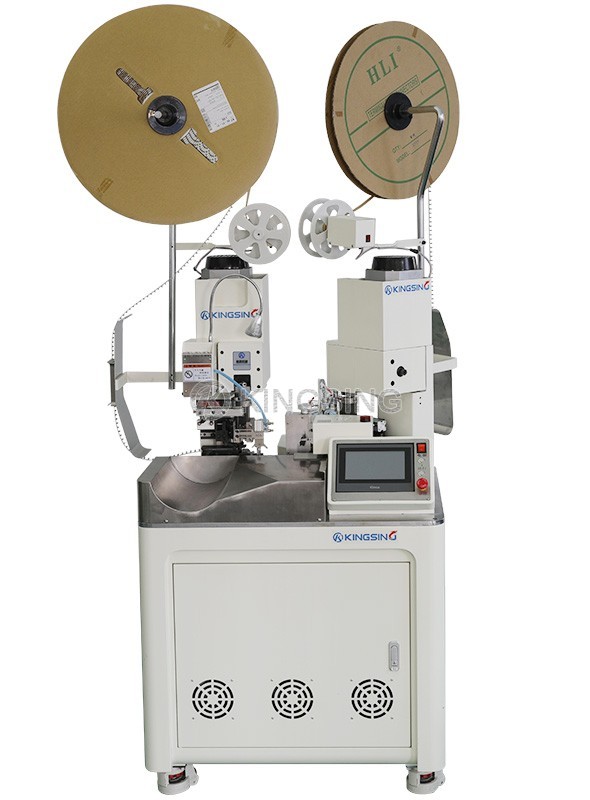

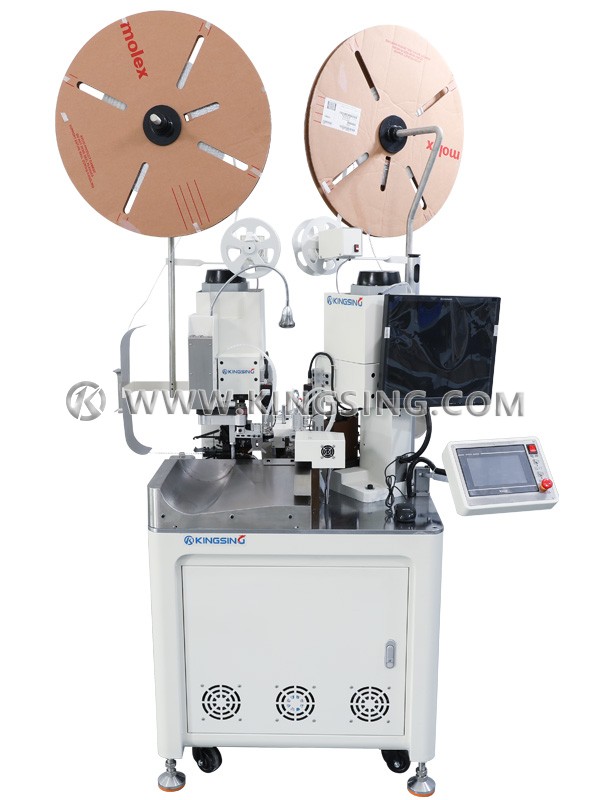

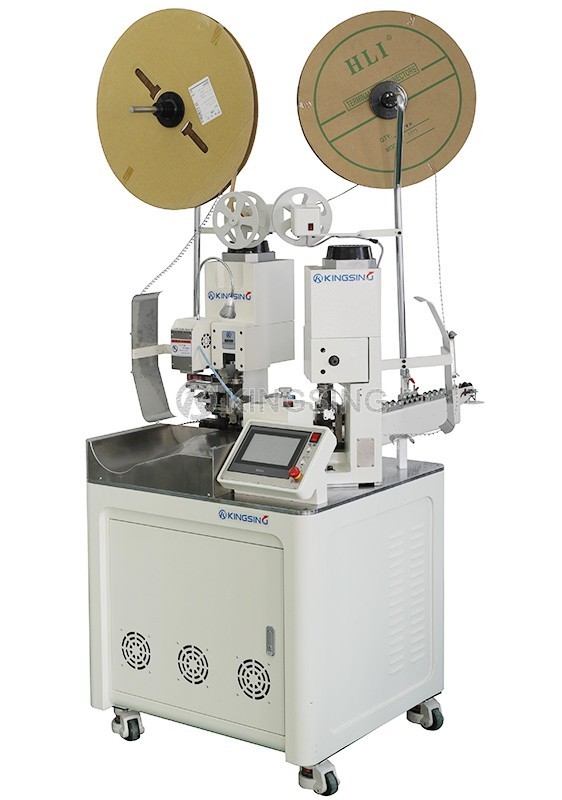

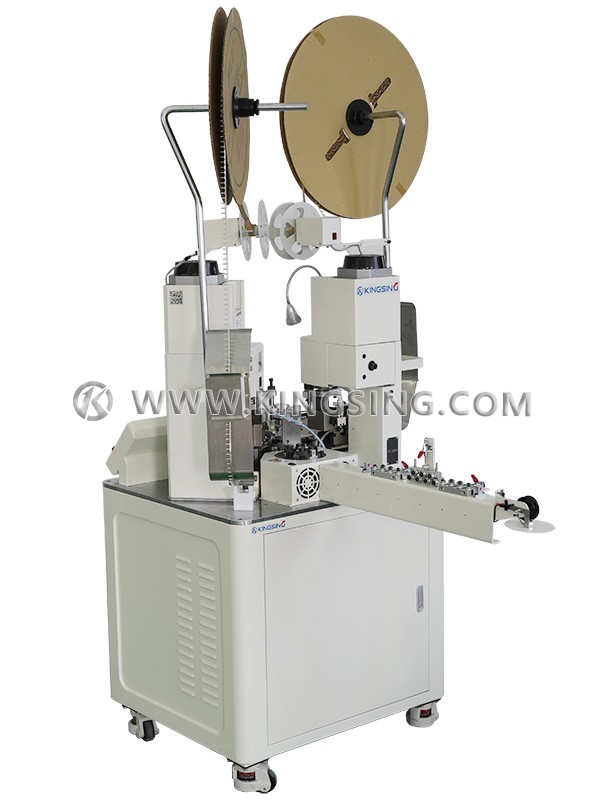

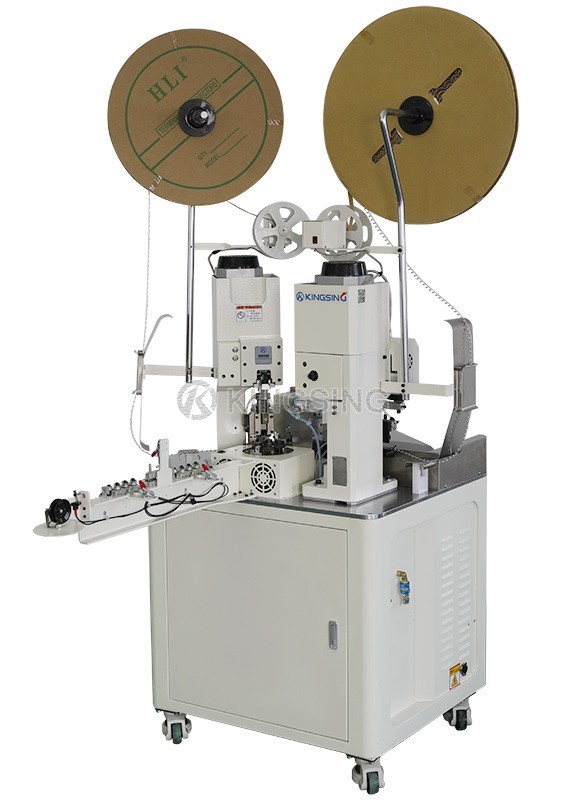

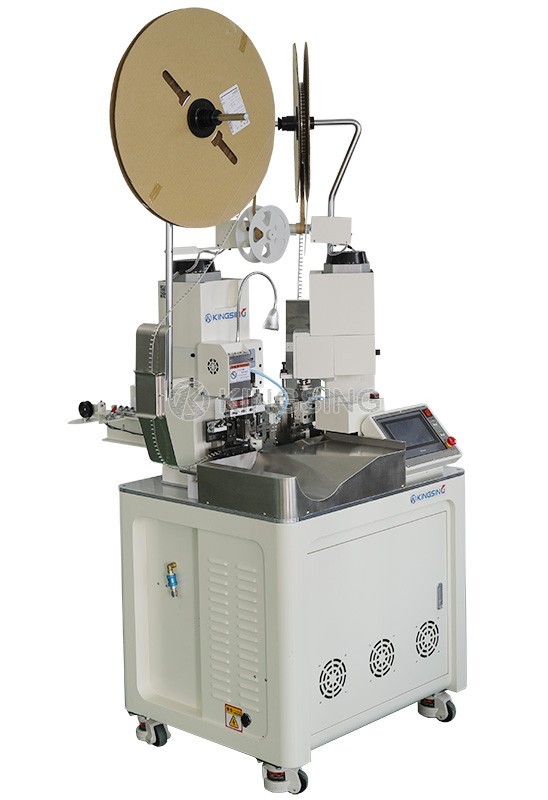

This is a fully automatic 2-ends wire cutting stripping and crimping machine for AWG30~AWG16.

The highly flexible and electronically controlled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.

You can also save you settings in a program file number, so that you can call it out easily next time.


Download: (1) (2) (3) (4) (5)

Available Wire Gauge: AWG30 ~ AWG16
Cutting Length: 45 ~ 9999mm
Stripping Length: 0 ~ 10mm
Capacity: 3000~4500pcs/hour
Length Accuracy: ±(0.5+L*0.002)mm (L=total length)
Crimping Force: 2.0Ton
Applicators: 30mm or 40mm stroke for optional
Air Pressure: 0.4 ~ 0.6Mpa
Power Supply: 220V/110V 50/60Hz
Detectors: wire run out, low air pressure, terminate error. (Crimping force monitor is for optional)
Dimension: 700×800×1500mm
Net. Weight: 358Kg
