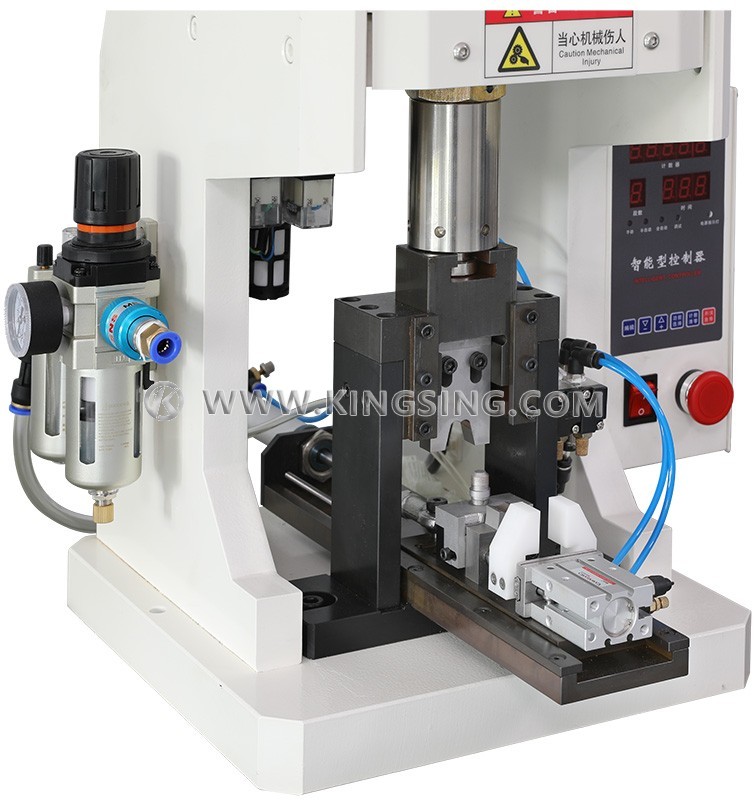

10T Pneumatic Hydraulic Crimping Machine

  • Model:KS-T526
  • Net. Weight:
  • Dimension:
  1. This is a pneumatic-hydraulic hybrid drive crimping machine. Compared with the traditional hydraulic crimping machine, its speed is greatly improved. The hydraulic mechanism only starts to work in the final crimping stage, and it only takes about 3 seconds to crimp a terminal.

  2. This machine is suitable for crimping 10~90mm2 wires, and is widely used in wire harness processing industries such as new energy and electric vehicle charging piles. Support a variety of applicators, such as: hexagonal applicators, quadrilateral applicators, four-point crimping applicators, pneumatic feeding applicators, B-shaped crimping applicators, etc. One machine can crimp a variety of different terminals, just change the corresponding applicator.

    KINGSING

Download: (1) (2) (3) (4)

Crimping force: 10T

Applicable wire diameter: 10~90mm2

Crimp stroke: 40mm (the hydraulic stroke is 10mm)

Closed height: 120mm

Power supply: 220V 50/60Hz

Net weight: 150kg

Dimensions: 520*600*1050mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
