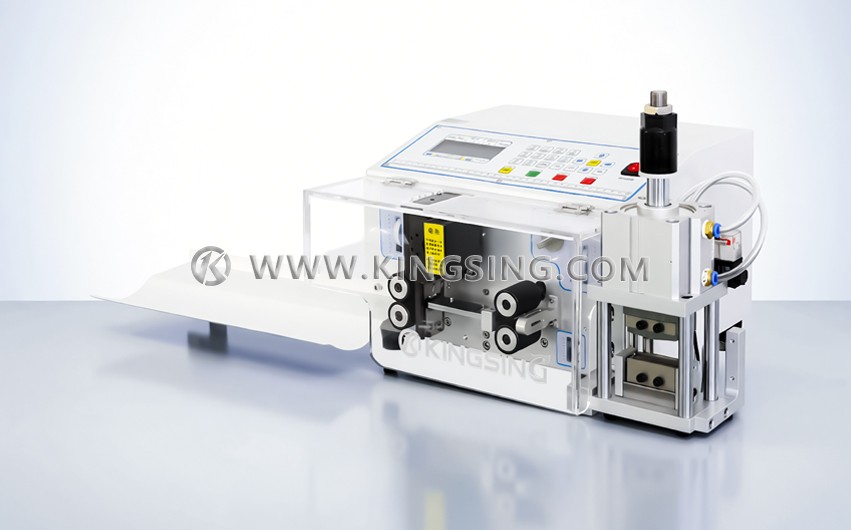

Ribbon Cable Cutting & Stripping Machine

  • Model：KS-W609 Series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is a wire stripping machine specially designed for processing double wires and flat wires. It can be equipped with a wire splitting mold to realize automatic wire cutting, wire stripping, and splitting at both ends. There are punching type and scribing type for wire distribution mold, and it is recommended to use scribing type wire separation mold when the number of pins is small.

  2. The program is powerful, supporting functions such as full stripping, half stripping, and middle stripping. It has a program memory function, which can save the processing parameters of different wires in different program numbers. When switching wires, the corresponding processing parameters can be called out with one key.

  3. The program interface is intuitive and easy to understand. Parameters such as wire cutting length, wire stripping length, depth of feed, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle stripping program, and sheath wire program can be switched at will, and one machine supports many different processing methods, which is very versatile.

  4. Support non-standard customization, our company has strong research and development capabilities, and can customize corresponding functions according to customer needs. For example, a spraying machine or a wire number hot stamping machine can be added to realize stripping while coding. Blades and conduits can be customized to process special wires such as flat sheathed wires and double wires; a safety shield can also be selected, and the machine will automatically alarm and stop after opening the safety shield.

Download: (1) (2) (3)
ModelSplit wire mold typeThe main advantage
KS-W609ANoAffordable, no split wire function
KS-W609BCylinder punchingSuitable for cables with a large number of PINs and webbed cables
KS-W609CCylinder scribingThe length of the splitted wires can be set freely, suitable for flat wires with a small number of PINs
KS-W609DElectric punchingNo need for air source, use motor instead of cylinder punching and split wire

The maximum width of the cable: 15mm (maximum 10Pin)

Maximum stripping length: wire head 0~30mm, wire tail 0~30mm

Cutting length: 0~100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Minimum glue length: 35mm

Program memory function: up to 100 groups of programs can be saved

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
