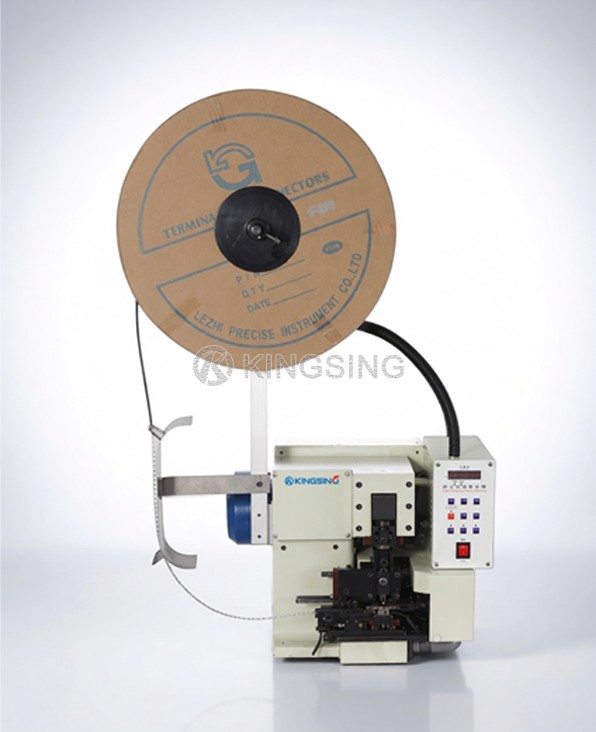

Cable Wire Stripping & Crimping Machine

  • Model:KS-T910
  • Net. Weight:
  • Dimension:

  1. This is a pure electric wire stripping and crimping terminal machine, which can work when plugged in. It is suitable for crimping various cross- feed terminals. After putting the wire end in the crimping position, the machine will automatically strip the wire first and then crimp the terminal.The combination of stripping and crimping terminal processes can effectively reduce labor costs and improve product consistency, especially for sheathed core wire stripping and crimping terminal operations.

  2. One machine can crimp many different cross-feed terminals by simply changing the corresponding crimping blades. The applicator of this machine is fixed by the quick-loading bayonet, which supports quick applicator replacement. When crimping multiple terminals with one machine, the applicator can also be replaced directly, so that different products can be switched more quickly.

  3. This machine is a classic of mechanical transmission. All moving parts are driven by a high-precision variable frequency motor. The stripping action is completed by mechanical transmission, which takes almost no extra time. The production efficiency is basically the same as that of ordinary crimping machines without stripping function. The stripping length is precise, and the depth of the cutter can be adjusted through the fine-tuning knob with a scale, and the accuracy of each grid can reach 0.01mm. The crimp position and crimp height can also be finely adjusted.



Download: (1)

Applicable wire diameter: AWG32~16

Stripping length: 0~12mm

Crimping strength: 1.5T

Crimp stroke: 30mm

Maximum pitch between terminals: 20mm

Production efficiency: 2000~3000 pieces/hour

Power supply: 220V 50Hz

Motor power: 550W

Net weight: 75kg

Dimensions: 360*390*390mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
