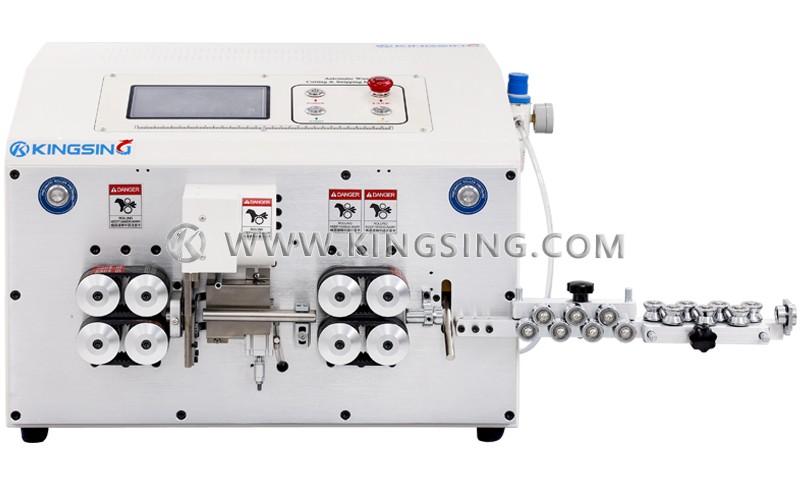

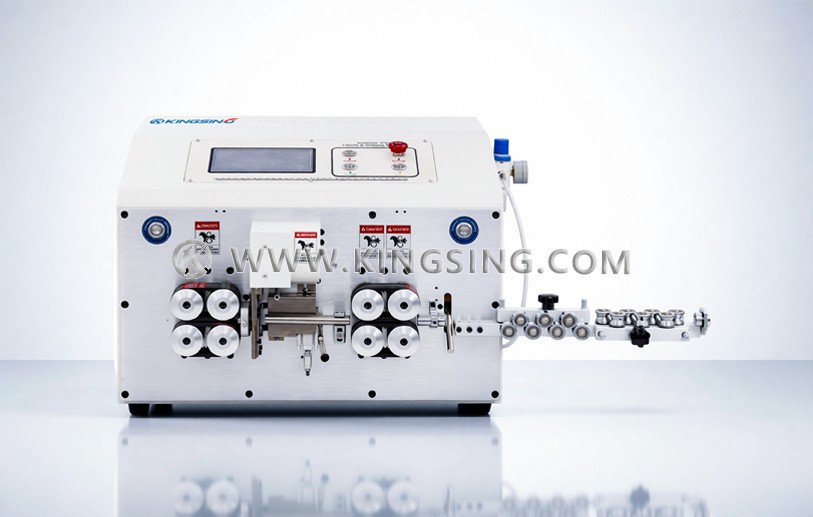

Electric Lifting Wheel Internal-External Integrated Wire Stripping Machine

  • Model：
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry
Download: (1)

Display mode: 7-inch touch screen

Outer diameter of round sheath: ￠2-12 mm

Number of core wires: 2 cores, 3 cores, 4 cores, 5 cores

Core wire stripping length: wire head 0-20mm, wire tail 0-20mm

Stripping accuracy: ±0.2mm

Cutting length: max 100m

Round sheath stripping length: full-strip of wire head 1-210mm, full-strip of wire tail 1-110mm

Max diameter of conduit: ￠13

Drive mode: 8-wheel drive

Power supply: 220V/110V 50HZ/60HZ

Air pressure: 0.8Mpa

Power rating: 850W

Net weight: 90KG

Dimension: 560×460×400mm
