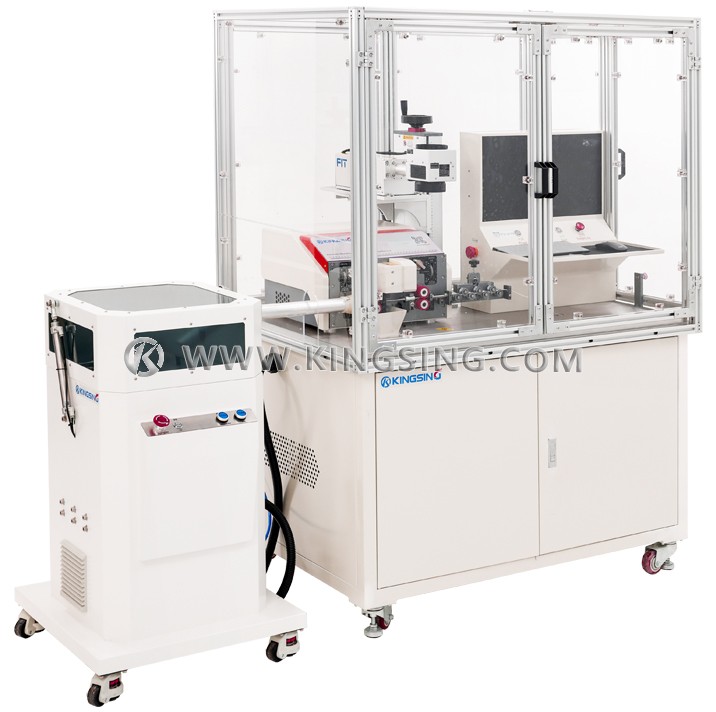

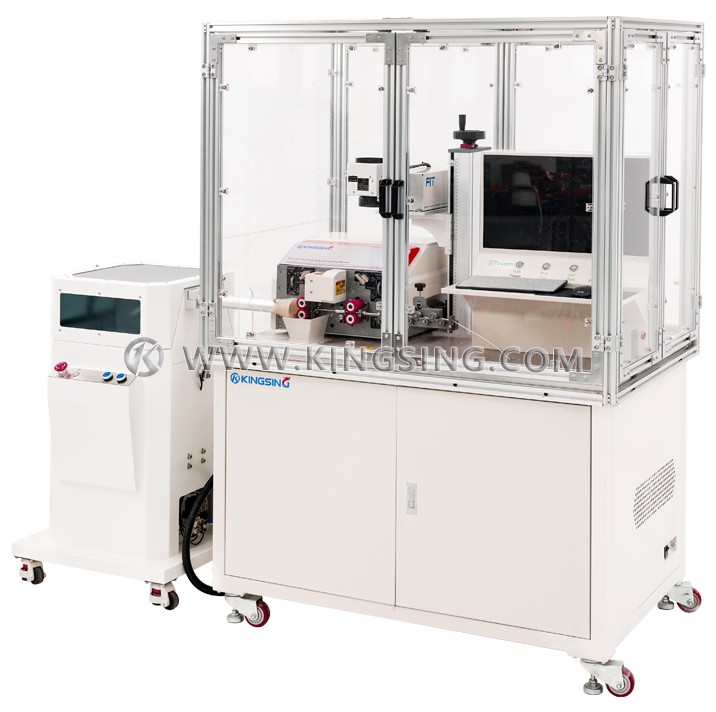

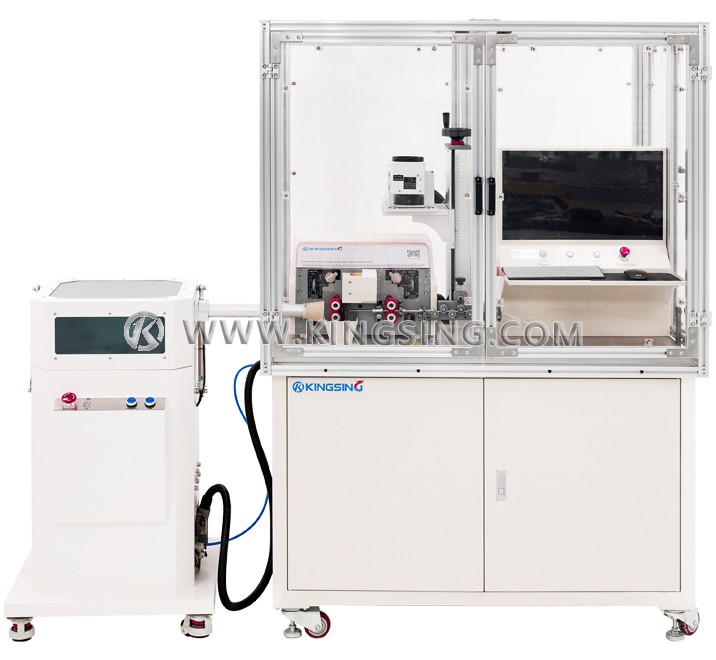

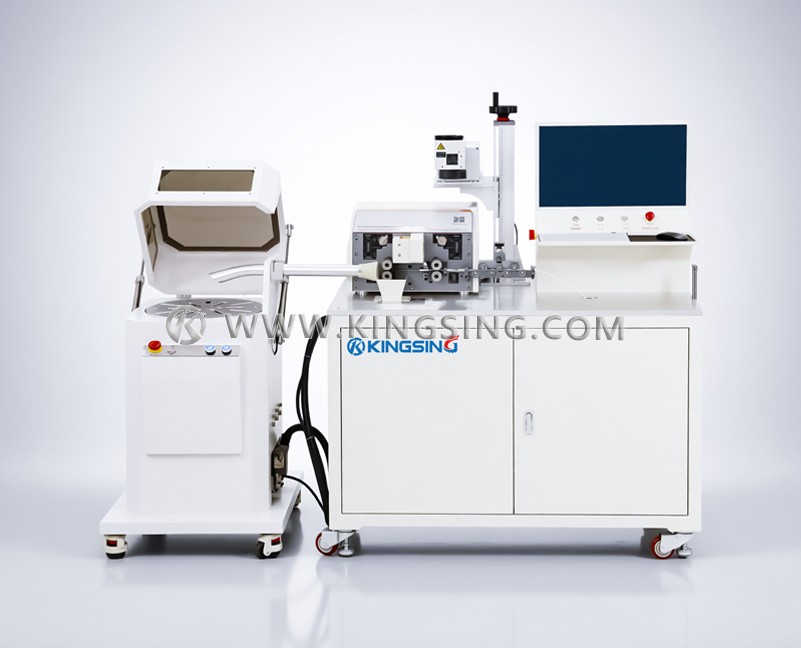

Wire Stripping & Laser Marking Machine with Coiling System

  • Model:KS-W1010LC
  • Wire Size:
  • Net. Weight:
  • Dimension:

1.     This machine adopts computer host + industrial personal computer + 21.5-inch display, all stripping size parameters are controlled by industrial computer operation.

2.     The machine uses advanced laser coding device, which can complete the laser coding before the wire cutting and stripping. The coding content can be modified in the industrial computer setting according to the different production needs of customers, so the efficiency is faster and more stable.

3.     The wire cutting machine adopts all-metal straightener one-key fast switch to press the wire, the wire is straighter and more accurate, the motor controls the conduit to feed the wire, and the tool holder adopts imported material heat treatment and grinding process. Servo motor is used to control wire entry wheel, wire exit wheel and tool holder.

4.     Mainly used for electronic wire, silicone wire, Teflon wire, glass fabric, isolation line, sheath line and so on. Automatic cutting, peeling, half stripping, full stripping, laser coding, wire winding one-time completion. Save labor and improve production efficiency.

5.     Automatic wire stripping laser coding machine + coiling machine is composed of computer host + industrial control host + display + high-speed wire cutting unit, set marking, wire cutting and both ends of the peeling + wire winding and wire integration of automatic equipment, the use of imported lasers, electro-optical conversion efficiency, stable operation, high precision, no consumables, Advanced laser coding technology enables the wire to easily mark the required content before cutting, and can also be flexibly modified according to the different needs of the customer's production line.

6.     The winding machine adopts servo electric control, so that the wire after laser coding, cutting and stripping without manual winding, convenient and fast.


Download: (1)

Operation page: Computer host + industrial PC + 21.5-inch display

Cutting tolerance: 0.002*L (mm)

Stripping length: Wire head 0-30mm   Wire Tail 0-30mm

Guide tube control method: Motor

Cutting length: 0.1-99999.9mm

Scope of application: 0.1-6mm2(support customization)

Driving mode: 4-wheel drive

Coding mode: Encoder (reverse, non-reverse) Fixed line speed

Reel Diameter: 380mm

Rolling Diameter: 200-360mm

Rewinding speed: 1.5m/s

Driving method: servo motor

Power supply: 220V 50-60Hz
