Wire Single-ended Combination Crimping and Tubing Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

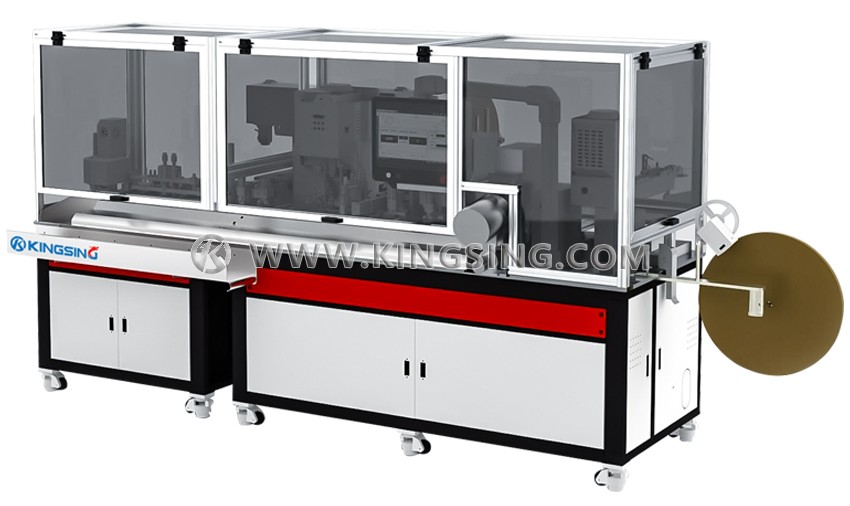

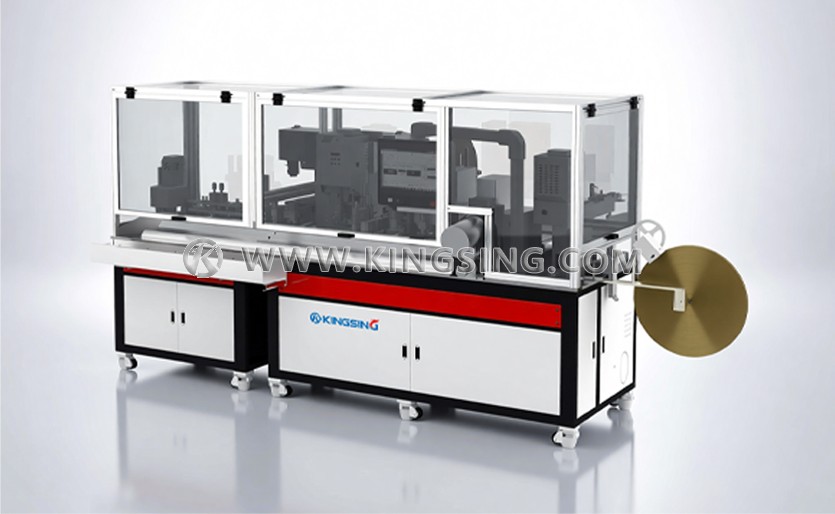

  • One type of wire, one type of heat shrinkable tube (round tube/flat tube), combined crimp terminals (common mold production of multiple positive and negative chain terminals), and one type of plastic housing are online at the same time to achieve single specification mass production;

  • Counterweight single-axis pay-off machine (used for shaft installation) or equipped with pay-off reel (used for small reels);

  • Equipped with UV laser coding machine (optional thermal transfer printing machine) for marking heat shrink tubes. The processing technology of engraving the wire number on the heat shrink tube after heat shrink molding is adopted to ensure that the content of the wire number is visible from the front;

  • Equipped with automatic connector feeding and shousing insertion unit, the housing vibrating plate is automatically loaded, the terminal is automatically positioned and inserted into the housing through a three-axis mechanical arm, and the insertion housing is in place and the pull-out detection is completed simultaneously；

  • Equipped with pressure management device and optional CCD image detection;

  • The supporting data conversion software can remotely dispatch work orders through the internal network and automatically and quickly convert them into production instructions;

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).


Power supply: AC220V 50HZ single phase

Wire length: large wire 120mm~600mm; small wire 50mm~200mm

Stripping length: double ends, 0-15mm

Heat shrinkable tube: round tube or flat tube suitable for wires

Production efficiency: 10~12 sets/minute

Air pressure: 0.5~0.7Mpa

Dimensions (L×W×H): 3000*1800*1800mm

Terminal types: Chain strap insertion pin and insertion sheath terminal

Tube length: fixed one tube length, special lengths of 15mm, 20mm, 25mm, 30mm can be customized

Wire diameter: large wire AWG12~AWG8; small wire AWG26~AWG22; PVC electronic wire and other types of wires

Wire number tube identification: laser coding, which can be engraved with various characters, numbers, Chinese characters, etc., can be engraved in double rows, can be engraved on both sides, and can be equipped with a thermal transfer coding machine.

Detection device: Detection of wire presence, presence detection of heat shrink tube, terminal crimping monitoring, Insert housing pullout detection

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
