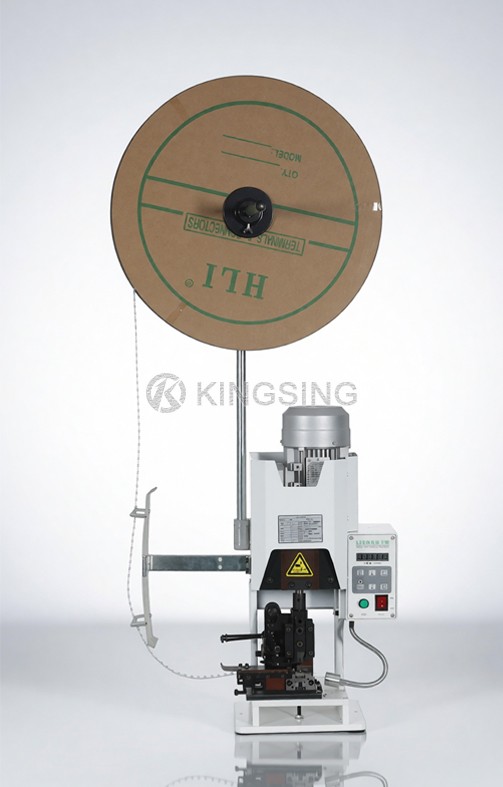

Semi-automatic Crimping Machine

  • Model：KS-T150A
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is an economical silent crimping machine, which can crimp all kinds of cross-feed terminals, direct-feed terminals, U-shaped terminals, flag-shaped terminals, double-tape terminals, tubular insulated terminals, bulk terminals, etc. When crimping different terminals, you only need to replace the corresponding crimping applicators, and support the use of standard applicators for various OTP bayonets.

  2. The crimping mechanism is driven by a variable frequency motor, and the motor starts to work only when crimping. The noise is smaller than that of the traditional crimping machine, and it saves more power. There is a counter on the control panel, and parameters such as crimping speed and crimping force can also be set. This machine is compact in structure and affordable, and is widely praised by customers.

Maximum output: 1.5Ton

Applicable terminals: cross-feed or direct-feed tray-mounted terminals, bulk terminals, flag-shaped terminals, etc.

Applicator type: OTP cassette applicator, #2000 cassette applicator, convenient applicator replacement

Power supply: 220V/50Hz

Air pressure: pure electric, no need to connect to the air source

Power rating: 550W

Net weight: 40Kg

Dimensions: 280×250×600mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
