Double Wire Combined Crimping and Shrink Tube Insertion Machine

  • Model：KS-A333T
  • Net. Weight：
  • Dimension：
Online Inquiry

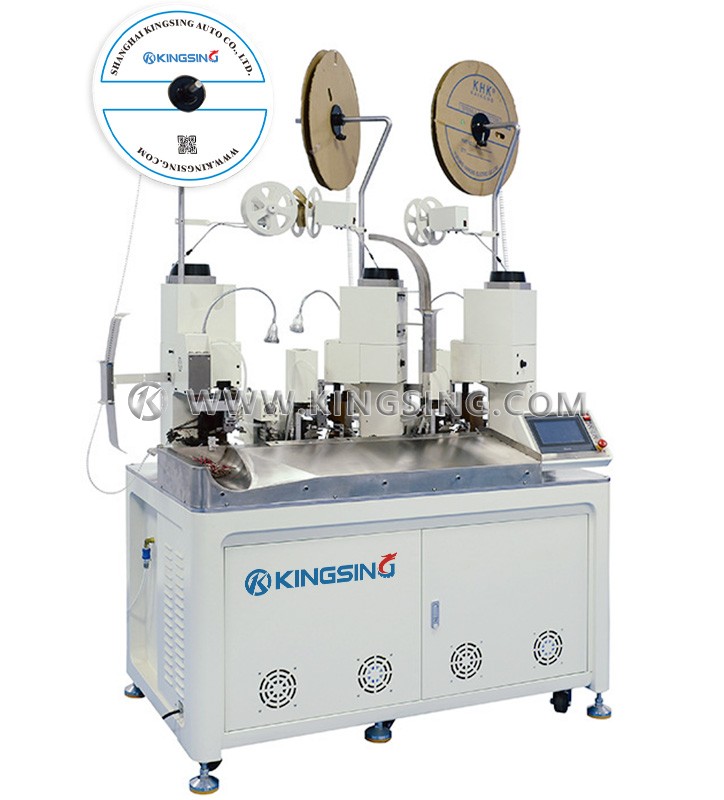

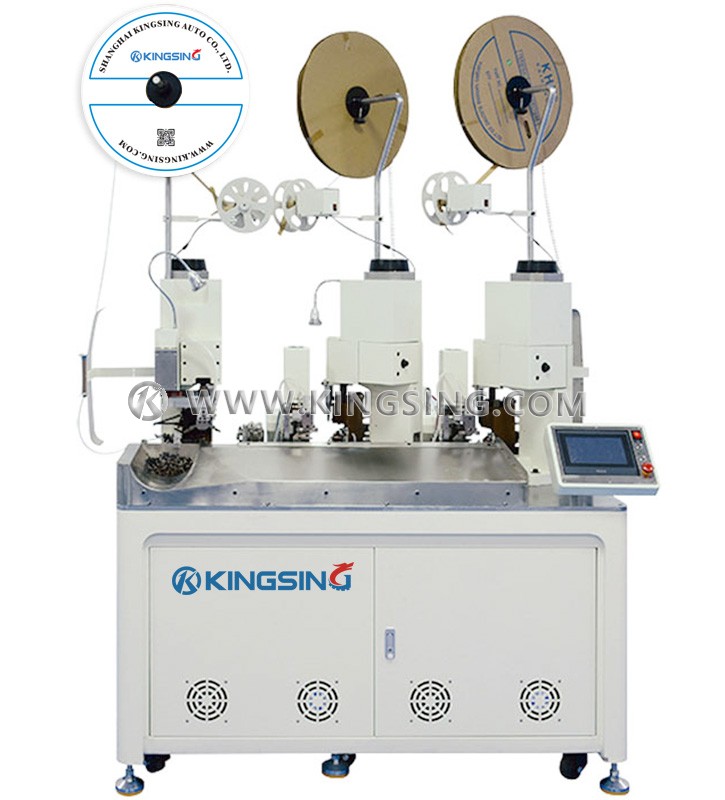

  1. This is a fully automatic two-wire combined crimping and inserting heat shrinkable tubing machine. There are 2 sets of independent wire feeding mechanisms and 3 terminal crimping stations on the machine, so it supports simultaneous processing of 2 wires with different diameters and crimping 3 different terminals. This machine also has the function of inserting heat shrinkable tubes. Supports insertion of 2 heat shrink tubing, one on one end of the combination crimp and the other on one of the terminals on the other end. The machine has a built-in rotation mechanism, and the two wires can be rotated 90 degrees after being combined, so they can be crimped side by side, or stacked up and down.

  2. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program, for example, one of the wires can be closed, and it can be used as an ordinary double-head automatic terminal machine. When replacing a terminal, only the corresponding crimping applicator needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

Applicable wire diameter: AWG28~16 (0.1~1.5mm2)

Cutting length: 50~9999mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.

Production efficiency: 3000~4000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.8Mpa

Power rating: 2500W

Power supply: 220V 50/60Hz (110V can be customized)

Net weight: 420kg

Dimensions: 1400*1300*2000mm

Optional configuration: long wire conveyor belt, safety shield, crimping force monitor, visual inspection system, servo terminal machine

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
