Automatic Wire Stripping & Hot Stamp Marking Machine

  • Model：KS-W609HP
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

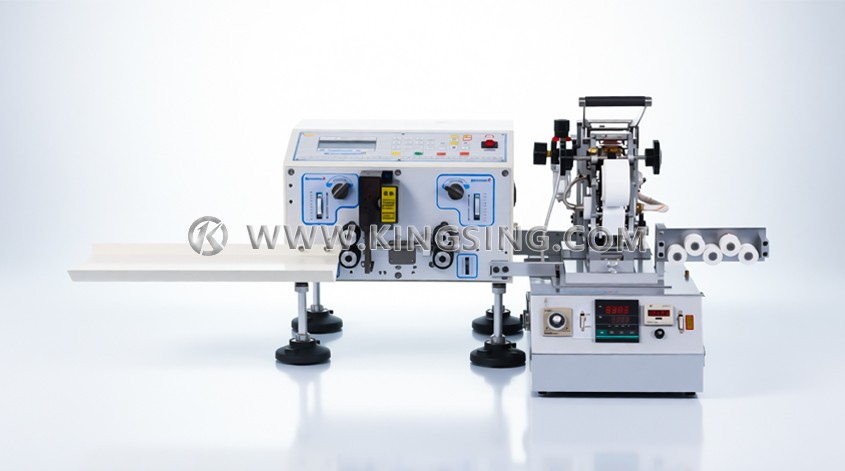

KS-W609HP is a fully automatic wire cutting, stripping and hot stamp marking machine. lt controls the feeding roller and discharging roller to control the wire-feeding through microcomputer technology, and completes the cutting and stripping by controlling the blade carrier. All components are driven by stepper motors and operated without an external air supply. The powerful function of this machine can complete a variety of working modes in one machine. Full stripping, half stripping and middle stripping can be realized. lt adopts hot stamp technology to mark on the wire, the stamp position and time can be set in the program freely. The processing precision is high and the operationis convenient, which greatly improves the production efficiency.

  • Excellent price/performance ratio;

  • Easy to program and operate, the operator can get started quickly without any training;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Adjustable stripping parameters and customized different sizes of guiding tubes;

  • This machine can both cut, full strip, half strip and middle strip. The stripping mode can be freely set. For example, it is possible to perform two-head full stripping or half-stripping, one head full-stripping and one head half-stripping, only stripping head not stripping tail;

  • With program storage function, it can store up to 100 groups of programs;

  • It adopts hot stamp marking method to mark on the wire surface, the temperature can be adjusted through the controller;

  • The hot stamp position and time can be set in the program freely, it supports maximum 4 hot stamp positions.


Download: (1)

Available Wire Diameter: Ф0.1~10mm2

Drive Mode: 4-roller drive

Cutting Length: 0.1~100000mm

Power Rating: 750W

Speed: 1200 pcs/hour (depending on the wire length and mark number)

Stripping Length: Head:0~35mm,End:0~35mm

Stripping Accuracy: ±(0.002mm×stripping length)

Cutting Accuracy: ±(0.002mm×cutting length)

Memory Function: Max. 100 group of programs

Display: LCD display with English menu

Hot Stamp Position: Max. 4 positions

Temp. Adjusting Range: 60°C~180°C

Character Size: 1.0~2.4mm(Customized)

Number of Characters: 7~50 (Customized)

Operation Temperature: 0~40°C

Environment Humidity: 30%~80%RH (No condensation at 40°C)

Power Supply: AC220V 50Hz or AC110V/60Hz

Air Supply: 0.5~0.7Mpa (Stable, clean and dry air source)

Net Weight: 53KG

Dimension: L1200xW560xH500mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
