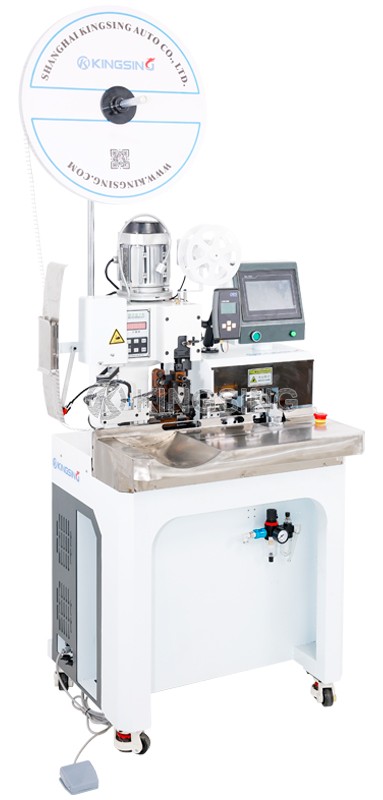

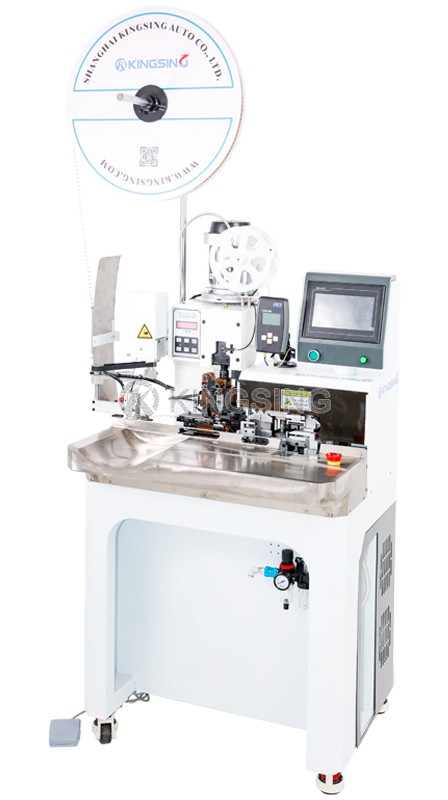

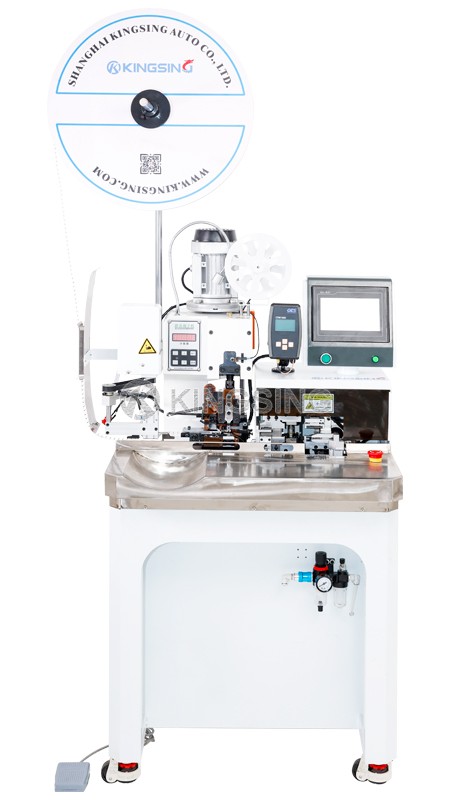

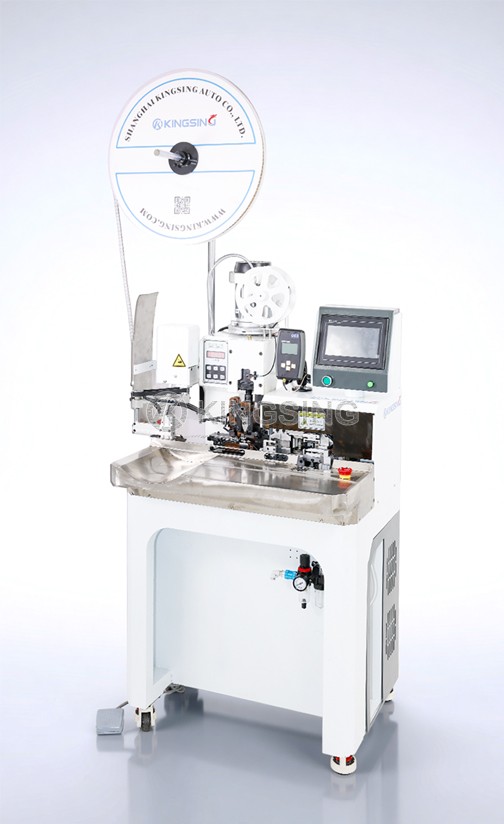

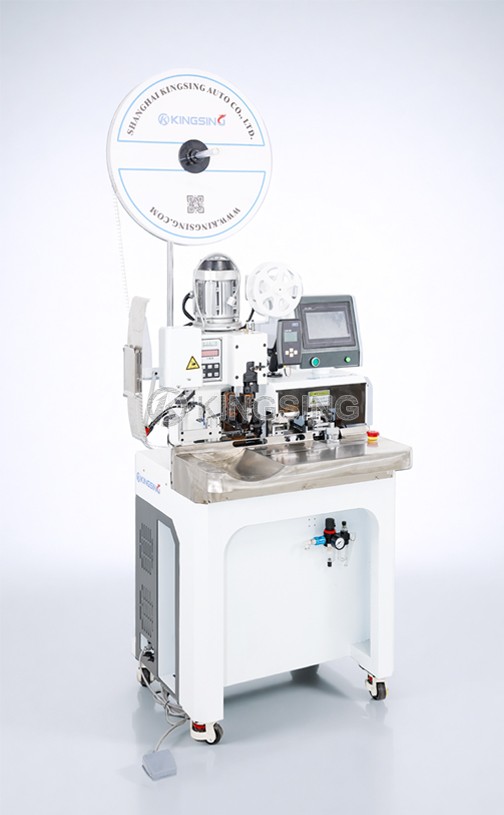

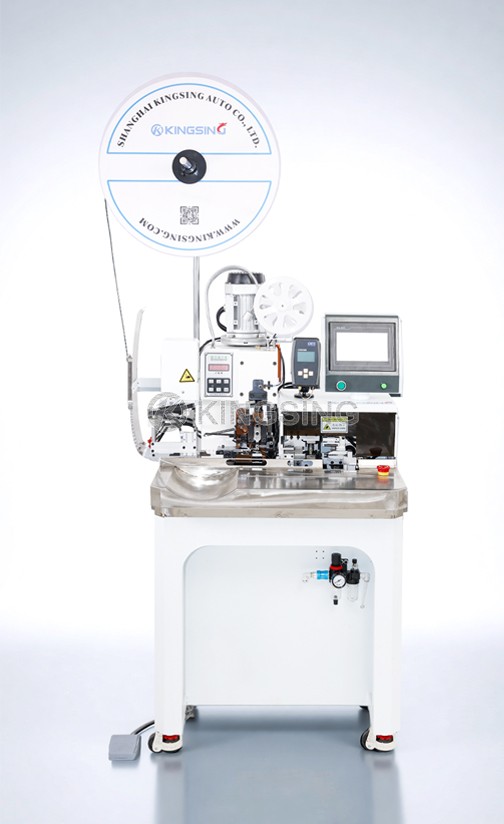

High-precision Multi-core Wire Stripping and Crimping Machine

  • Model:KS-T5185
  • Net. Weight:
  • Dimension:
  1. This is a high-precision sheath wire core wire stripping and crimping machine. The operator only needs to manually put the wire head into the jig, and the machine can automatically complete the core wire leveling, cutting, stripping, and crimping the terminal. . The specially designed core wire leveling mechanism can automatically straighten the core wires, and the terminals are on the same straight line after crimping, which is convenient for later insertion into the housing. One machine can process a variety of different products, only need to replace the corresponding crimping applicator and positioning jig.

  2. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be called out with one key when switching products. The stripping mechanism is driven by a motor, and parameters such as stripping length, cutting depth, and crimping position can be set in the program, and there is no need to manually adjust the screws. Equipped with automatic paper winder, terminal strip cutting and waste suction device, it can keep the working environment clean.

Download: (1)

Applicable wire: multi-core sheathed wire

Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Number of core wires: up to 15 cores

Core wire outer diameter: Φ0.6~3.3mm

Outer sheath stripping length: ≥35mm

Core wire stripping length: ≤10mm

Applicable terminal type: horizontal feed terminal or straight feed terminal

Terminal machine output: 2T

Crimp stroke: 30mm

Operation interface: 7-inch color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 95kg

Dimensions: 800*600*1350mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
