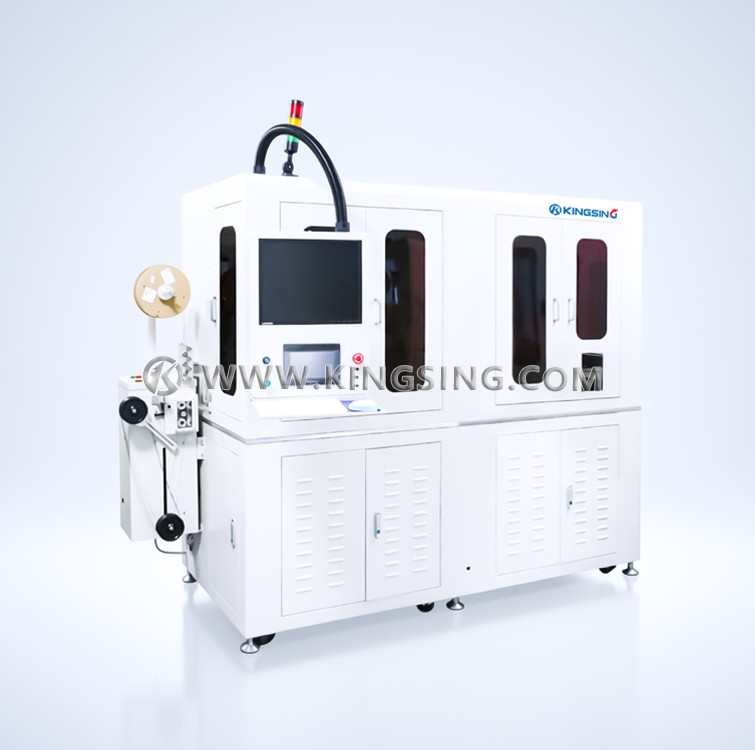

Automatic Coaxial Cable Crimping and Soldering Machine (double tin furnace type)

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

This model is designed for some customers who have high requirements for soldering. It uses double tin furnaces to dip tin twice. It has obvious quality for some wires with loose braided layers or copper foil, which are easy to bulk up when dipped in tin. Improve the effect!

Cutting capacity: 35mm-800mm (35mm product dip tin end stripping size does not exceed 5mm)

Processing diameter: 0.81-1.37 specifications

Cutting depth setting unit: 0.01mm

Working pressure: not less than 0.5Mpa

Machining accuracy: Tolerance of stripping at both ends ±0.1mm Total length tolerance ±0.5mm

Working voltage: AC220V±10V

Dimensions: 2400*1400*2200mm

Power: about 3.3KW

Weight: about 1200kg

Production efficiency: 900-1200PCS/H (depending on the stripping length)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
