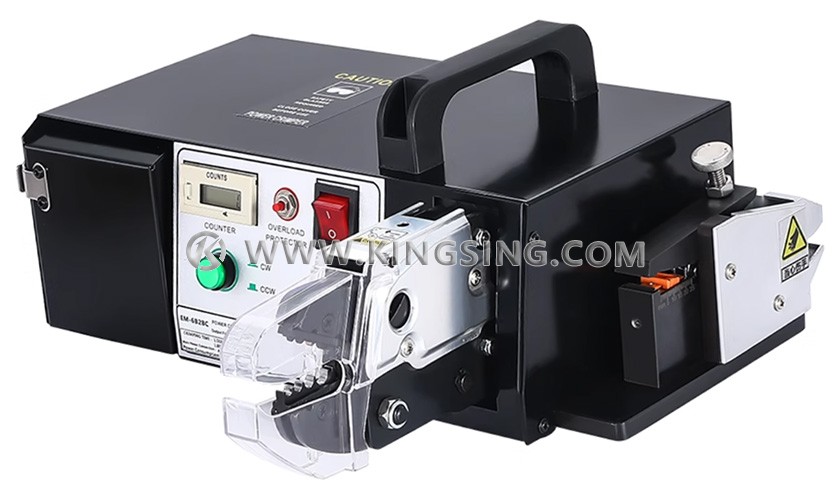

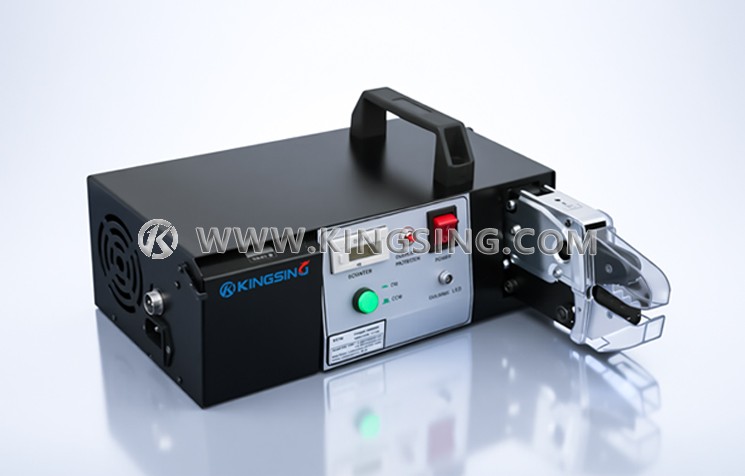

The electric terminal crimper is designed for efficient and precise crimping of loose terminals, offering high performance in both crimping force and speed. Its compact and lightweight structure makes it ideal for benchtop use, saving workspace while ensuring portability.
Engineered with ergonomic design principles, this machine reduces operator fatigue and enhances working comfort. The crimping process delivers clean, professional results with smooth finishes and no rough edges, ensuring consistent and reliable electrical connections.

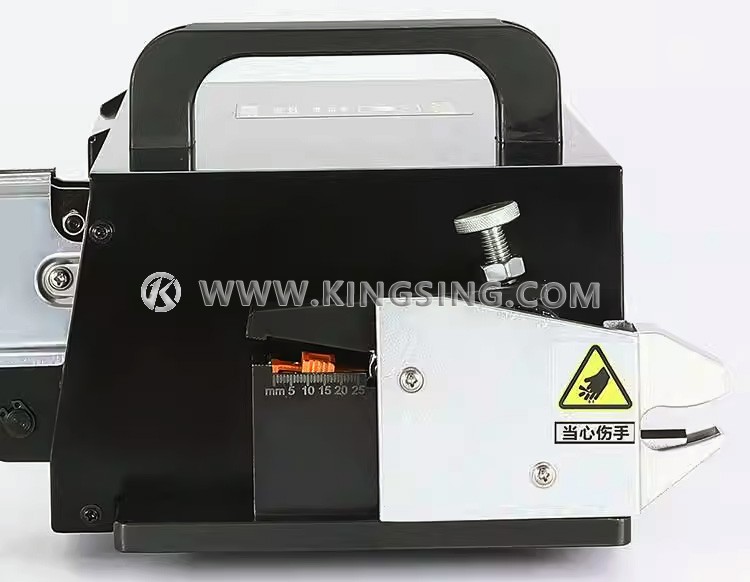

An optional wire stripping and cutting module can be integrated, allowing operators to conveniently repair defective products. After trimming the wire end, the stripping function prepares it for re-crimping, eliminating the need for additional tools and simplifying the rework process.
With an excellent price-to-performance ratio and simple operation, it is suitable for a wide range of industrial applications including wire harness assembly, electrical cabinet manufacturing, and terminal processing. Interchangeable die sets allow for flexible adaptation to various terminal types.
| Model | KS-T808 | KS-T809 |
| Cutting Function | Yes | None |
| Stripping Function | Yes | None |
| Wire Stripping Length | 1~20mm (adjustable) | None |

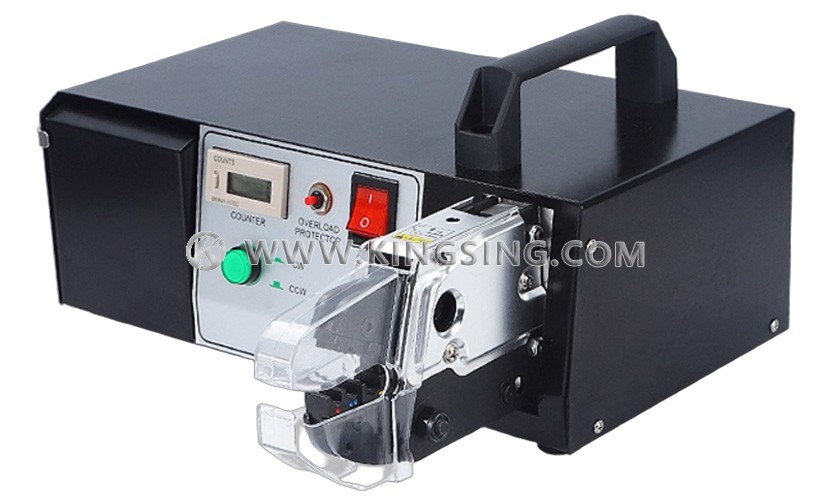

| Picture |  |  |
| Available Wire Size | Pre-insulated Terminal: ≤6mm² Non-insulated Terminal: ≤16mm² Ferrule Terminal: ≤35mm² | |
| Crimping Circle Time | 1.5s (60Hz) 1.8s (50Hz) | |
| Crimping Force | 12.7KN | |
| Power Rating | 90W | |
| Power Supply | AC 200~230V/50Hz (Optional AC 100~125V/60Hz) | |
| Dimension (L×W×H) | 360×310×110mm | |
| Gross Weight | 18Kg | |

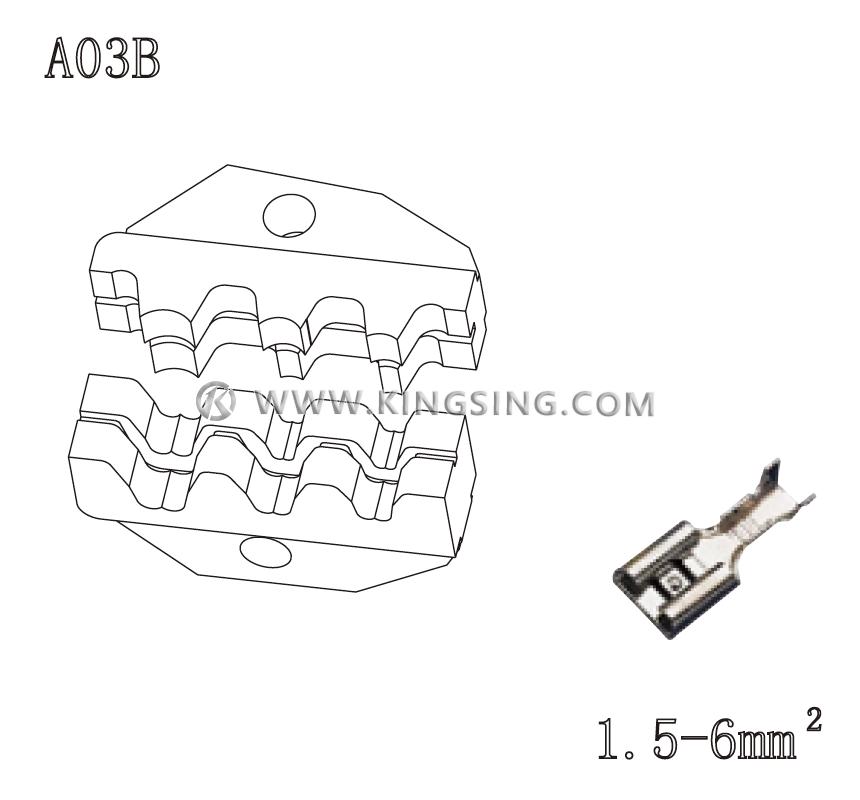

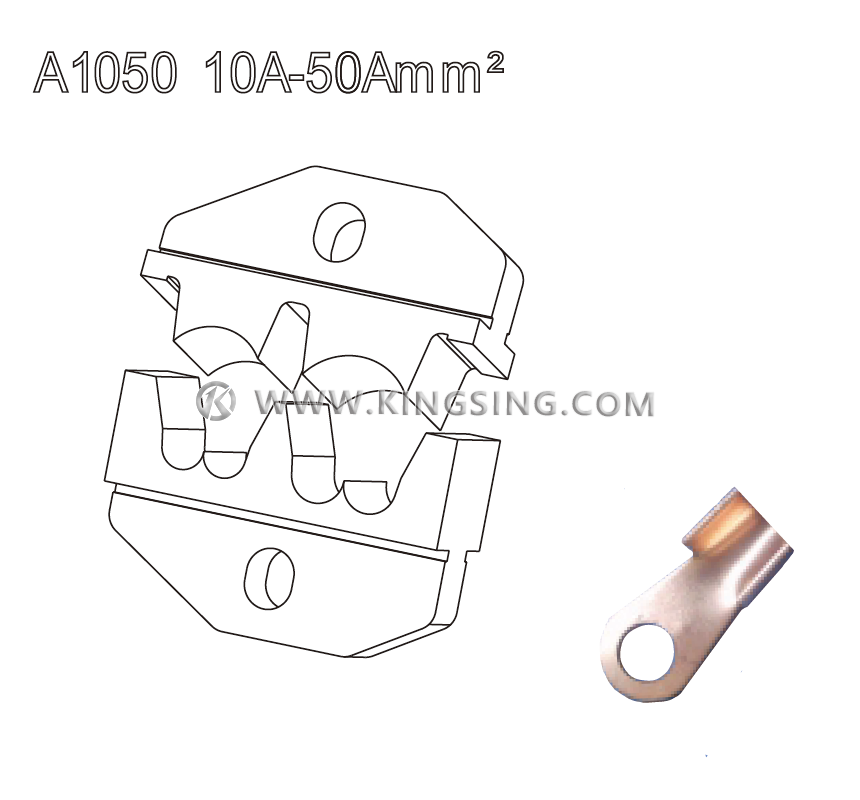

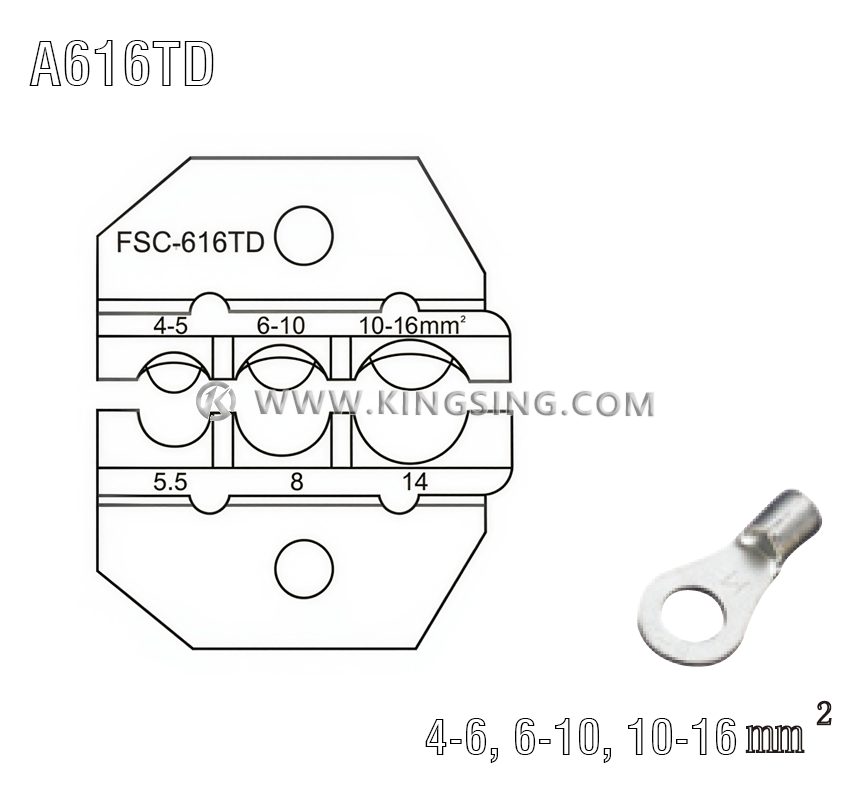

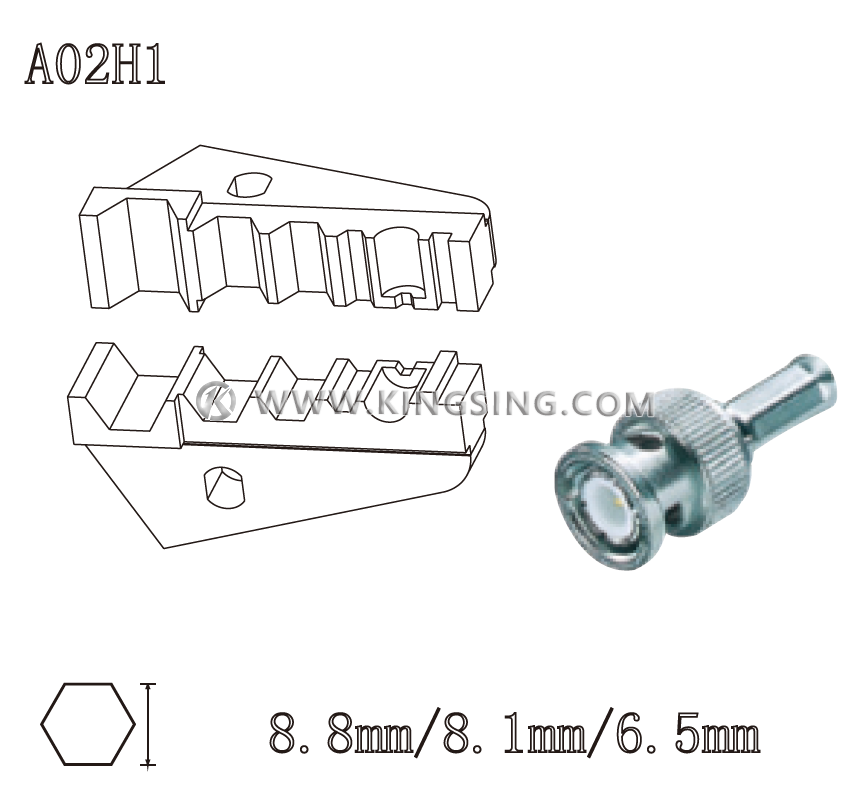

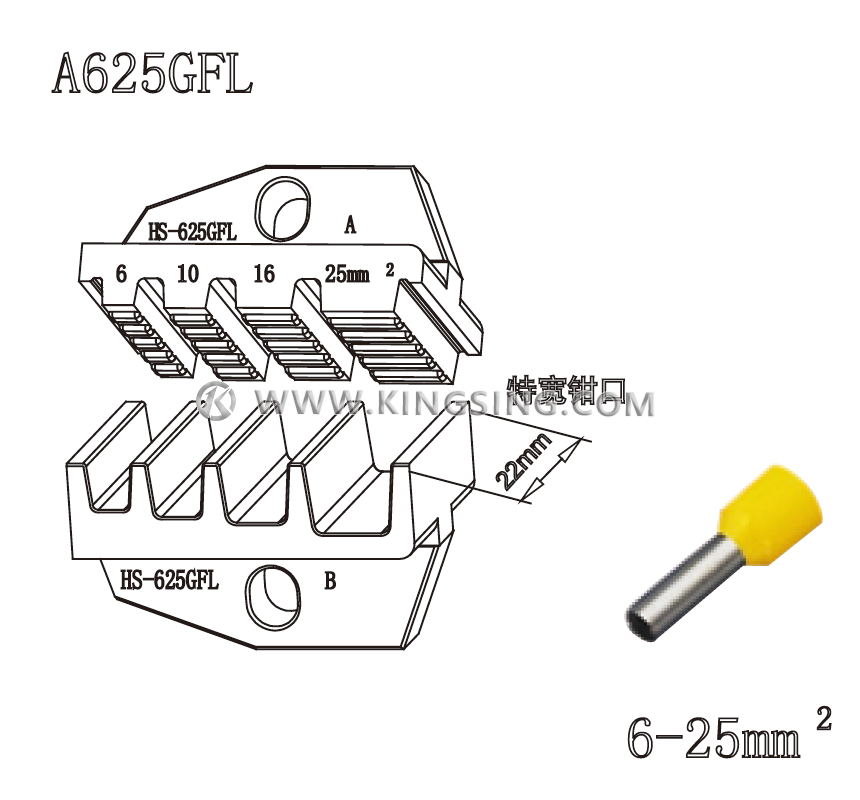

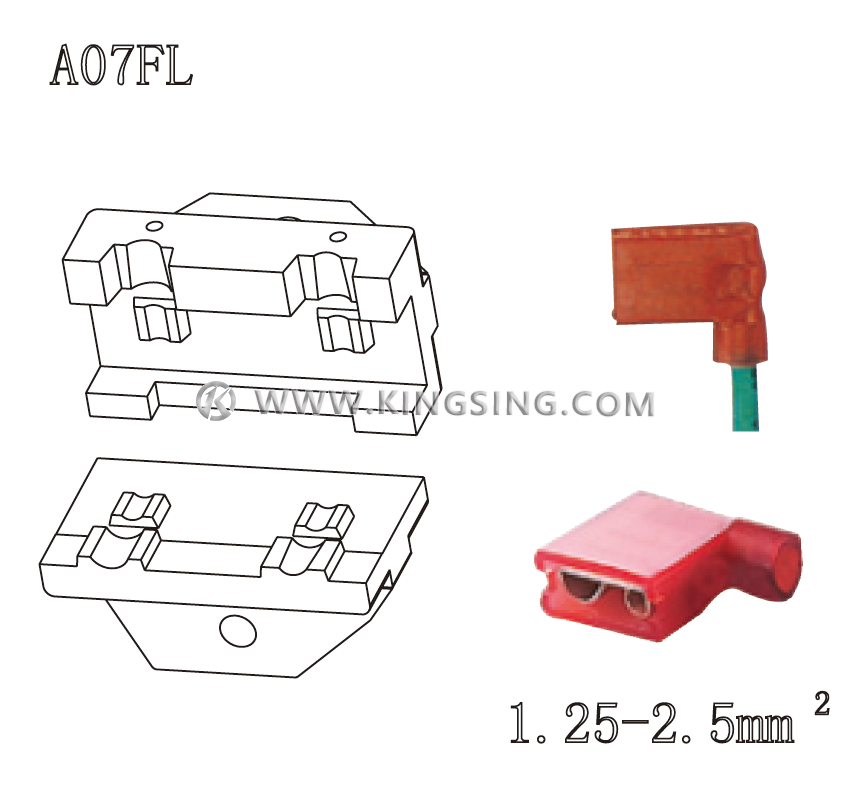

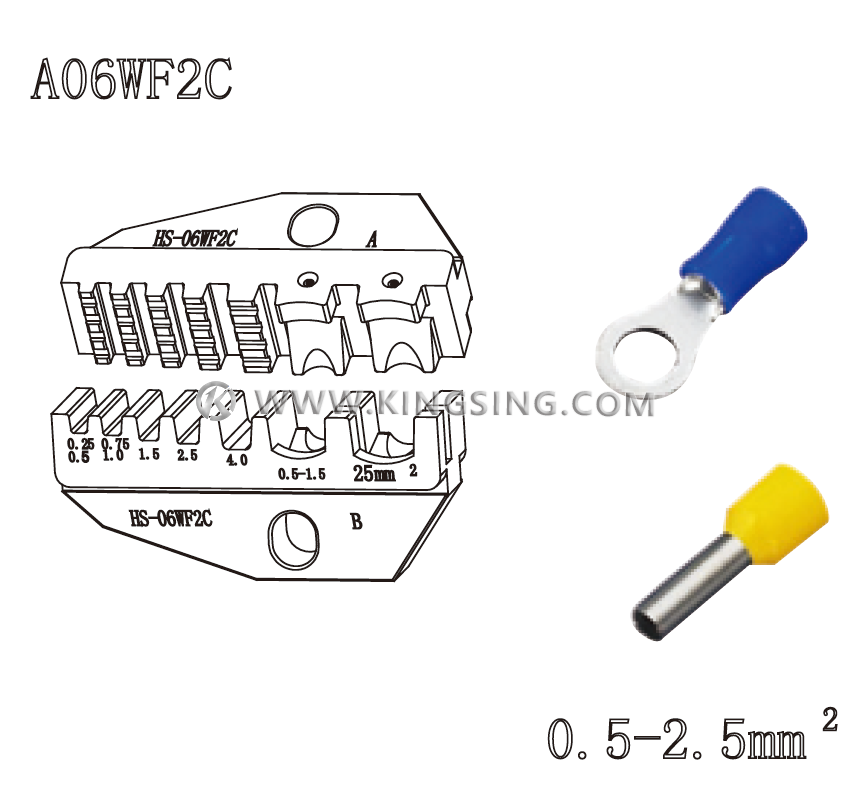

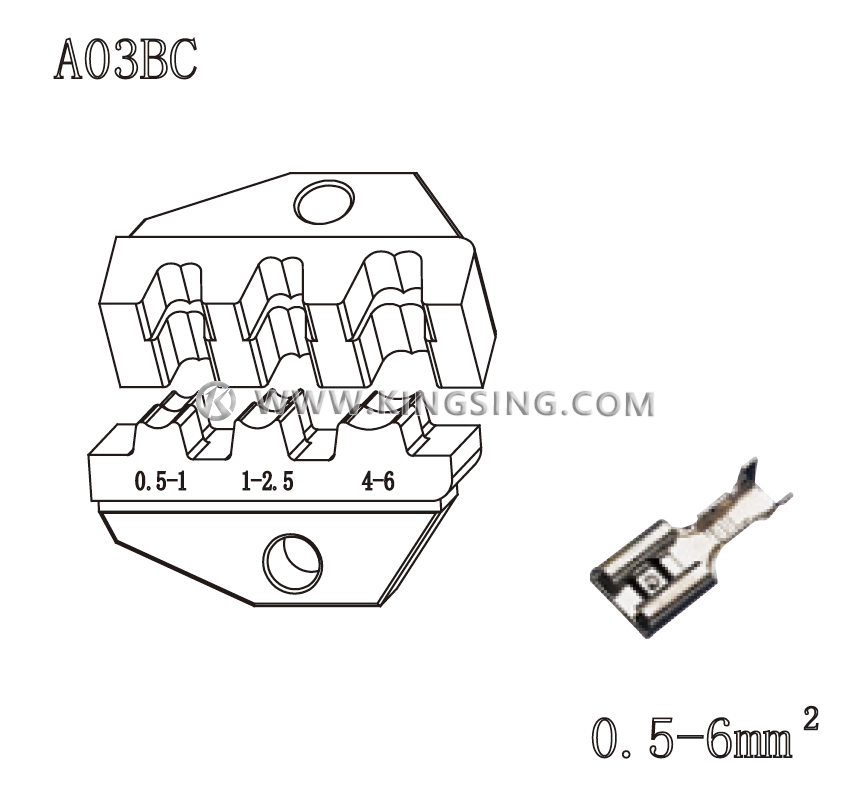

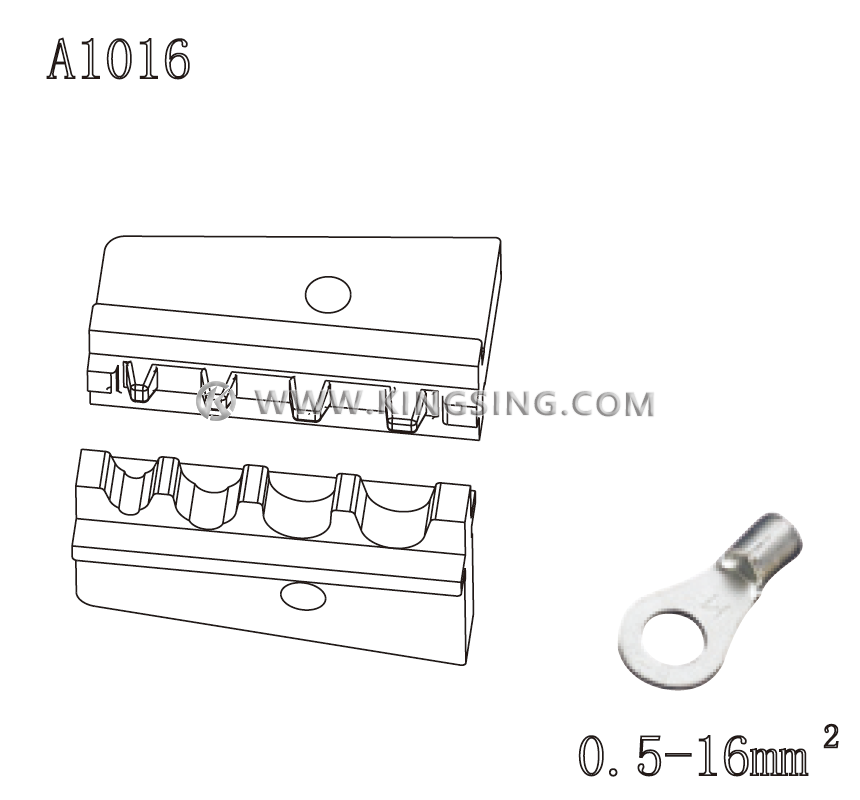

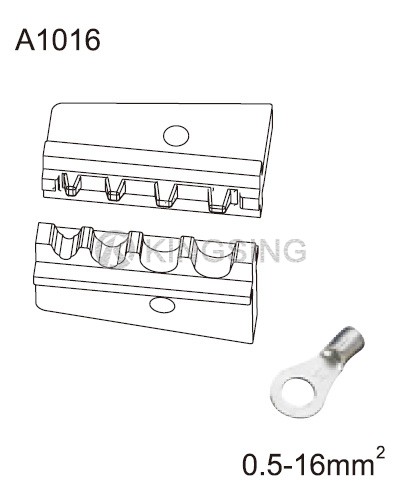

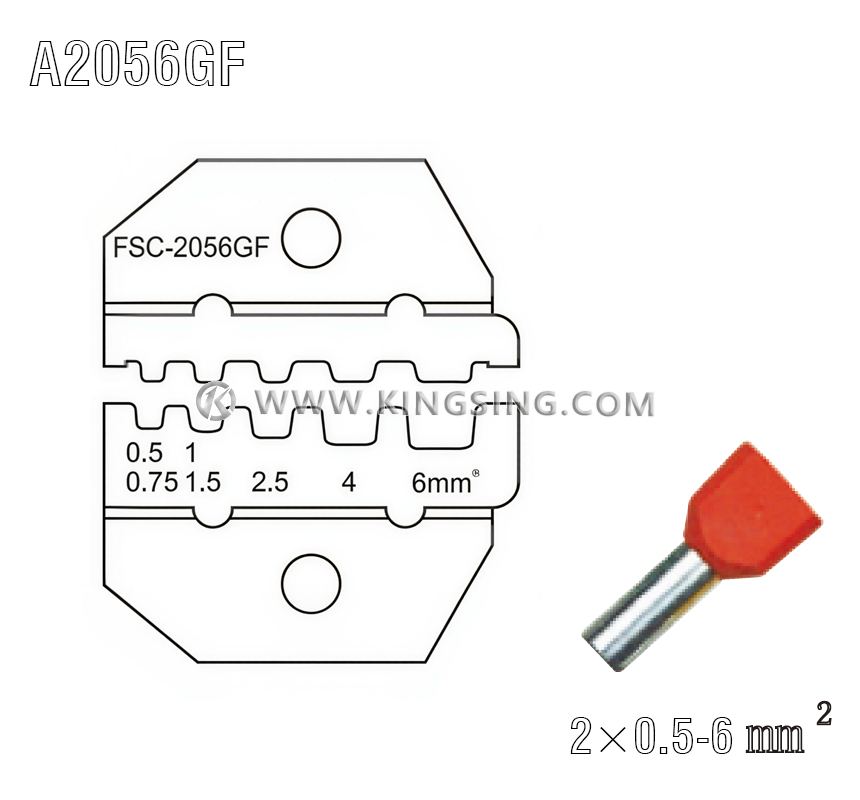

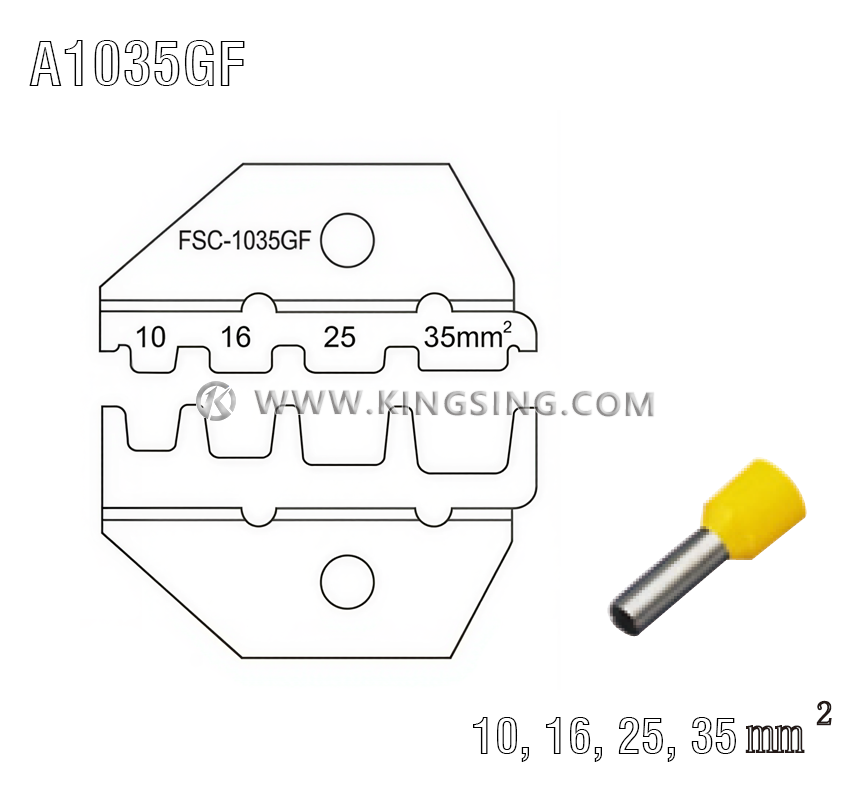

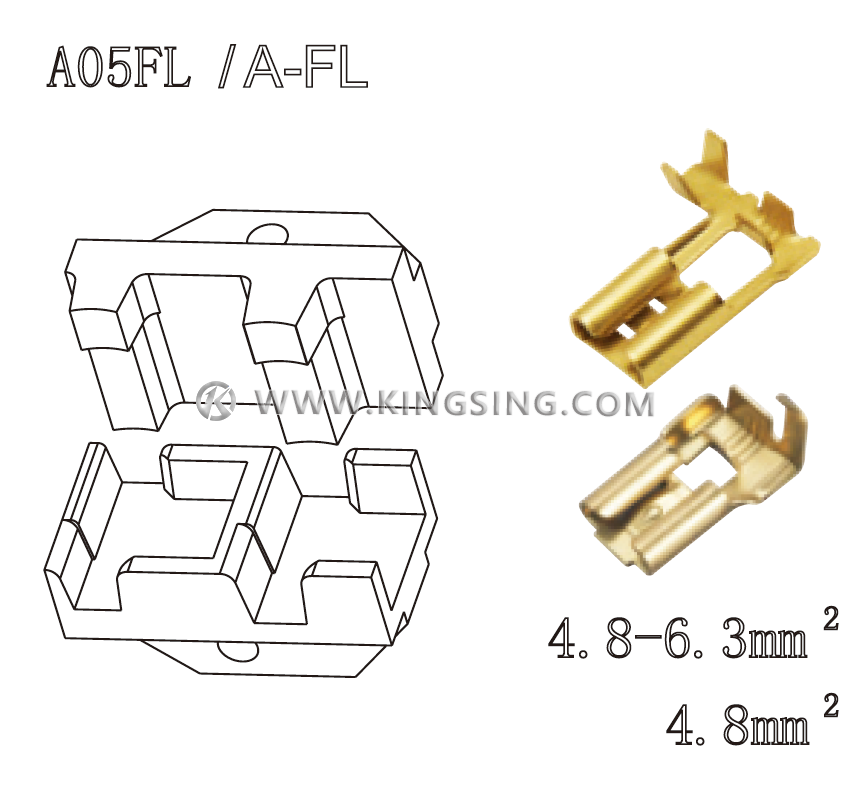

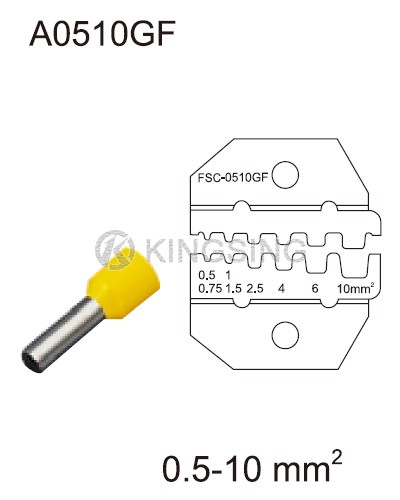

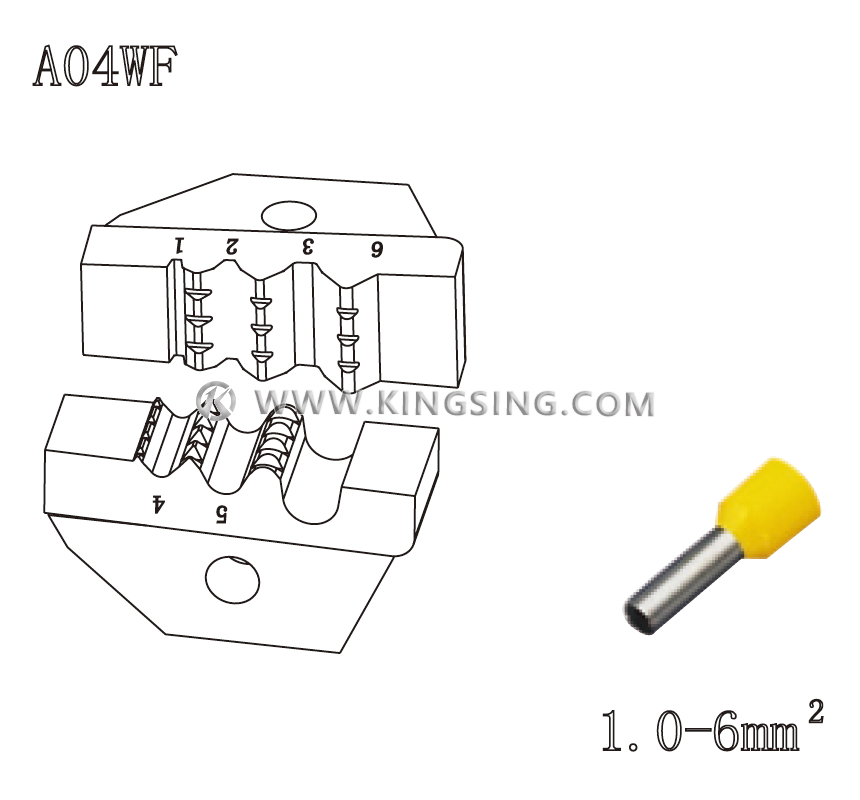

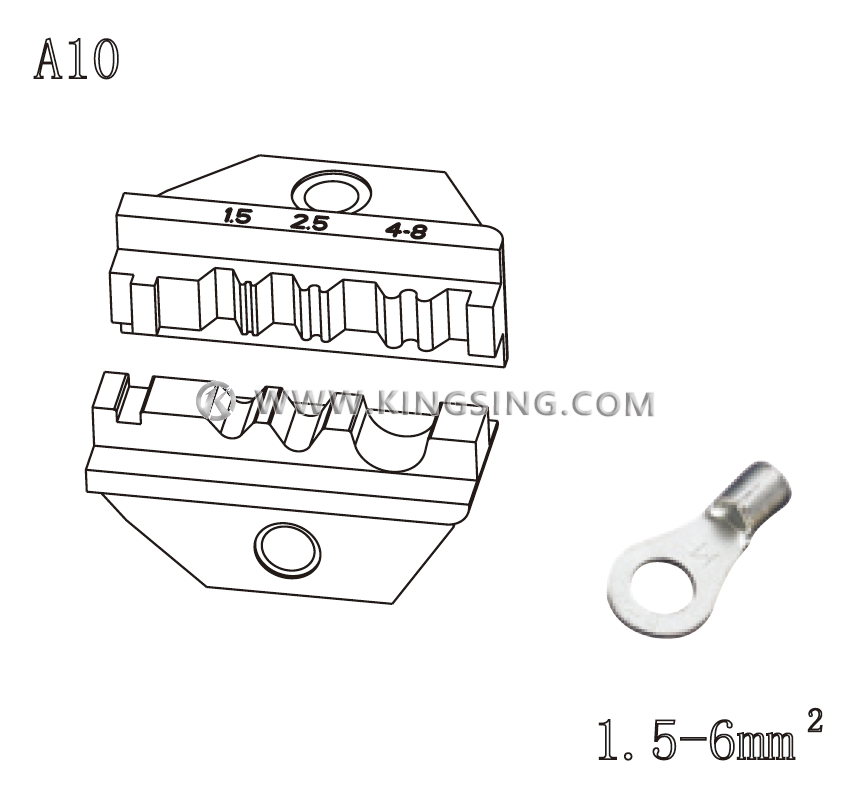

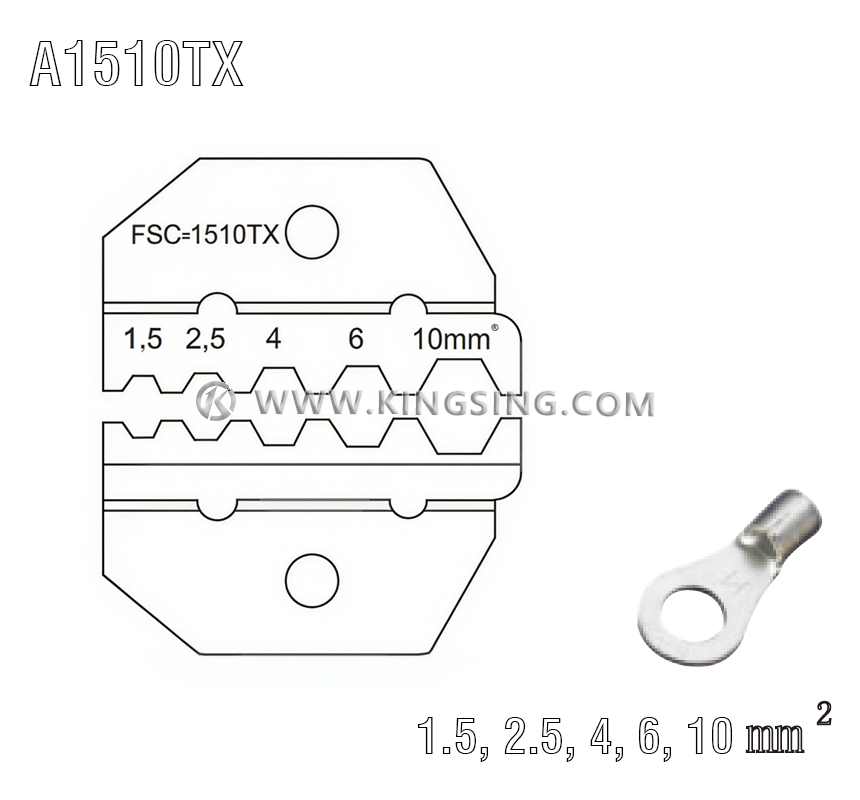

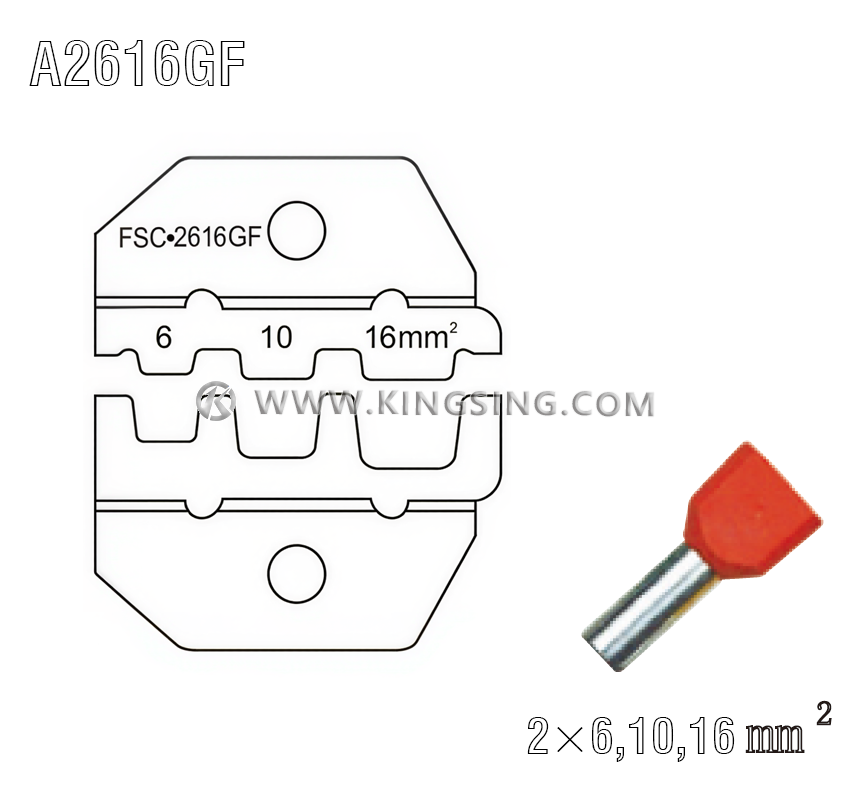

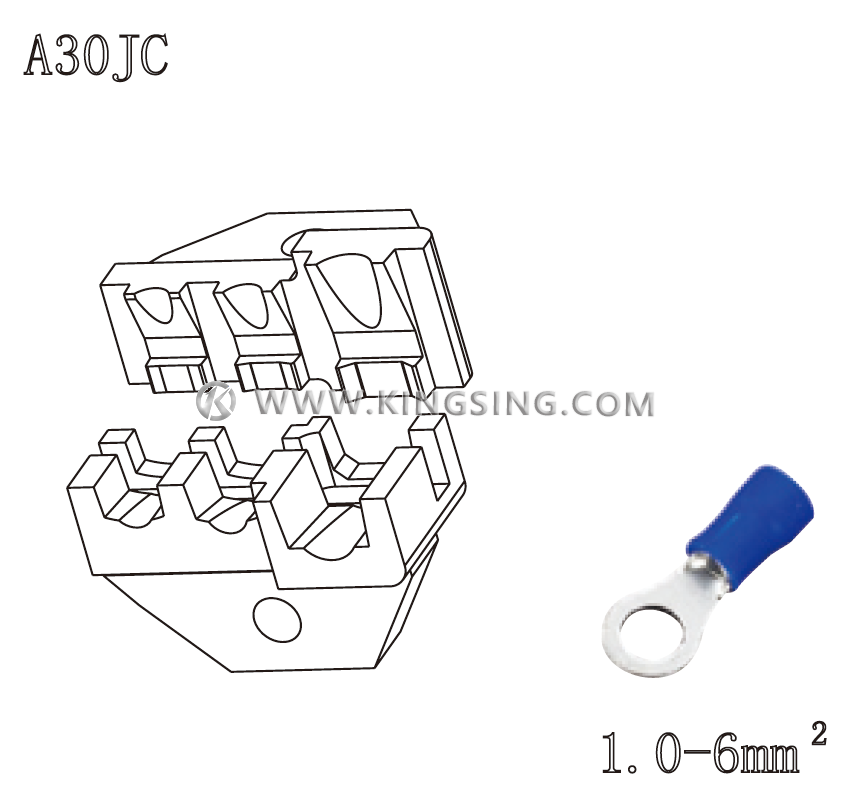

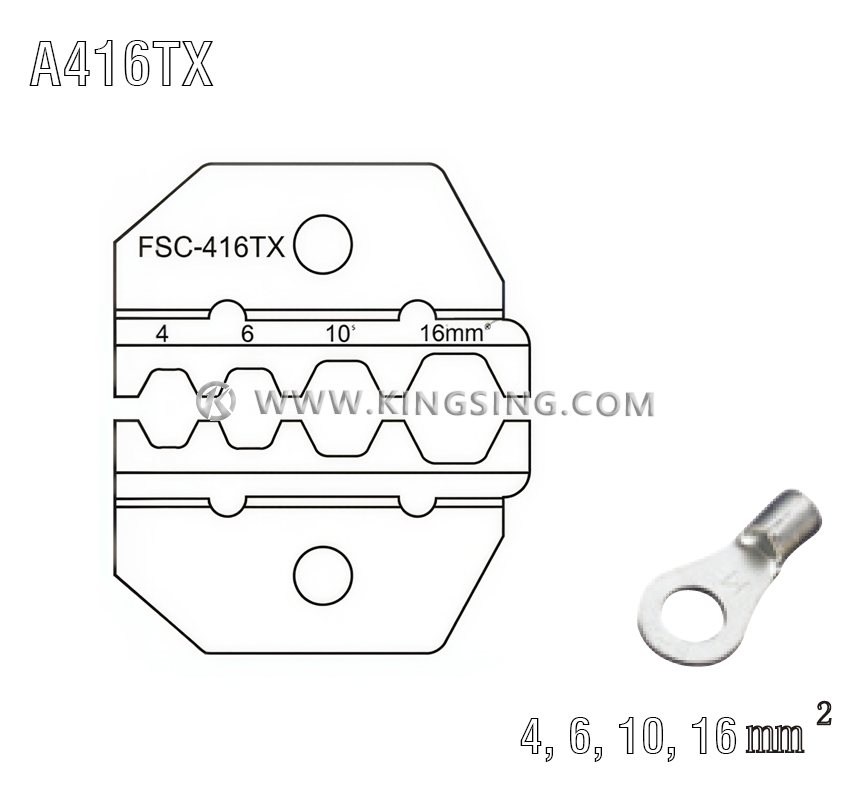

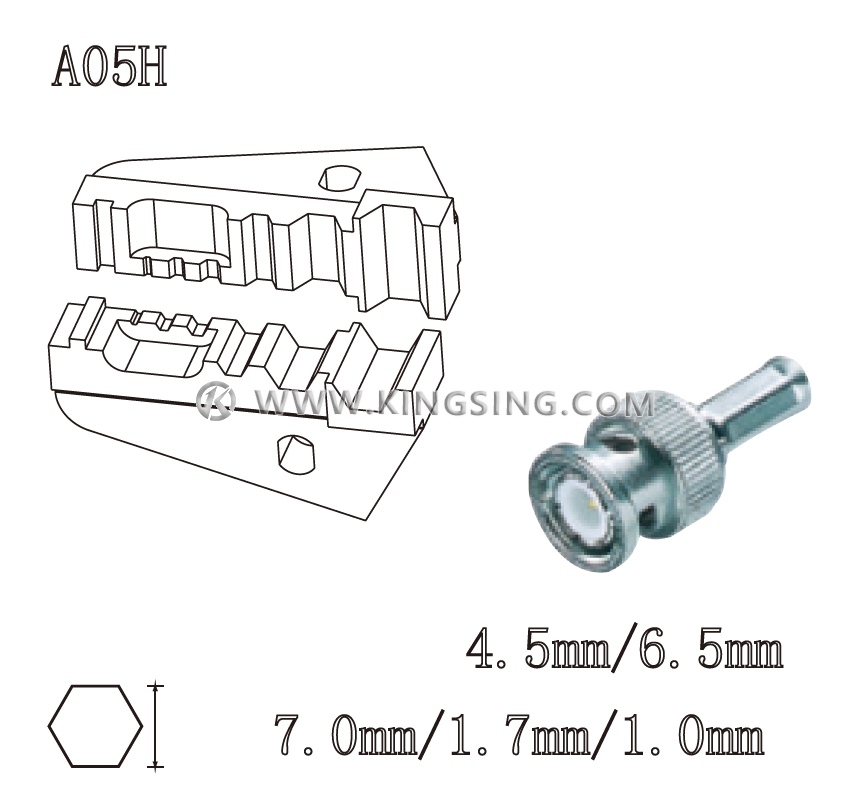

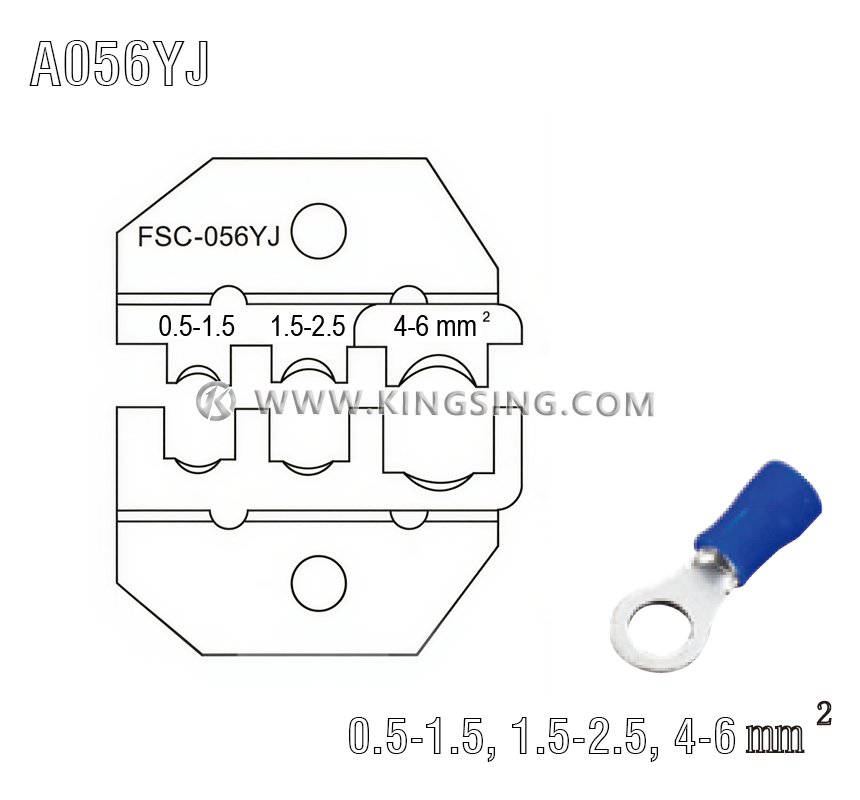

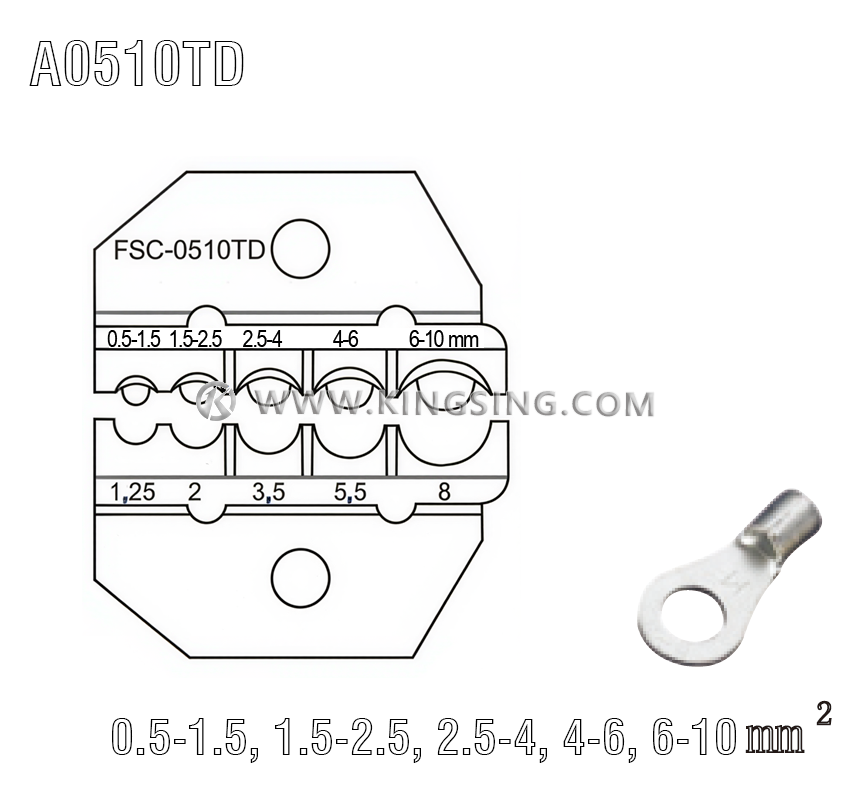

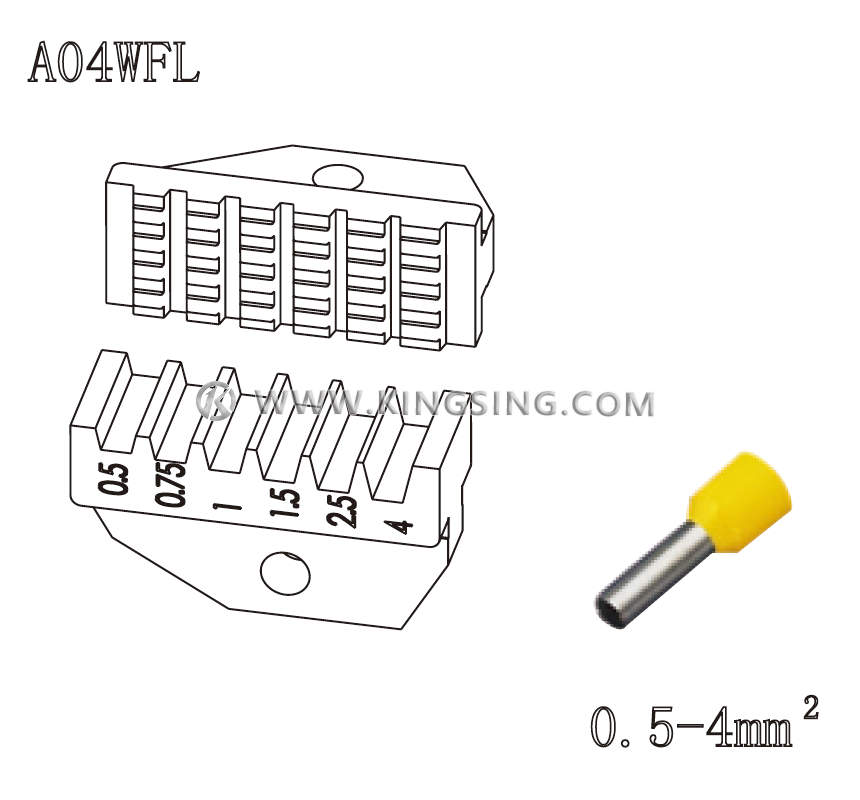

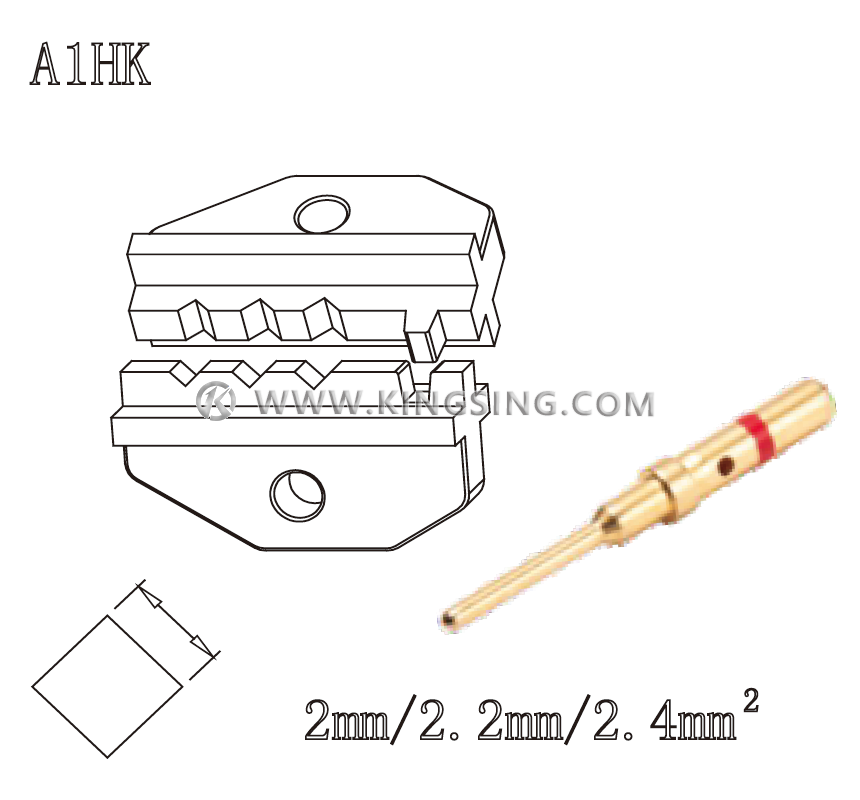

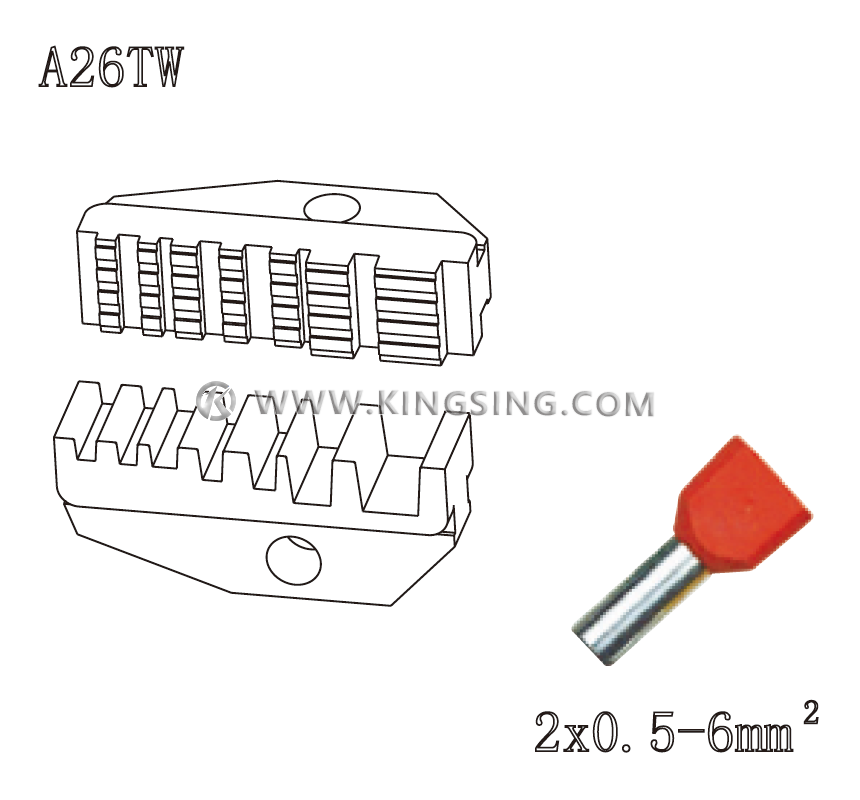

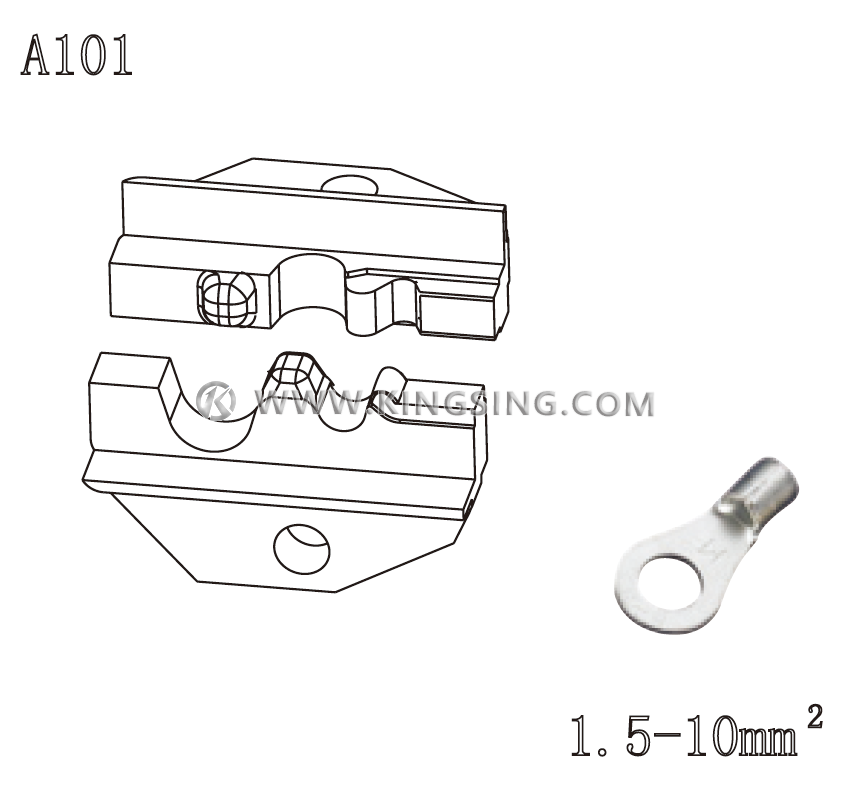

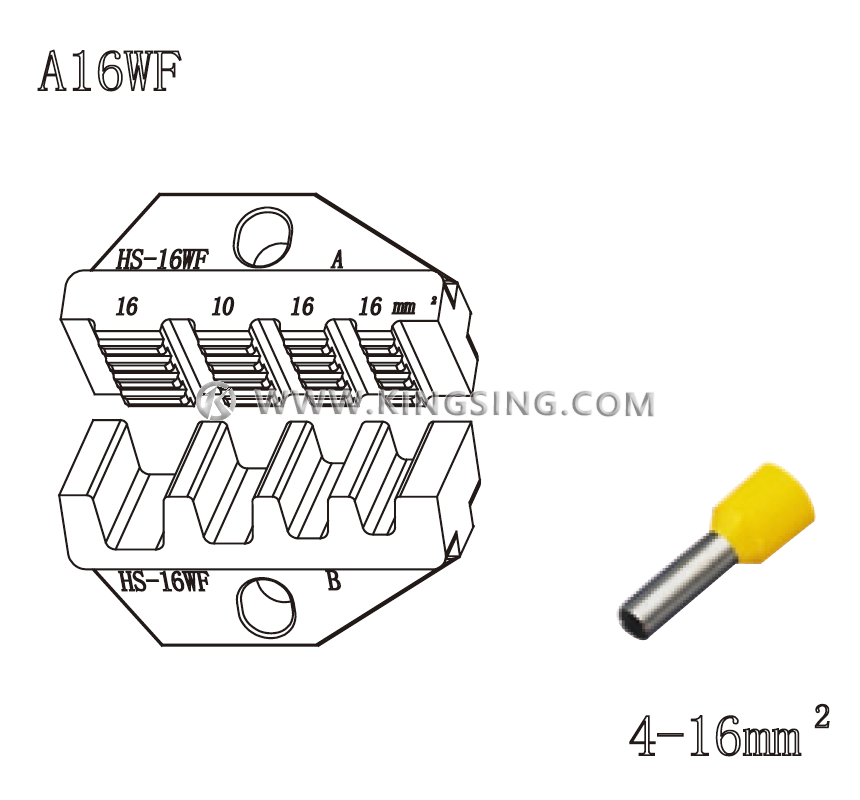

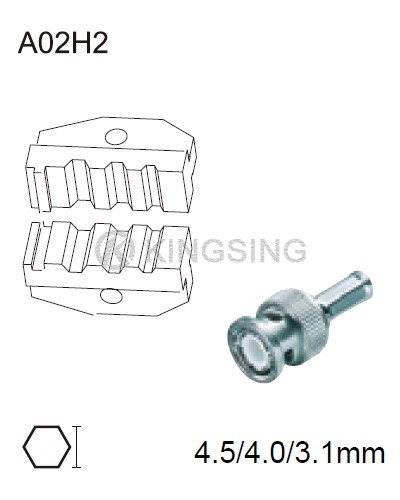

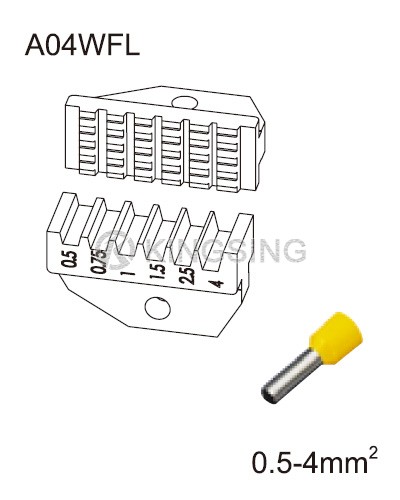

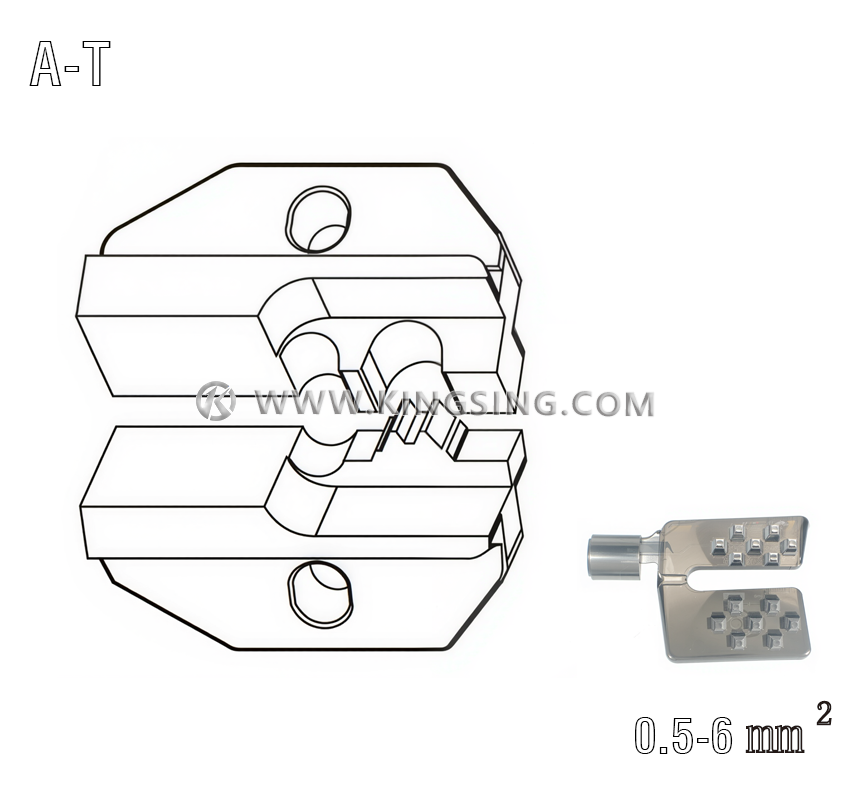

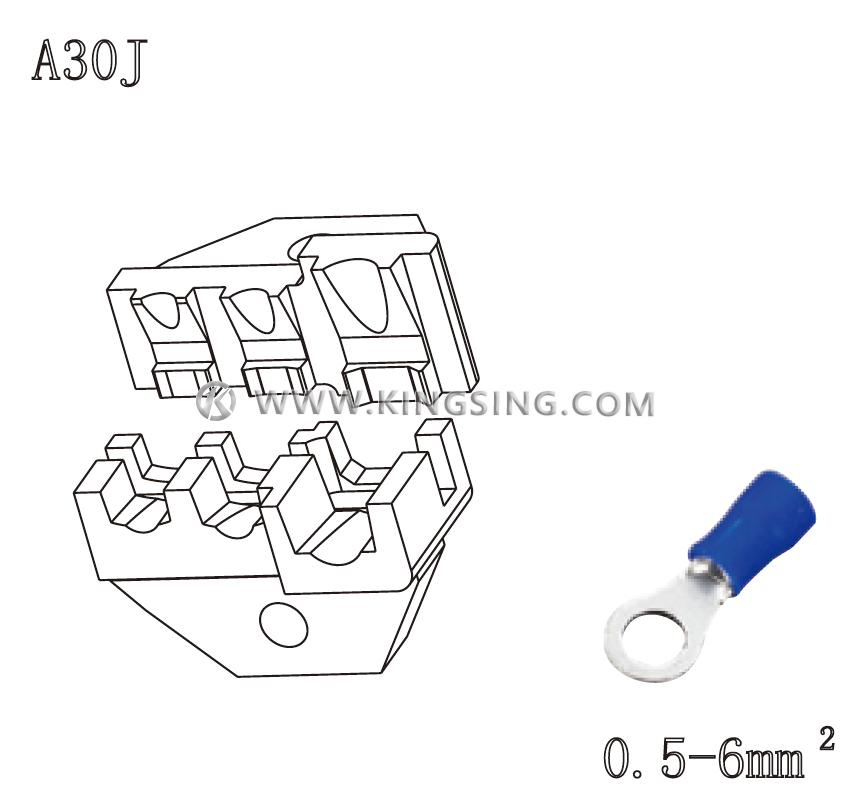

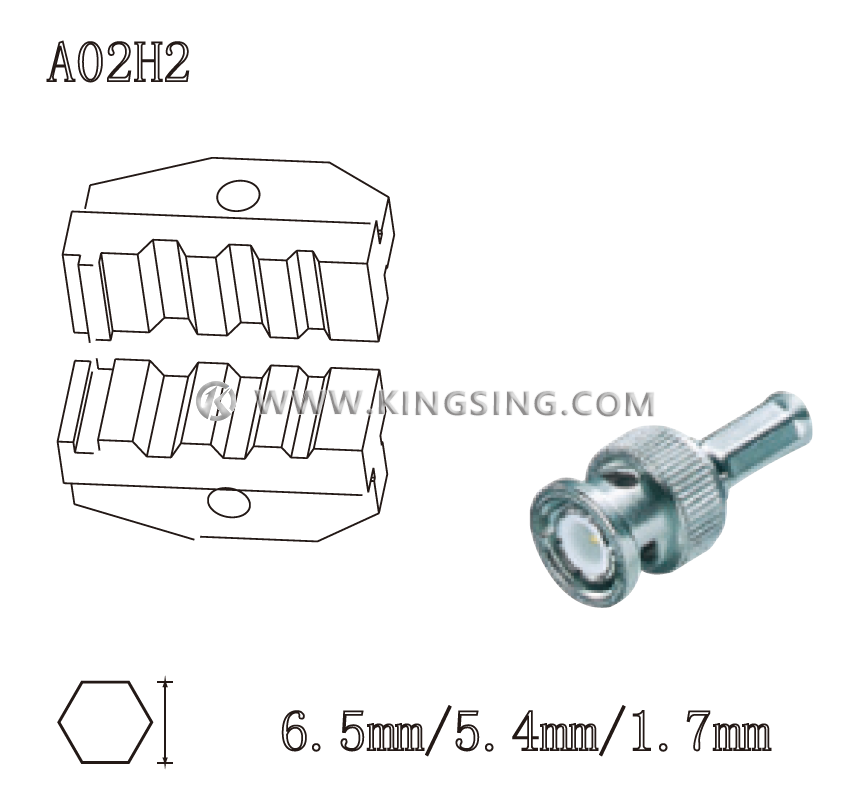

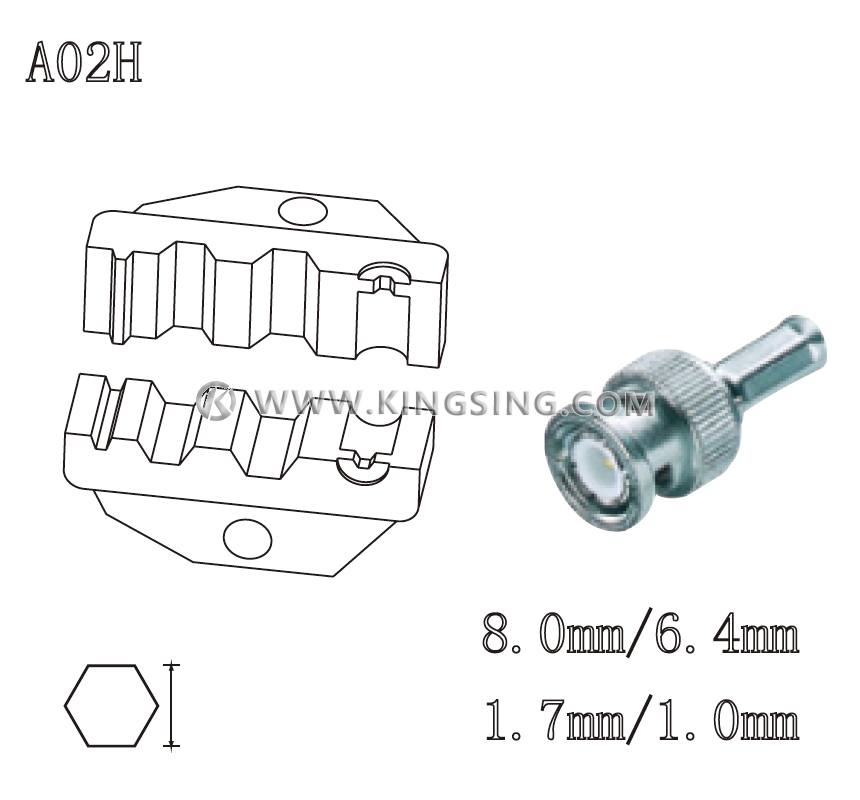

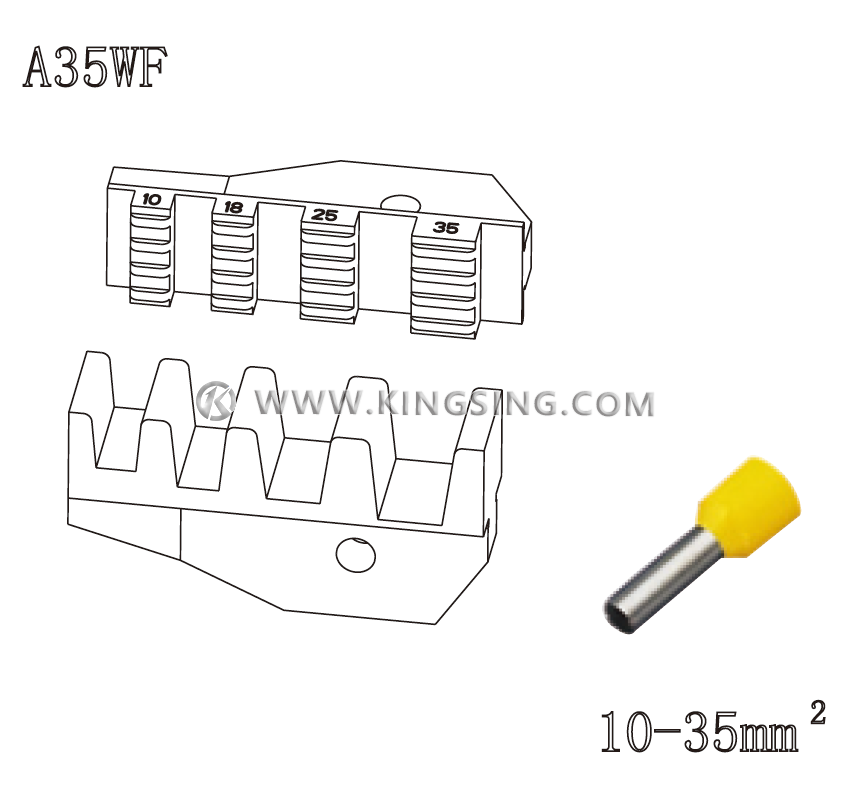

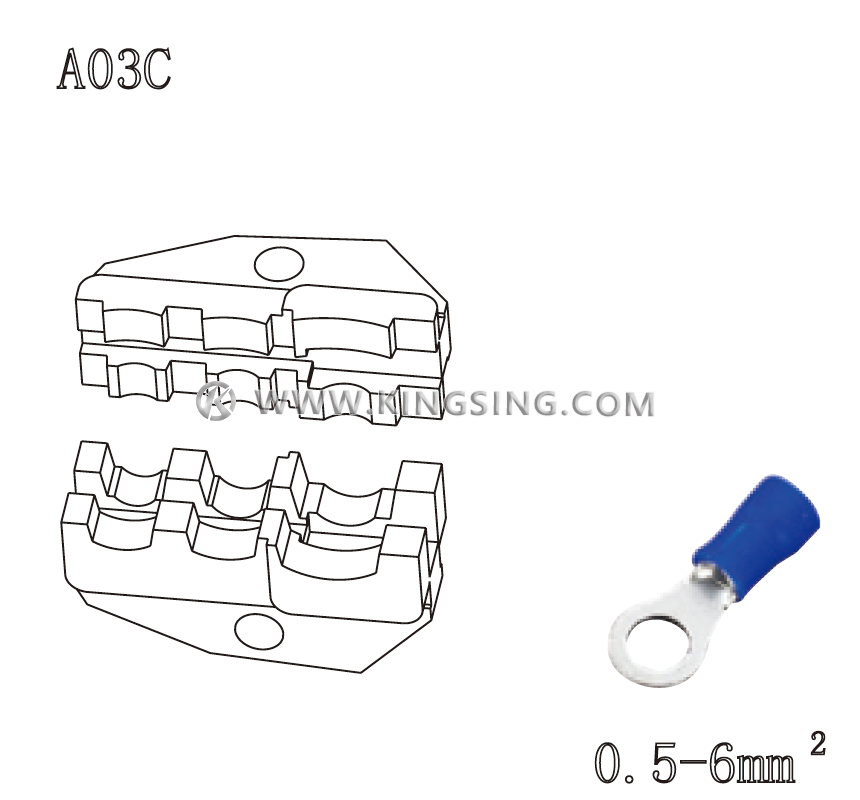

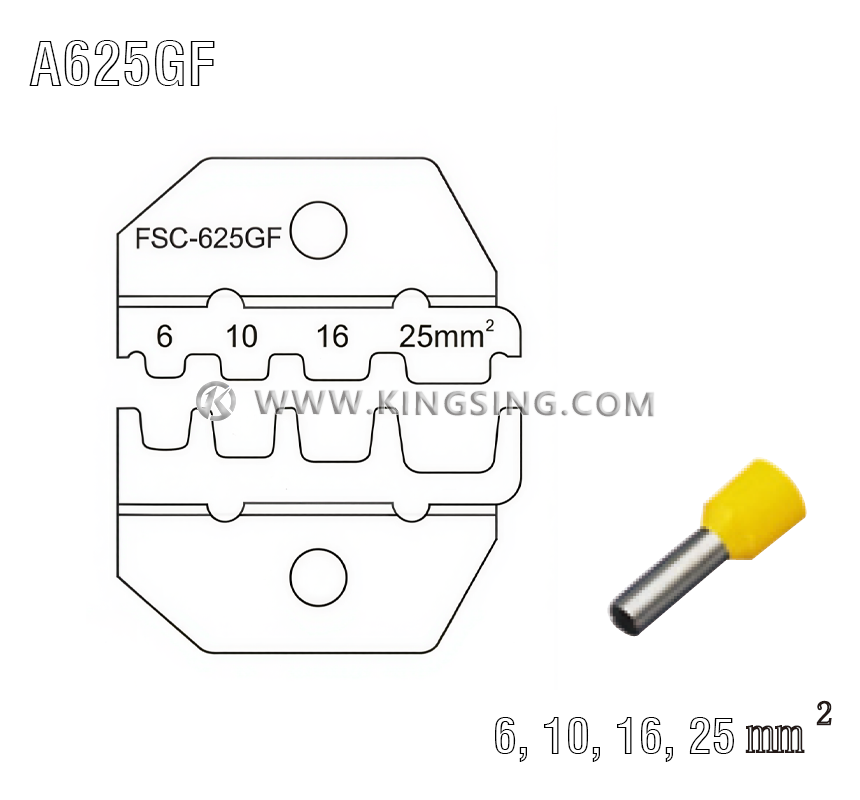

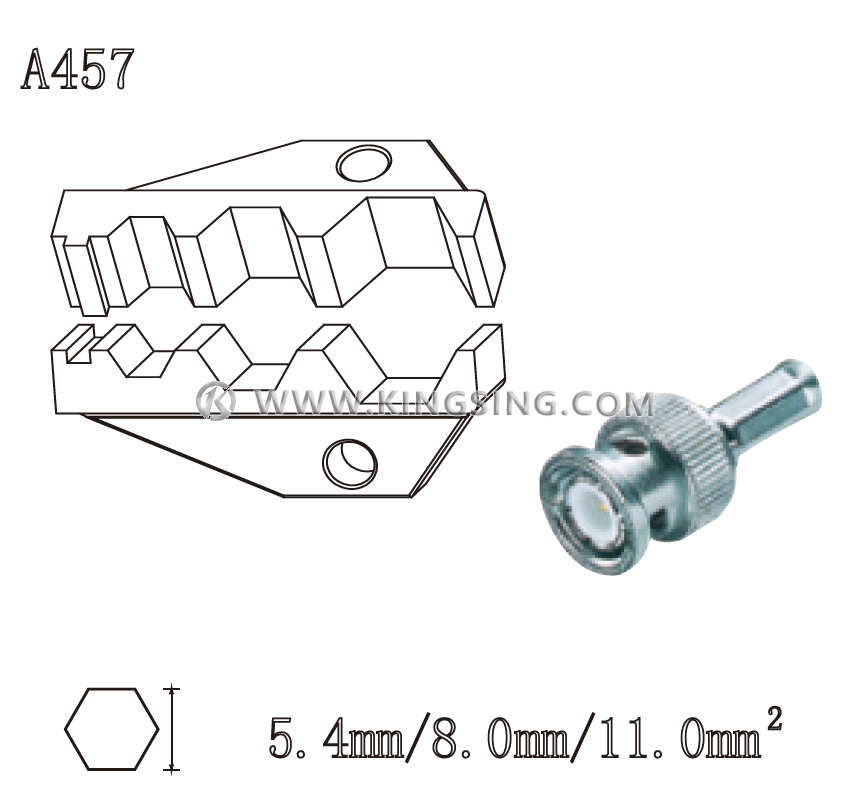

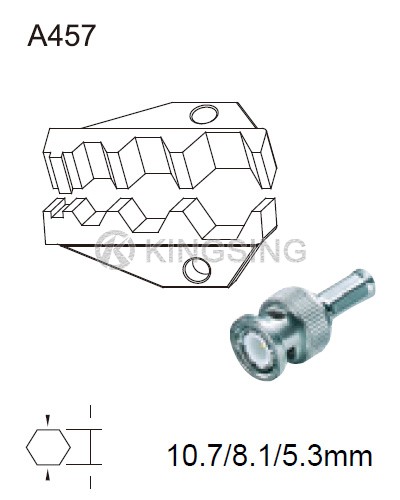

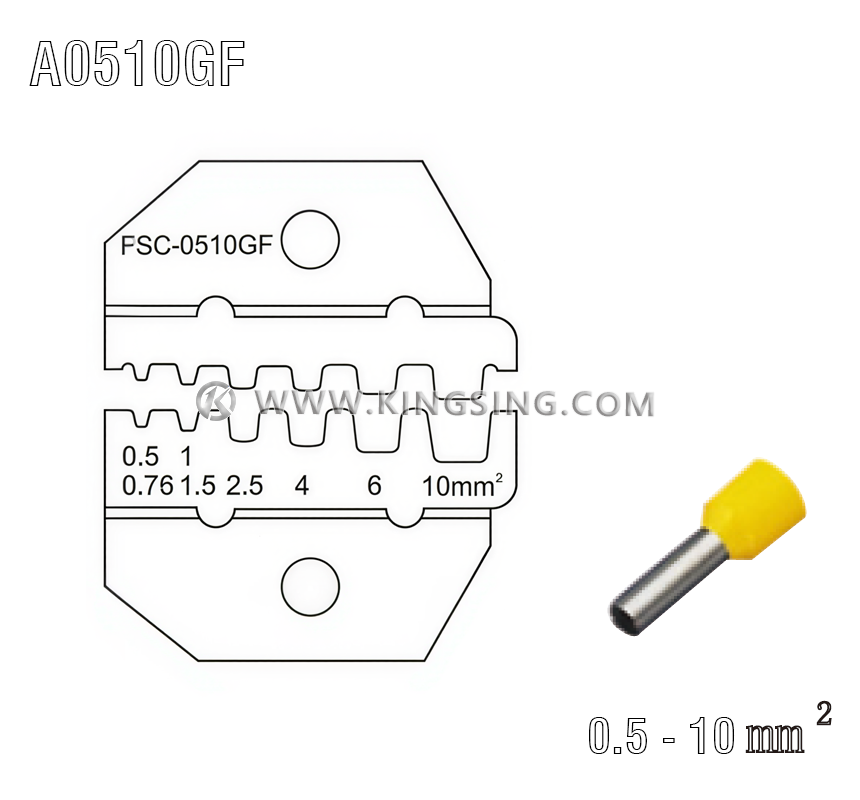

| Optional Die Set List | |||
|---|---|---|---|
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
