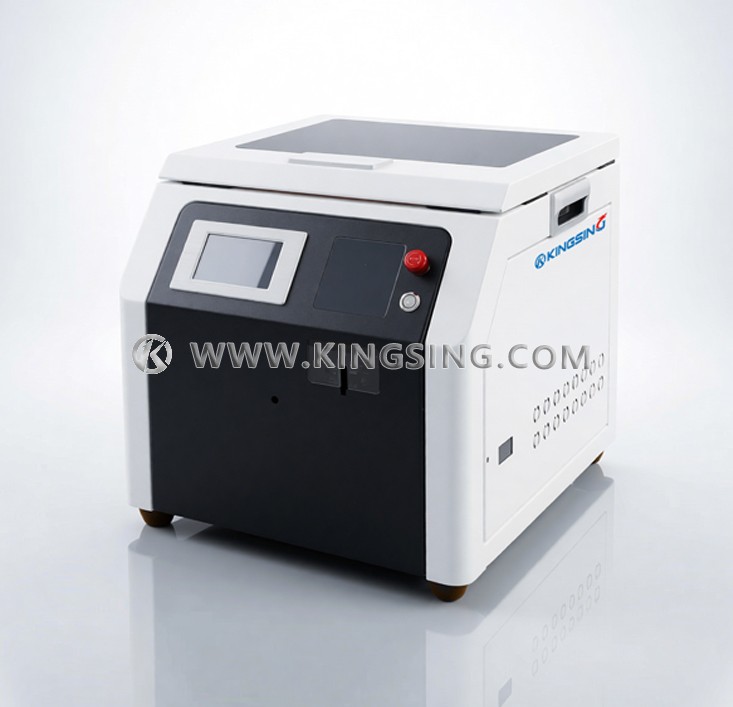

Aviation Terminal Stripping and Crimping Terminal Machine

  • Model:KS-T882TP
  • Net. Weight:
  • Dimension:

The all-in-one machine for stripping and crimping aviation terminals is specially designed for crimping bulk aviation terminals. It can directly pour the terminals into the built-in miniature vibrating plate of the machine, and the machine will automatically send the terminals to the crimping position.The wire end does not need to be pre-stripped. The operator only needs to put the wire end into the working position, and the machine can automatically complete a series of actions such as stripping, twisting the copper wire, penetrating the terminal, and crimping. The wire twisting function can effectively prevent the copper wire from dispersing and flipping over when inserting into the terminal, stripping and crimping integration reduces the process flow and can effectively save labor.

Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as thread cutting depth, stripping length, twisting force can be directly set in the program.

KINGSING
Download: (1)

Applicable terminal: customized according to the sample, dedicated for special machine

Stripping length: 0~12mm

The shortest wire length: 40mm

Crimping method: four-point crimping

Production efficiency: 1000~1300 pieces/hour

Working voltage: 220V 50Hz

Rated power: 400W

Air pressure requirement: 0.5~0.8Mpa

Net weight: 68kg

Dimensions: 430*505*425mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
