Core Wire Stripping and Crimping Machine

  • Model:KS-T5182
  • Net. Weight:
  • Dimension:

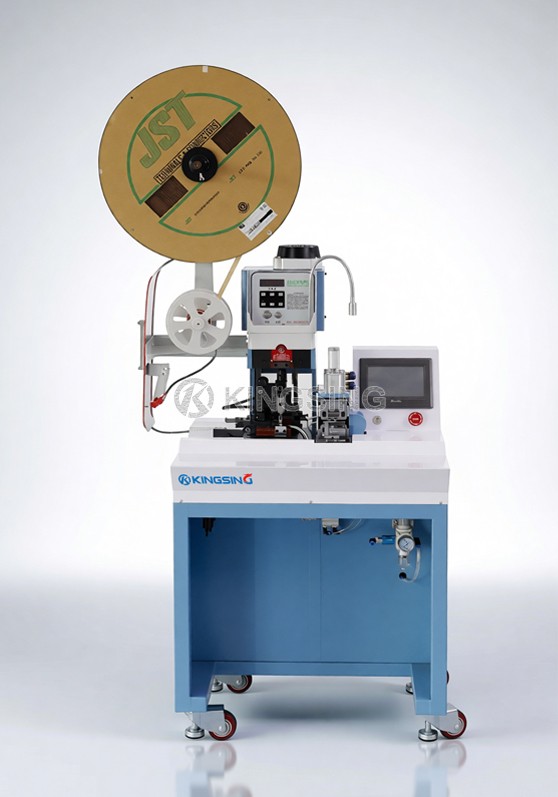

1.This is a sheath wire core wire stripping and crimping machine, which is specially designed for processing the core wire of multi-core sheathed wires, and is also suitable for processing side-by-side wires that have been pre-separated. It supports up to 20 cores of sheathed wires or 20Pin side-by-side wires. The operator needs to manually put the core wire into the positioning jig, and the machine can automatically complete the core wire trimming, stripping, and crimping the terminal, which greatly improves the production efficiency of multi-core wire terminal.

2.One machine can process a variety of different products, just replace the corresponding crimping applicator and positioning fixture. The crimping applicator adopts a standard OTP clamping applicator, which supports quick applicator replacement. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be called out with one key when switching products. The machine is also equipped with an automatic paper winder, terminal strip cutting and waste suction device, which can keep the working environment clean.

Download: (1)

Applicable wire: sheathed core wire, flat wire, double wire

Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Core wire outer diameter: Φ0.6~3.3mm

Number of core wires: up to 12 cores (more than 12 cores can be processed in multiple times)

Maximum number of Pins for flat wire: 20Pin

Outer sheath stripping length: ≥25mm

Flat wire split wire length: ≥25mm

Core wire stripping length: ≤20mm

Applicable terminal type: horizontal feed terminal or straight feed terminal

Terminal machine output: 2T

Crimp stroke: 30mm

Control system: PLC

Operation interface: 7-inch color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 118kg

Dimensions: 690*450*1250mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
