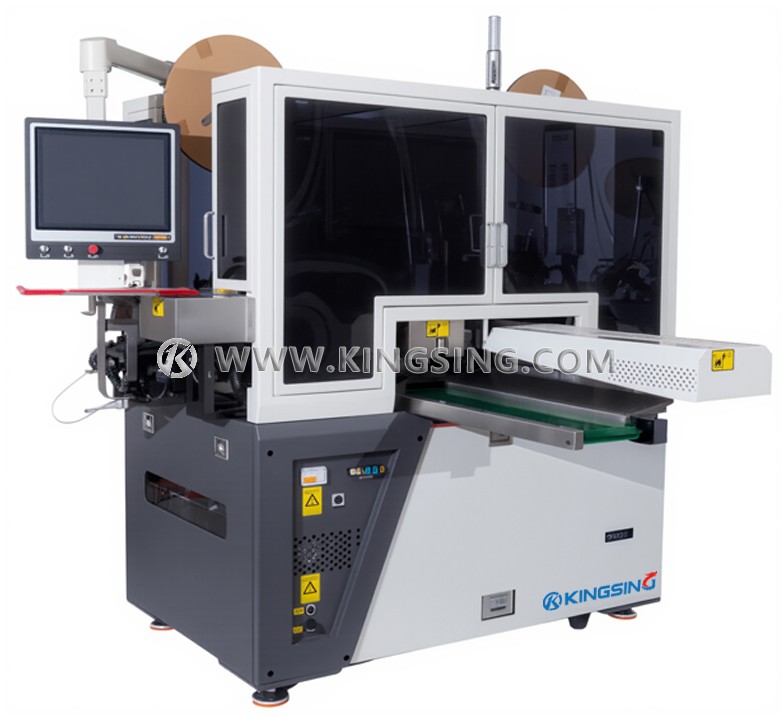

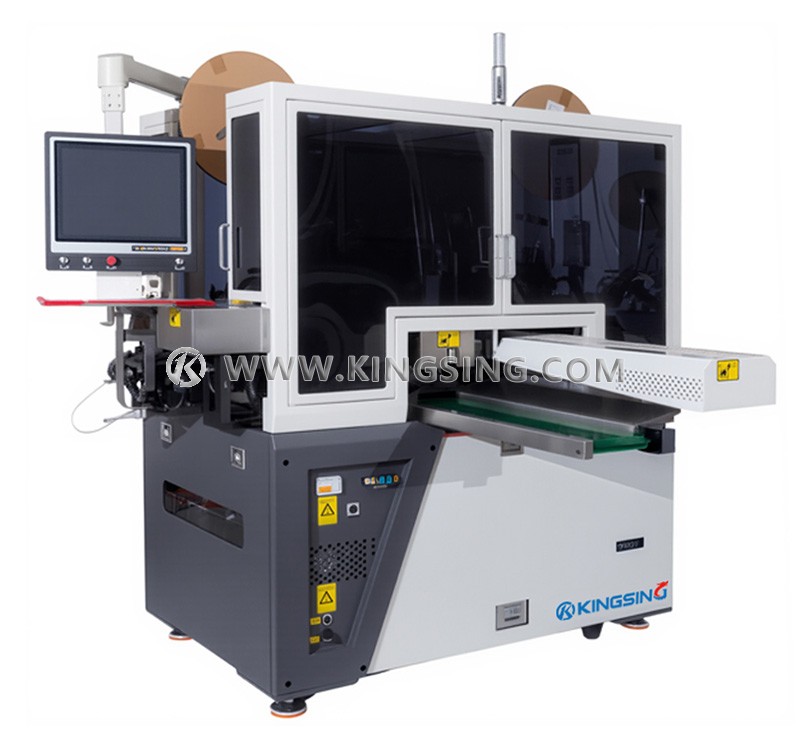

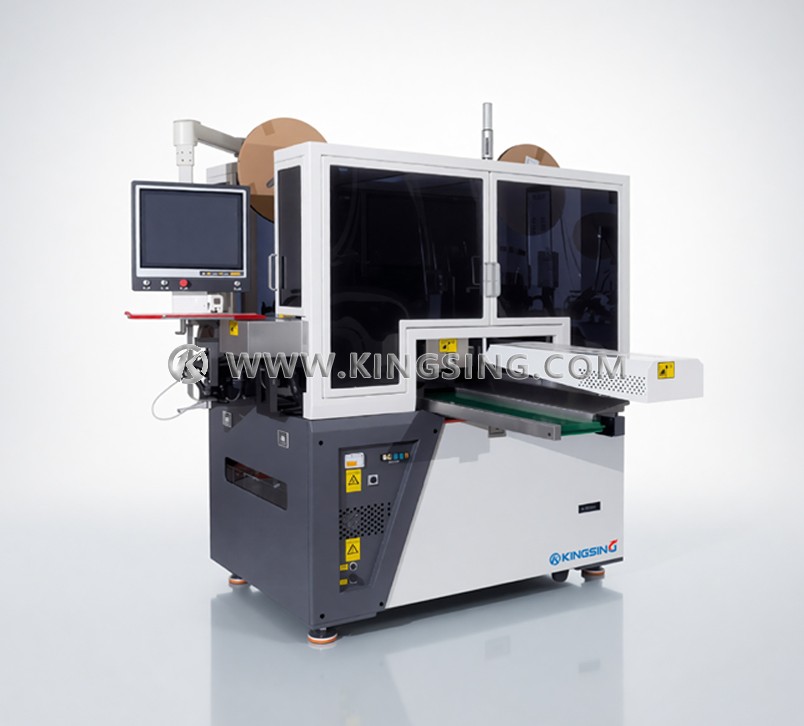

Wire Crimping Tinning and Housing Insertion Machine

  • Model:KS-A213H
  • Net. Weight:
  • Dimension:
  1. This is a multi-functional fully automatic housing insertion crimping machine, which not only supports double-sided crimping terminals and insertion into housings, but also supports single-side crimping terminals and insertion into the other side of the housing for twisting and tinning. Each functional module can be turned on or off freely in the program. For example, the housing insertion function on one side can be turned off, so as to realize crimping terminals on one side and housing insertion on the other side only crimping terminals.The whole machine adopts the concept of flexible design. One machine can process many different products. When replacing the terminal, it only needs to replace the corresponding crimping applicator, vibrating plate feeding system and corresponding penetration fixture.

  2. This machine works by feeding multiple wires at the same time. It supports 2~12 wires feeding at the same time. Multiple wires simultaneously complete the actions of cutting, stripping, crimping, and inserting into the housing. The housing is automatically fed through the vibrating plate. Greatly improved production efficiency. For housing with a smaller width, multiple groups of wires can be processed at the same time to double the production capacity.

  3. The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and translation are all driven by high-precision Mitsubishi servo motors. The crimping machine is integrally formed with nodular cast iron. The whole machine has strong rigidity and stable crimping height. In addition, a crimping force monitor can be selected to monitor the crimping force curve change of each crimping process in real time, and it can automatically alarm and stop when the crimping force is abnormal. A visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality.

  4. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time.


Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Wire type: electronic wire or flat wire

Number of incoming wires: 2~12 (can be customized)

Terminal type: 1.0, 1.25, 2.0, 2.54, etc.

Housing width: ≤45mm (can be more than one, total width ≤45mm)

Cutting length: 40~1000mm (length can be customized according to requirements)

Stripping length: ≤9mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2.5T

Crimping stroke: 30mm (40mm stroke model can be customized)

Operation interface: 10-inch color touch screen

Production efficiency: 450~600 pieces/hour (200mm, 10Pin)

Air pressure: 0.5~0.8Mpa

Power Rating: 2500W

Power supply: 220V 50/60Hz (110V can be customized)

Dimensions: 1500*1100*1550mm

Optional configuration: safety shield, crimping force monitor, visual inspection system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
