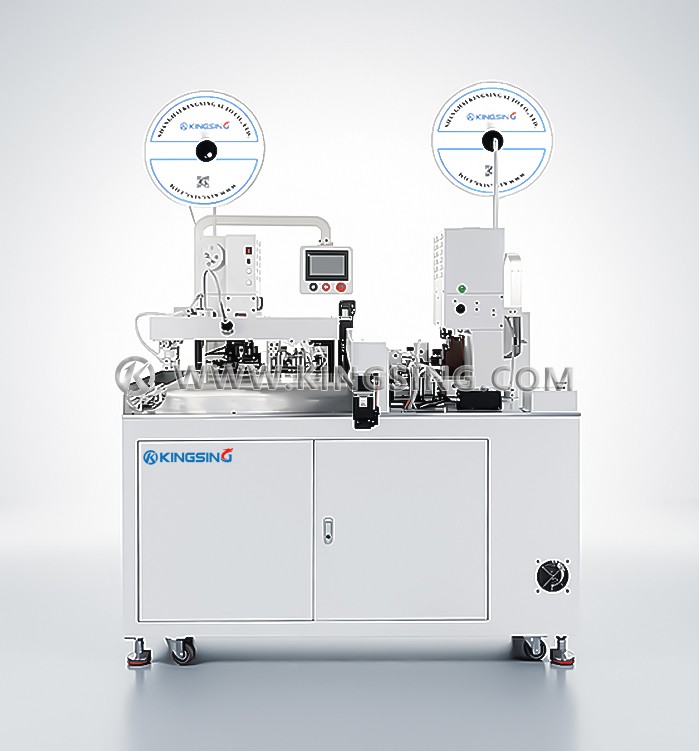

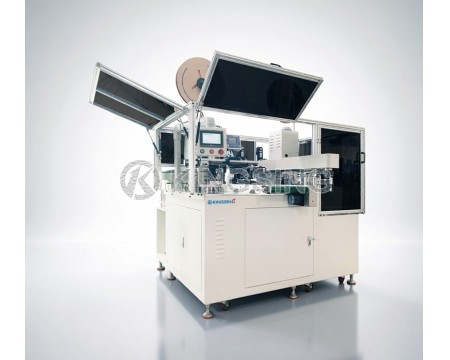

High Speed Wire Stripping Crimping and Housing Inserting Machine

  • Model:KS-A291H
  • Net. Weight:
  • Dimension:

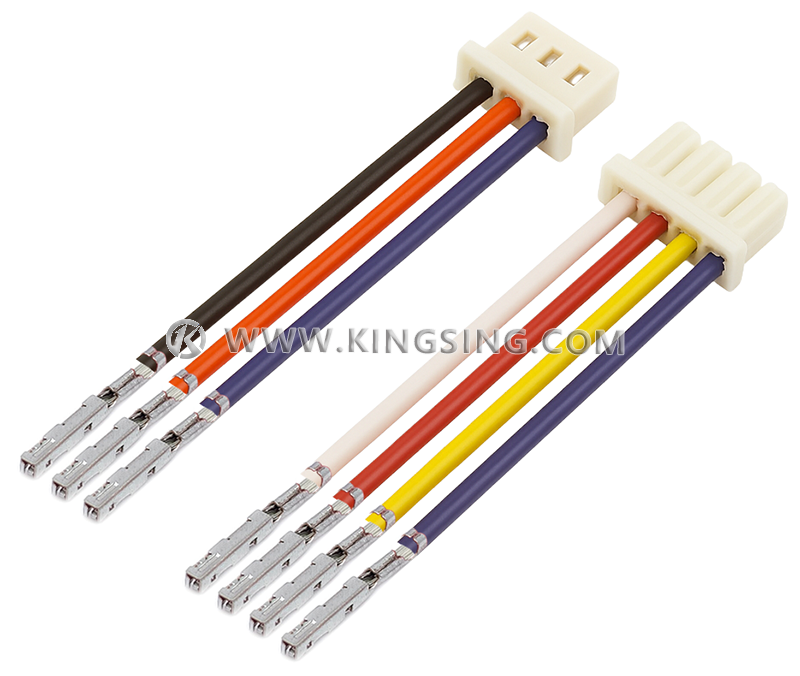

  1. This is a multi-wire type automatic double-head crimp terminal single-sided housing insertion machine, which integrates functions such as wire cutting, wire stripping, double-sided crimping terminals, and single-sided housing insertion. The housing is automatically fed through the vibrating plate. This machine works by feeding multiple wires at the same time. It supports 2~12 wires feeding at the same time. Multiple wires can simultaneously complete the actions of cutting, stripping, crimping terminals, and inserting housings, which greatly improves the production efficiency. For housings with smaller widths, multiple groups of wires can be processed at the same time, doubling the production capacity.

  2. The whole machine adopts the concept of modular and flexible design. One machine can easily process a variety of different products. Each functional module can be opened or closed freely in the program. For example, when the function of housing insertion is turned off, it can be used as an ordinary double-sided automatic crimping machine.When replacing terminals, it is only necessary to replace the corresponding crimping applicators, vibrating plate feeding system and corresponding inserting jigs. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. This machine uses a translation mechanism to replace the traditional rotation mechanism. The wire is always kept straight during the processing process, and the positioning is accurate, which effectively solves the instability problem caused by the bending of the wire, and can easily handle various high-standard wire processing.

  4. The crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time. When the crimping force is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard crimping machine is driven by a variable frequency motor, and a servo crimping machine can also be selected.

  5. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Wire type: electronic wire or flat wire

Number of incoming wires: 2~12 (or 2~12 rows)

Terminal type: 1.0, 1.25, 2.0, 2.54, etc.

Housing Width: ≤45mm (can be more than one, total width ≤45mm)

Cutting length: 40~800mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Production efficiency: 600~800 pieces/hour (200mm, 10Pin)

Air pressure: 0.5~0.8Mpa

Power Rating: 2500W

Power supply: 220V 50/60Hz (110V can be customized)

Dimensions: 1700*1900*1600mm

Optional configuration: long wire conveyor belt, safety shield, crimping force monitor, visual inspection system, computer industrial control system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
