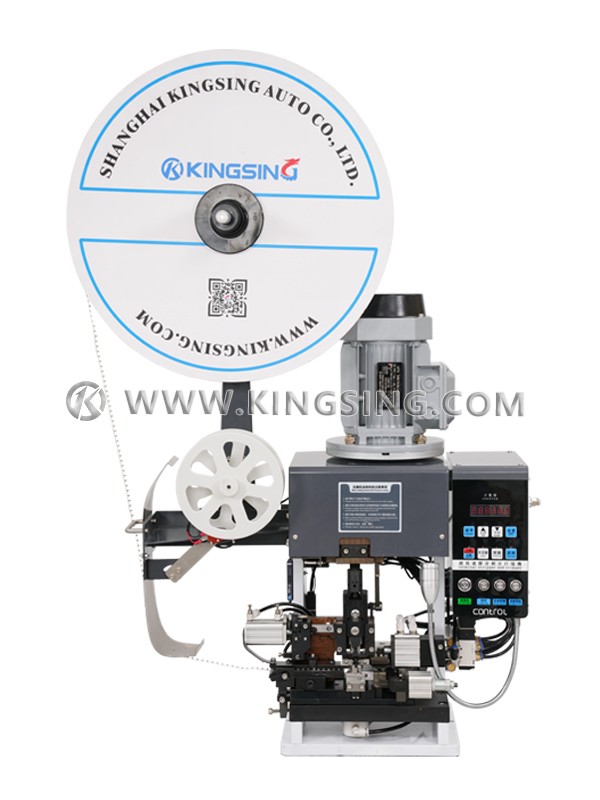

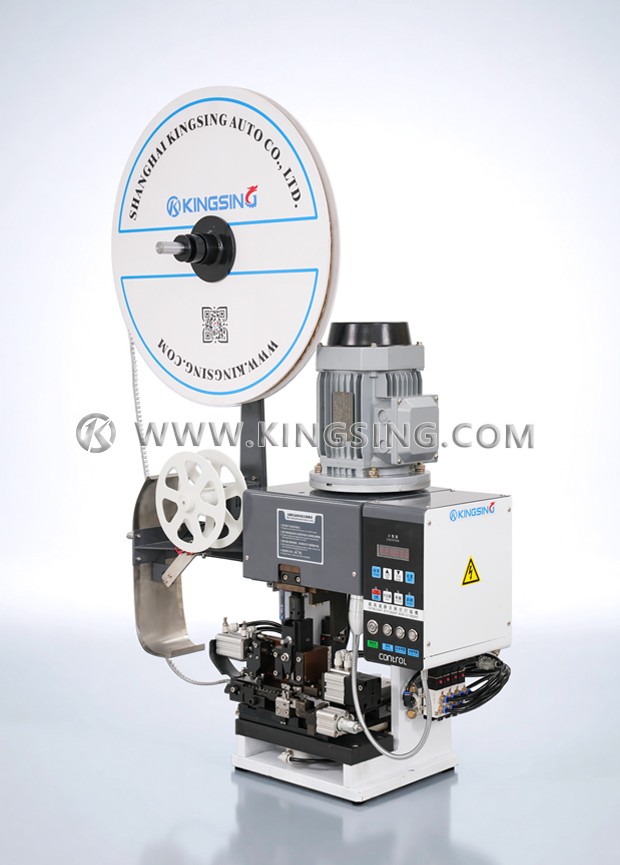

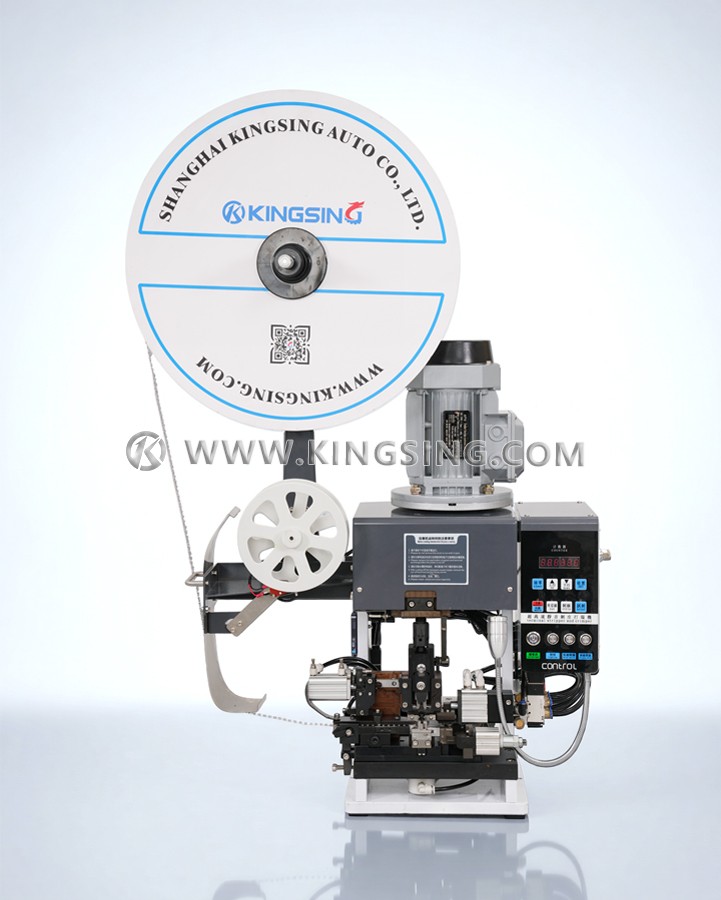

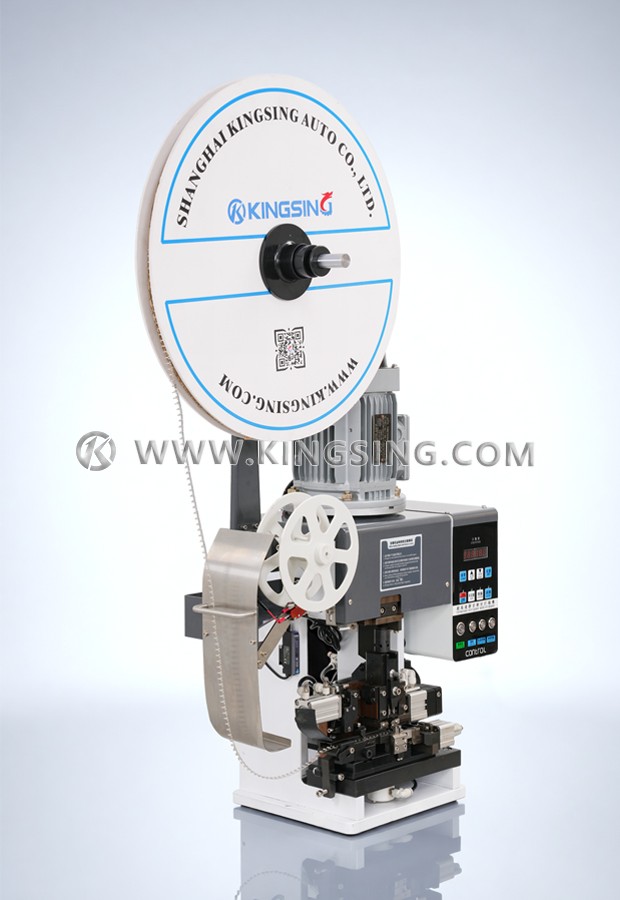

Wire Stripping and Cross Feed Terminal Crimping Machine

  • Model:KS-T300S
  • Net. Weight:
  • Dimension:

1、This is a multifunctional wire stripping and crimping machine with a crimping force of up to 3T. It can crimp various large cross-feed terminals. One machine can crimp a variety of different terminals, just change the corresponding applicator. The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal. Combining the stripping and crimping processes can effectively reduce labor costs and improve product consistency, especially for stripping and crimping terminal operations for sheathed core wires.

2.This machine adopts frequency conversion motor for precise control, and has the characteristics of low noise, low power consumption, fast speed and high precision. The crimping force can reach 3T, and the wire rod can be processed up to 1.5mm2. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG16~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Crimping machine output: 3.0T

Applicator stroke: 35mm

Applicable terminals: cross-feed terminals (double strip terminals, terminals with strips in the middle can be customized)

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60Hz

Power rating: 1100W

Net weight: 85kg

Dimensions: 500*420*700mm


Optional features:

1.Wire end cutting: Automatically cut the wire ends, the stripping length is more accurate, and the error of manual unwinding is eliminated.

2.Inductive start: Inductive start is used instead of foot switch start, and it starts automatically after the wire is put in place.

3.Two-wire crimping: designed for 2-core sheathed wires, some small terminals can crimp two terminals at one time.

4.Special terminals: such as double strip terminals, terminals with strips in the middle, etc. can be customized by non-standard.

5.Crimpingforce monitoring: monitor the crimping force curve of each crimping process in real time, and automatically alarm when the crimping force is abnormal.


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
