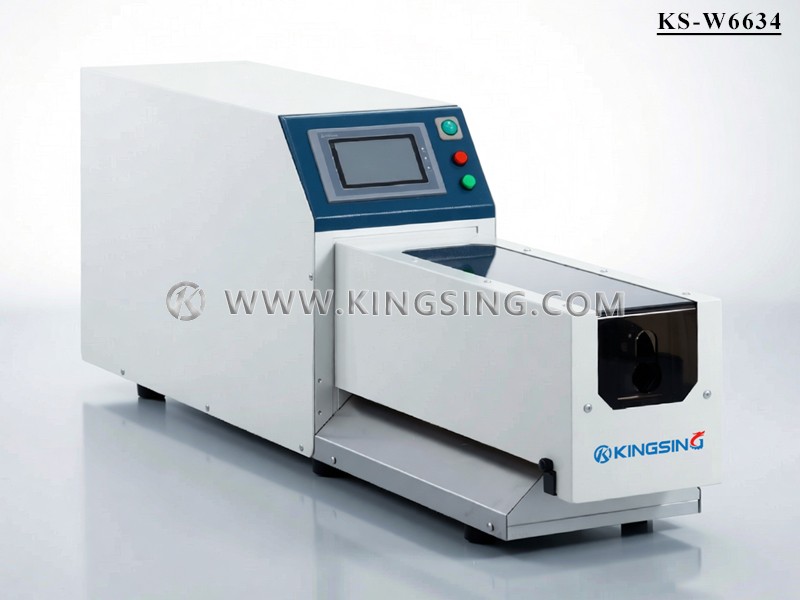

Automatic Rotary Blade Cable Stripper

  • Model:KS-W66 series
  • Net. Weight:
  • Dimension:

1、This series of coaxial cable stripping machines includes 5 sub-models, which are suitable for processing various coaxial cables, automotive cables, medical cables, high temperature wires, new energy wires, etc. It uses 4 pieces of high-precision tungsten steel cutters to rotate and strip wires, which is more advantageous when stripping thick wires. The maximum outer diameter can reach 24mm, and the maximum stripping length can reach 200mm. The rotating blade can cut the stripping position 360 degrees, the stripping mouth is smooth, the stripping length is precise, the cutting accuracy can reach 0.01mm, and the inner layer will not be damaged.

2、Color touch screen operation interface, parameter setting is intuitive and easy to understand. It can be stripped in up to 9 layers, and the cutting depth and stripping length of each layer can be freely set in the program. For example, when stripping a coaxial cable, the outer layer, braided layer, and core wire can be stripped to different lengths. Up to 99 groups of programs can be saved, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding parameters can be called out with one key without mechanical adjustment.

Download: (1) (2) (3)
ModelKS-W6620KS-W663KS-W6632KS-W6633KS-W6634
Applicable wire diameterΦ2~23mmΦ2~23mmΦ3~23mmΦ3~23mmΦ3~23mm
Maximum stripping length150mm200mm95mm150mm350mm
Production efficiency(depends on the wire)300~800Pcs/h300~800Pcs/h400~800Pcs/h400~800Pcs/h300~500Pcs/h
Rated power630W
800W
600W
630W
630W
Net weight
53kg56kg45.5kg53kg62kg
Dimensions920*220*400mm1000*225*400mm680*240*400mm920*220*400mm1180*236*400mm

Number of blades: 4 pieces

Program minimum setting unit: 0.01mm

Maximum stripping layers: 9 layers

Program memory function: up to 99 groups of programs can be saved

Working voltage: AC 220/110V 50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
